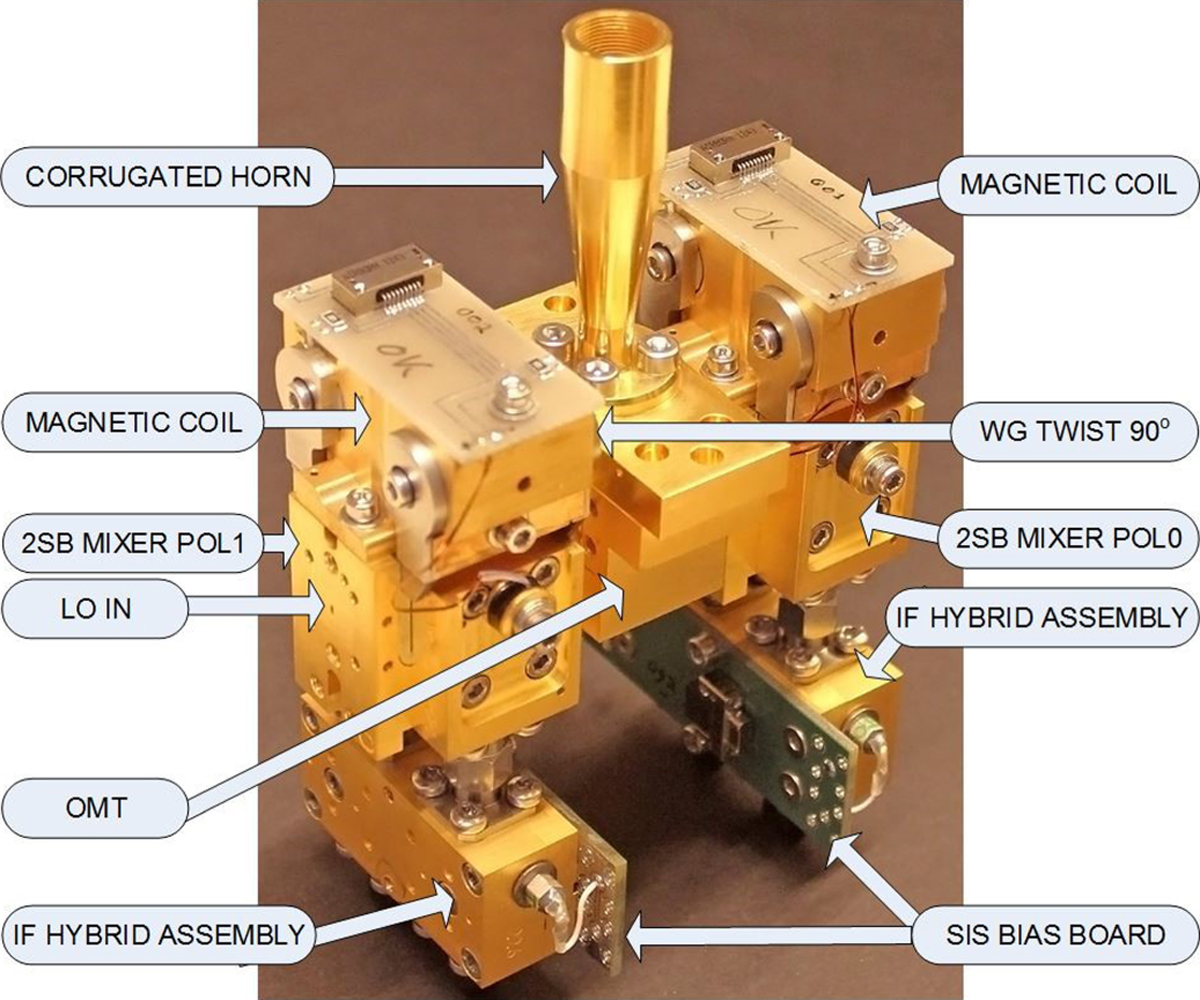

Fig. 3


ALMA Band 5 mixer assembly built by GARD. Corrugated horn, OMT and the two 2SB mixers with their associated IF hybrids are integrated in a very compact modular unit allowing effective use of the very limited space inside the Band 5 cartridge, next to the M2 mirror.
