Fig. 2

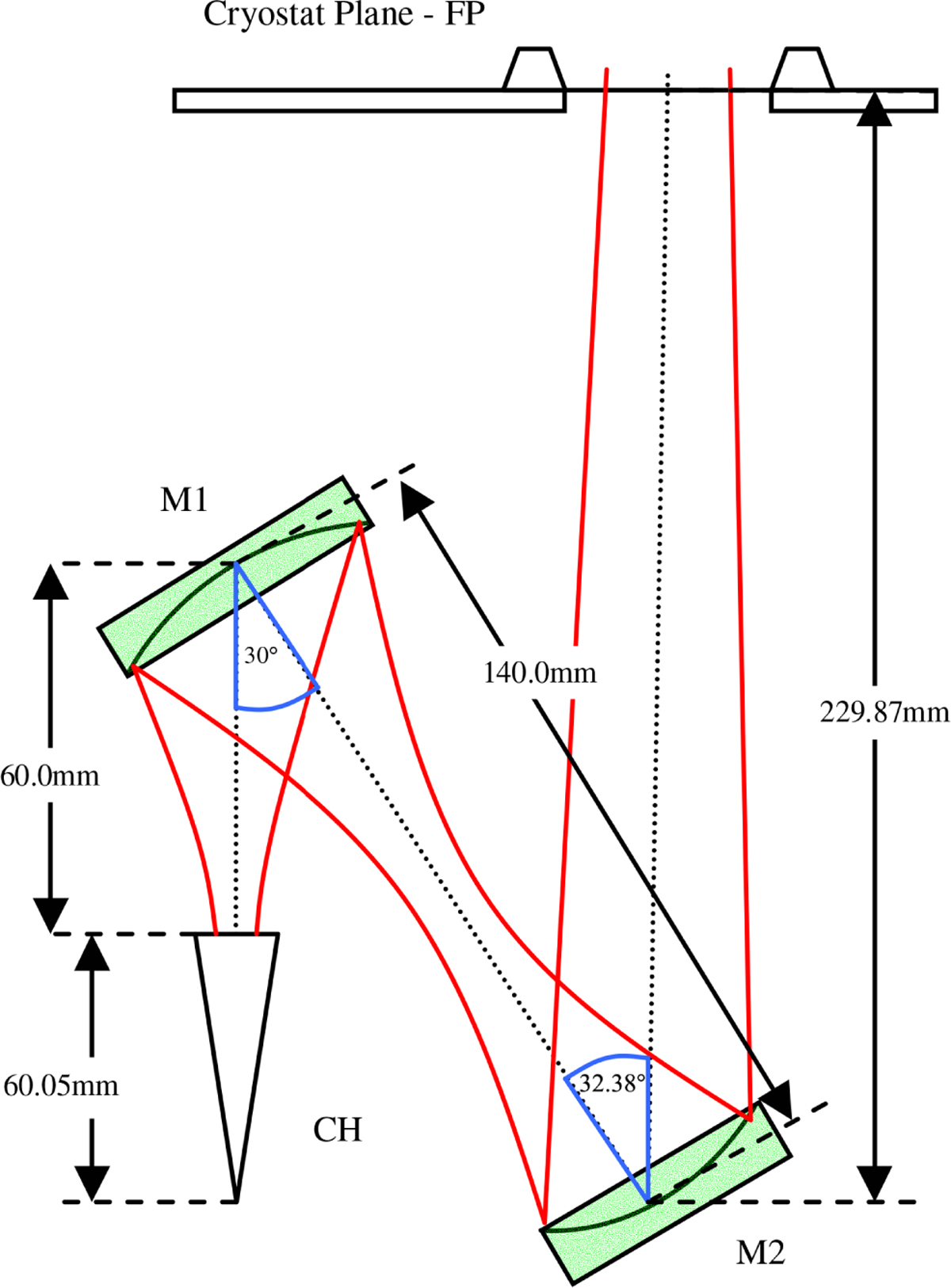

ALMA Band 5 optical layout, not to scale. Optics includes two ellipsoidal mirrors, M1 and M2, and a circular corrugated horn (CH). The design provides frequency independent illumination of the secondary mirror with the edge-taper of about –11.5 dB (Whale et al. 2008).
