Dissipative instabilities in a partially ionised prominence plasma slab
II. The effect of compressibility
^{1}
Solar Physics and Space Plasma Research Centre (SP 2RC), School of Mathematics and Statistics, The University of Sheffield,
Sheffield,
S3 7RH, UK
email: jfmather1@sheffield.ac.uk
^{2}
Department of Astronomy, Eötvös Loránd University,
Plázmány P. sétány 1/A,
1117
Budapest, Hungary
Received:
2
May
2017
Accepted:
11
November
2017
This study deals with the dissipative instability that appears in a compressible partially ionised plasma slab embedded in a uniform magnetic field, modelling the state of the plasma in solar prominences. In the partially ionised plasma, the dominant dissipative effect is the Cowling resistivity. The regions outside the slab (modelling the solar corona) are fully ionised, and the dominant mechanism of dissipation is viscosity. Analytical solutions to the extended magnetohydrodynamic (MHD) equations are found inside and outside of the slab and solutions are matched at the boundaries of the slab. The dispersion relation is derived and solutions are found analytically in the slender slab limit, while the conditions necessary for the appearance of the instability is investigated numerically for the entire parameter space. Our study is focussed on the effect of the compressibility on the generation and evolution of instabilities. We find that compressibility reduces the threshold of the equilibrium flow, where waves can be unstable, to a level that is comparable to the internal cusp speed, which is of the same order of flow speeds that are currently observed in solar prominences. Our study addresses only the slow waves, as these are the most likely perturbations to become unstable, however the timescales of the instability are found to be rather large ranging from 10^{5}–10^{7} s. It is determined that the instability threshold is further influenced by the concentration of neutrals and the strength of the viscosity of the corona. Interestingly, these two latter aspects have opposite effects. Our numerical analysis shows that the interplay between the equilibrium flow, neutrals and dispersion can change considerably the nature of waves. Despite employing a simple model, our study confirms the necessity of consideration of neutrals when discussing the stability of prominences under solar conditions.
Key words: Sun: filaments, prominences / Sun: corona / Sun: oscillations / waves / plasmas instabilities
© ESO 2018
1 Introduction
Prominences are some of the most dynamical and, therefore, scientifically challenging structures that occur in the solar atmosphere. Suspended above the chromosphere and situated within the coronal plasma, they are made up of dynamical threads tracing the magnetic field lines that outline their structure. Highresolution Hα observations within the past few decades have shown a more precise structure for these fibrils, with an average width of 200 km and heights ranging between 3500–28 000 km (e.g. Heinzel & Anzer 2006; or Lin 2011, for more comprehensive reviews). Even though they are surrounded by coronal plasma, prominences have chromospheric temperatures, with lifetimes spanning from a few hours to a day in the case of active region prominences and three to 300 days in quiescent prominences (Parenti 2014). The fact that these structures do not collapse under gravity may seem to be surprising at first, but their stability is due to support from the magnetic tension forces, working against gravity.
Due to their chromospheric origin, prominences have a relatively low temperature compared to the surrounding coronal plasma, with temperatures ranging between 7500–9000 K (see e.g. Engvold 1998; Lin et al. 2005a; Okamoto et al. 2007). These low temperatures mean the plasma is likely only partially ionised, with the ratio of protons to neutral Hatoms in the range of 0.2–0.9 (Ruzdjak & TandbergHanssen 1990). Therefore a onefluid description may not be appropriate and multifluid models can describe the associated physics better. With the collisions between ions and neutrals, a resistivity acting only on perpendicular currents is introduced (Braginskii 1965), namely the Cowling resistivity that is several orders of magnitude larger than the electrongenerated Spitzer resistivity.
Instabilities within prominences are widely observed, the most obvious example being the turbulent eddies that are seen at the interface between the corona and prominence, which may be caused by instabilities associated with wave phenomena (Ryutova et al. 2010; Berger et al. 2010). One explanation of these could be the KelvinHelmholtz instability (see, e.g. Nakariakov & Roberts 1995; TerraHomem et al. 2003; Zaqarashvili et al. 2010) that occurs when there is a shear flow between two different plasma layers (in relation to prominences see e.g. Berger et al. 2008). A shear flow can also lead to resonant flow instabilities, which have been explained as a type of negative energy wave instability occurring at lower shear flow velocities than the KelvinHelmholtz instability (see, e.g. Tirry et al. 1998). The RayleighTaylor instability, caused by heavier fluid sinking into lighter fluid under the force of gravity, is another instability that has been theorised to occur in prominences (see e.g. Ryutova et al. 2012). Hillier et al. (2012) have suggested that the RayleighTaylor instability generates some of the upflows observed in prominences.
Being such dynamic objects, plasma flows are ubiquitous in prominences. Bulk flows of around 10–70 km s^{−1} are observed within quiescent prominences (Schmieder et al. 1984). Berger et al. (2008) observed, in both the Ca II Hline and Hα band passes of Solar Orbiter Telescope (SOT), turbulent upflows in quiescent prominences of an approximate constant speed of 20 km s^{−1}. Active region prominences can exhibit even larger flows that can be up to a maximum of 200 km s^{−1}. However, most of the observed flow speeds do not reach the threshold for the KelvinHelmholtz instability to occur. Therefore, other instabilities must be considered that require a lower flow threshold.
The concept of negative energy waves (and the associated instabilities) has been studied previously in a solar physics context by many authors (e.g. Ruderman et al. 1996; Joarder et al. 1997; Tirry et al. 1998; TerraHomem et al. 2003; Ballai et al. 2015, amongst others). This instability, again, occurs in the presence of shear flow, but some form of dissipation must be present in the system to account for this energy loss. Generally, the instability appears when the flow is great enough that the direction of propagation of the “backward propagating” wave changes. This tends to happen at flow velocities lower than those required for the KelvinHelmholtz instability (see, e.g. Ruderman & Wright 1998).
Ballai et al. (2015) considered the dissipative instability in the case of an interface between a viscous and incompressible coronal plasma and a resistive (Cowling resistivity), incompressible and partially ionised prominence plasma. Ballai et al. (2017) investigated a similar problem but now modelling the plasma as a slab, introducing dispersion. Both investigations found that, with the increase in the fraction of neutrals present, the value of the threshold velocity for the dissipative instability to occur increased. The present study is a natural extension to Ballai et al. (2017) and generalisation to this problem by including compressibility with the aim to investigate how this affects the threshold of the dissipative instability. With this addition, we can study these instabilities in a more realistic solar context.
The paper is set out as follows: in Sect. 2, we present the equilibrium background and governing equations. Solutions governing the dynamics inside and outside the waveguides are given, along with the necessary boundary conditions. In Sect. 3, the dispersion relation for the symmetric sausage waves is derived and the slender slab limit is taken for both the real and imaginary part of the frequency. In Sect. 4, analysis of the slender slab limit is completed and numerical solutions for the full dispersion relation are obtained. In Sect. 5, we summarise our results and conclude our research.
2 Equilibrium
We have considered a magnetised plasma slab of width 2z_{0} with boundaries at z = 0 and z = 2z_{0} (see Fig. 1), situated between to semiinfinite planes. The magnetic field in the three regions is uniform and parallel with the xaxis such that, , where is the unit vector in the xdirection. A uniform background flow is present within the slab environment, parallel to the xaxis, that is . The equilibrium temperatures, densities and pressures are assumed to vary on a scale that is much larger than the wavelength of the waves studied and are therefore considered constant functions in z, that is (1)
where the indices 0 and e denote internal and external quantities of the slab, respectively, and T_{l}, c_{sl}, v_{Al}, c_{Tl}, u_{l} (l = 0, e) are the temperature, sound speed, Alfvén speed, tube speed (), and background equilibrium bulkflow speed inside the slab.
In our model, we have approximated the entire prominence by a slab and, therefore, the solar corona constitutes the external environment. Given the high probability that prominences are of chromospheric origin, we assumed that their temperature does not reach the threshold where hydrogen is fully ionised. In contrast, the surrounding corona, with its million degree temperature, is fully ionised. In partially ionised plasmas, the concept of transport mechanisms has to be treated differently, as the way momentum and energy is transported and dissipated is distinct from the formalism used in fully ionised plasmas. The reason for this is that the presence of neutrals and the collisions between heavy particles may change the nature and magnitude of these mechanisms (for a detailed discussion on the possible transport mechanisms in partially ionised plasmas see, e.g. Khodachenko et al. 2004; or Zaqarashvili et al. 2011). Here, we have assumed that the ionneutral collisional frequency is much larger than the harmonic motions of waves. Therefore, the dynamics in the partially ionised plasma can be described within the framework of a singlefluid MHD. In addition, we assumed that there is strong thermal coupling between the ions, electrons a neutrals. Among all possible dissipative mechanisms, we concentrate on the processes that appear in the generalised Ohm’s law, in particular, we deal with the classicaland Cowling resistivity. The effects of these two resistivities are very different. The classical Spitzer resistivity isdue to electrons and generates the dissipation of currents along magnetic field. Contrastingly, the Cowling resistivity isdue to ions and creates a magnetic resistivity of currents that flow perpendicular to the ambient magnetic field.

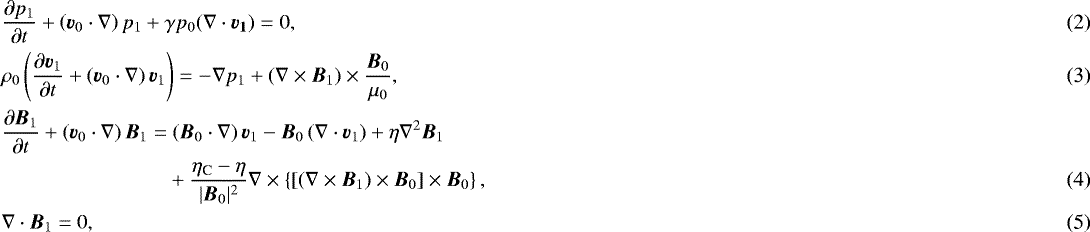

With these considerations, the dynamics in the partially ionised prominence are given by the system of linearised MHD equations
where all quantities with subscript 1 denote small perturbations of background quantities. We note that the diamagnetic current that would be present in Eq. (4) is neglected due to its weak dissipation and the fact we have considered a low plasmabeta. Here, ρ_{0} = ρ_{i} + ρ_{n} so that the total background density, ρ_{0}, is always constant, with the ion density ρ_{i} and the neutral density changing, depending on how ionised the plasma is. For a completely ionised plasma ρ_{i} = ρ_{0} and for a fully neutral plasma ρ_{n} = ρ_{0}.
We assume all perturbations to be of the form
where is the amplitude of perturbations and the frequency, ω, may be a complex quantity. Since the plasma is unbounded in the x direction, we Fourier analyse the perturbations. In addition, instead of velocity components in the momentum Eq. (3), we use the Lagrangian displacement,
Equations (2)–(5) along with Eq. (1) can be then reduced to a second order differential equation governing the Lagrangian displacement in the zdirection (6)
where the quantity is the magnetoacoustic parameter, is the modified Alfvén speed, while is the associated cusp speed. Here, is the Alfvén speed and is the sound speed of the internal medium, where γ = 5∕3 is the adiabatic index and μ_{0} is the magnetic permeability of free space. In the above equation, Ω = ω − ku_{0} is the Dopplershifted frequency.
The solutions inside the slab must be matched, at the boundaries of the slab with the solutions outside the slab. These boundaries must be stable to perturbations, that is any displaced fluid element on (or near) the boundary will not be advected by perturbations. This can be achieved only by assuming that the transversal component of the Lagrangian displacement is continuous and any other stresses that act in the perpendicular direction to the boundaries are matched by stresses on the other side of the boundary. That is why it is essential to use the ReynoldsMaxwell stress tensor to calculate the transversal stress component that is given by (7)
Let us now consider the dynamics in the surrounding coronal plasma. Due to the high temperatures of the corona ( >10^{6} K), the plasma is fully ionised. Following on from the work by Ballai et al. (2017), we consider that the dominant dissipative mechanism that modifies the amplitude of waves is the viscosity. Given that the dynamics in the solar corona are driven mainly by magneticforces, the viscosity is anisotropic and its value is given by the Braginskii’s tensor present in the momentum equation. This tensor has five components, but by far the leading term (by about five orders of magnitude) is the first component (also called compressional viscosity) that is due to ions (see, e.g. Braginskii 1965; Ruderman et al. 1996). Therefore, the dynamics in the solar corona is described with the help of the linearised MHD equations
where b = B_{0}∕B_{0} is the unit vector in the direction of the equilibrium magnetic field, ν = η_{0}∕ρ_{e} is the kinematic viscosity, and η_{0} is the viscosity coefficient and its approximative value is given by
where T_{e} is the temperature of the external medium, k_{B} is the Boltzmann constant, τ_{p} is the protonproton collision time, and m_{p} is the proton mass. For typical coronal values we can obtain that η_{0} ≈ 5 × 10^{−2} kg m^{−1} s^{−1} (see, e.g. Hollweg 1985).

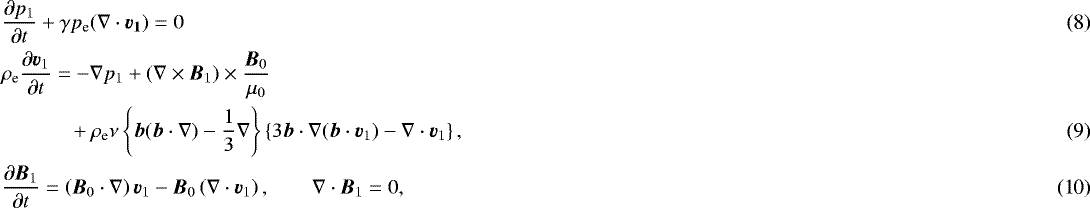

In a similar way to the prominence plasma derivation, the MHD equations can be reduced to a single equation that describes the evolution of the transversal component of the Lagrangian displacement as (11)
Here, is the Alfvén speed, is the sound speed of the external medium and is the external tube speed. In order to ensure that the interface between various regions is stable, the stress across the interfaces must be continuous, which now in the external region takes the form (13)

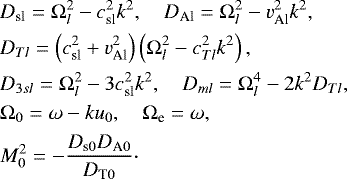

where ξ_{z} is the solution of Eq. (11). Solving Eqs. (6) and (11) subject to the requirement that ξ_{z} is finite as z →∞, gives the following general solutions within the slab and outside of the slab: (14)

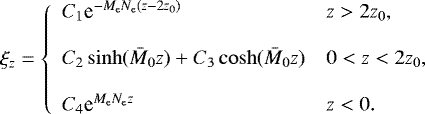

The constant coefficients C_{1}…C_{4} can be determined after matching the solutions at the two boundaries. The general form of the solutions given by Eq. (14), together with the governing equations inside and outside the slab will be used next to derive the dispersion relation for waves propagating inside the partially ionised magnetic slab.
Fig. 1

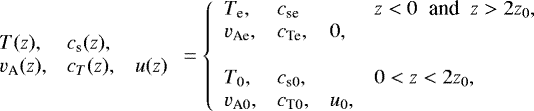

Equilibrium configuration for the magnetic slab and its surrounding magnetic environment. The equilibrium flow inside the slab points in the positive xdirection.

Open with DEXTER
3 Dispersion relation
The properties of waves propagating in the magnetic slab modelling the partially ionised prominence plasma can be studied with the help of the dispersion relation, that is the relation that gives the eigenvalues of the equations derived earlier in the presence of the boundary conditions that need to be imposed on the interfaces separating the two different media. According to the standard procedure (see e.g. Ruderman et al. 1996), for a tangential discontinuity like in the present study, we require that the normal components of the displacement and the stress are continuous, that is their jump across the interface is zero.
Depending on the choice of the solution inside the slab ( tanh or coth ) we find symmetric or antisymmetric modes, also labelled as sausage and kink modes, analogue to the fully ionised case, see e.g. Edwin & Roberts (1982). In what follows, we concentrate on sausage modes, while the derivation of kink modes is similar.

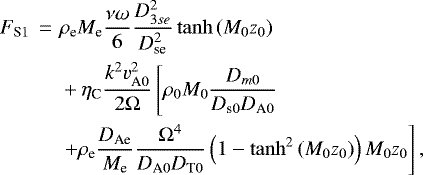

After equating the values of the displacements (imposing the kinematic boundary conditions) and stresses at z = 0 and z = 2z_{0}, we obtain the dispersion relation describing the propagation of sausage modes given by (considering large magnetic and viscous Reynolds numbers) (15)
is the real part of the dispersion relation, while (17)
is the imaginary part of it. We note that Eq. (15) was derived using a perturbation method considering terms multiplied by either ν^{2} or as negligibly small (as we assumed large Reynolds numbers). In the above equations the quantities have the following notation (for l = 0, e) (18)
In general, the solutions of the dispersion relation Eq. (15) are complex quantities (here, we assume thatchanges in the amplitude of waves are temporal effects, that is we assume that the frequency of waves is a complex quantity, while we set the wavenumber of waves as a real quantity). As the nonideal (F_{S 1} ) part of Eq. (15) is assumed to be small compared to the ideal part, that is F_{S 0} ≫ F_{S1}, the frequency of waves can be approximated as ω = ω_{0} + iω^{′}, where ω_{0} is the solution of F_{S0}(ω_{0}, k) = 0 and ω^{′} is the imaginary part of the frequency. By expanding Eq. (15) around the solution of F_{S 0} (ω_{0}, k) = 0 using a Taylor series, or applying the Cairns criterion (Cairns 1979), we find that ω^{′} may be approximated by (19)
Analytic progress in finding the solution to Eq. (15) is still difficult as the equation is highly transcendental. In the long wavelength approximation (slender slab), both Eqs. (16) and (17) are considered in the limit kz_{0} → 0, supposing that M_{i}z_{0} → 0 (Edwin & Roberts 1982).

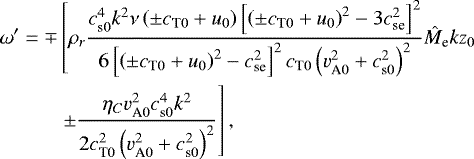

The method of dominant balance is then used to find a regular perturbation series representation of the solution. In this limit, the real part of the dispersion relation admits wave solutions that may, in general, be either surface (M_{i} > 0) or body (M_{i} < 0) modes depending on values of background quantities (Edwin & Roberts 1982). In our study, we use the term pseudobody for one of the modes that has a peculiar behaviour inside the slab, in the sense it does not have a spatially oscillatory structure in the zdirection but is a body mode as it satisfies the condition M_{i} < 0 (for more information on these modes see, e.g. Zhugzhda & Goossens 2001; Ruderman 2005; Erdélyi & Fedun 2006, 2007). In addition, there are also spatially oscillatory bodymodes inside the slab which we term n = 1, 2... body modes. These modes have nodes inside the slab. In the slender slab limit, up to first order in and kz_{0} for Eqs. (20) and (21), respectively, the real solutions of the dispersion relation are (20) (21)
where the upper signs describe the forward propagating waves, while the lower ones describe the backward propagating waves. We note that the first solution, given by Eq. (20), only corresponds to a surface wave. Whereas the second solution, given by Eq. (21), may be either slow or fast depending on the choice of the background. This solution is considered as the pseudobody mode for the long wavelength approximation, as noted previously. In the above relation the parameter is defined as (22)
Obviously the quantity has to be positive and this will impose a restriction on the domain of flows where our study remains valid. A simple analysis would reveal that waves will be able to propagate in the slab provided u_{0} ±c_{T0} < c_{Te} or
Both Eqs. (20) and (21) show that waves are dispersive, that is their frequency depends on the wavelength of waves in a nonlinear way. Based on the leading order terms of the two equations, we can consider that the first equation (Eq. (20)) describes the evolution of fast waves, while slow magnetoacoustic modes are described by the second expression (Eq. (21)). For the case considered in the current study, we are going to investigate the mode that has the phasespeed approximately c_{T 0} (when u_{0} = 0). We choose this mode over the mode given by Eq. (20) as the phase speed of this mode is affected linearly by the background flow (in the zeroth order approximation) and can thus change its direction of propagation, leading to the dissipative instability mentioned previously. The imaginary part of the frequency that is associated with the wave described by Eq. (21) is given by (23)
where ρ_{r} = ρ_{e}∕ρ_{0} is the relative density of our equilibrium and the Cowling resistivity, η_{C} given by (24)
where m_{n} is the mass of a neutral atom, Σ_{in}= 5 × 10^{−15} cm^{2} is the ionneutral collisional cross section and μ is the ionisation degree of the plasma given by
where ξ_{n} = ρ_{n}∕ρ_{0} is the neutral fraction of the internal plasma. Using the range of ion to neutral H atom number density ratio (ρ_{i} ∕ρ_{n}), 0.2–0.9 given by Ruzdjak & TandbergHanssen (1990), we find a typical range for the ionisation degree μ from 0.65–0.85. In our calculations, we assume that ρ_{0} = 5 × 10^{−11} kg m^{−3}. Using coronal parameters we can estimate the magnetic Reynolds number, R_{m} for this particular setup. Let us define (25)
We use a length scale of approximately 10^{7} m, which is a typical wavelength observed in prominences which tend to be in the range 10^{6} –10^{8} m. Several observational evidences support our choice for typical wavelength, for example Malville & Schindler (1981) reports on observed waves with wavelengths of 3.7 × 10^{7} m, Thompson & Schmieder (1991), MolownyHoras et al. (1997) and Terradas et al. (2002) observed waves in solar prominences with wavelengths 5.0 × 10^{7} m, 2.0 × 10^{7} m and 7.0 × 10^{7} m, respectively (for more examples see Arregui et al. 2012, and references therein). With typical prominence background wave velocities (i.e., the internal Alfvén and sound speeds) of 10^{4} m s^{−1}, the magnetic Reynolds number is then given as: (26)
The sign of the imaginary part of the frequency will determine whether a wave will be damped or amplified due to instabilities. According to the ansatz used in the present paper, ω^{′} > 0 s^{−1} would meanthat the wave is amplified, while waves will be damped in the opposite case when ω^{′} < 0 s^{−1}.
4 Dissipative instability
In what follows, we are going to concentrate on the instabilities that arise due to the coupling between backward propagating waves inside the slab with the counter flow. These modes (for a particular combination of parameters) will have a positive imaginary part of the frequency, leading to an instability contrary to our natural physical intuition. The imaginary part of the frequency describing unstable behaviour is also connected to the dissipative processes.
4.1 The slenderslab limit (kz_{0} ≪ 1)
For the case of a relatively cold chromospheric slab surrounded by hot coronal material with similar magnetic fields the density ratio is small i.e. ρ_{r} ≪ 1. All the characteristic background speeds within the slab are much smaller than outside the slab. Since both plasmaβ values are small, the flows for which we have oscillatory solutions satisfy u_{0} < c_{Te} ∓ c_{T0}. In this limit, the imaginary part of the frequency given by Eq. (23) can be approximated as (27)
where the two signs denote the forward and backward propagating wave. The straightfoward result that is obvious from Eq. (27) is that ω^{′} for the forward propagating wave (corresponding to the upper sign) is always negative, and, therefore, the forward propagating wave is always subject to damping. In contrast, the backward propagating wave (corresponding to the lower sign) is damped only for a particular combination of values, but ω^{′} may become positive for flows that are larger than the critical value (28)
In the absence of Cowling resitivity (η_{C} = 0, i.e. the plasma is fully ionised), the instability occurs at flows speeds equal to c_{T 0}. When neutrals are present in the system (i.e. η_{C}≠0) and the plasma is less ionised, the Cowling resistivity tends to stabilise the system by increasing the threshold where instability can appear. In the limit of an incompressible plasma, (i.e. c_{s 0} →∞), the critical flow speed becomes (29)
and, therefore, modes might become unstable for superAlfvénic flows. Previous studies, for example, by Ballai et al. (2017), pointed out that in the case of sausage modes (see their Fig. 3), the necessary flow to have a dissipative instability was in the region of 30 km s^{−1}. Using the same set of parameters, our Eq. (29) results in a critical flow speed of only 28 km s^{−1}, that is the two studies result in consistent critical values. The difference between the two values of critical flows may arise due to the fact that the value obtained by Ballai et al. (2017) was obtained using numerical analysis, while the value obtained in the present paper is determined analytically. In order to obtain Eq. (29), several approximations were used (e.g. slenderslab limit, dominant balance method), that could account for the small discrepancy between the two values.
It is interesting that in the case of an instability at a single interface the critical value obtained by Ballai et al. (2015) is in the region of 48 km s^{−1}. However, this value cannot be compared physically with our value, since while our discussion is valid in the thin slab approximation (i.e. kz_{0} → 0), the results of Ballai et al. (2015) are valid provided kz_{0} →∞. However, wemay conclude that the dissipative instability in a magnetic slab requires a lower critical flow speed for its development. Therefore the result given in Eq. (28) suggests that once compressibility is taken into account, the plasma can become unstable at lower flow speeds (c_{T0} < v_{A0}; a lower critical flow speed is needed for the dissipative instability to occur), so compressibility tends to destabilise the plasma.
The whole partially ionised prominence is modelled here by a slab that is surrounded by the fully ionisedcorona as specified earlier. In general, the width of prominences varies between around 1–30 Mm (Lin 2011). Observations of waves in prominences show that typical wavenumbers are between 10^{−8} and 10^{−6} m^{−1}, meaning that the slender slab limit is justified to a large extent, however, this does not cover the whole spectrum of possible values.
We consider a slab width of ≈1 Mm, so that the set value of kz_{0} = 0.01 corresponds to a wavenumber of k = 2 × 10^{−7} m^{−1}, while the dimensionless quantity kz_{0} = 0.02, corresponds to the wavenumber k = 4 × 10^{−7} m^{−1}. We assume that the temperature of the prominence is T_{0} = 10^{4} K that corresponds to a sound speed speed of c_{s 0} = 11.7 km s^{−1}. Assuming an Alfvén speed of v_{A 0}= 28.0 km s^{−1} results in a tube speed of c_{T 0} = 10.8 km s^{−1}. When ρ_{r} = 0.02 the coronal characteristic speed are (assuming the same magnetic field strength in all regions): v_{Ae} = 198.0 km s^{−1}, c_{se} = 83.0 km s^{−1}, and c_{Te} = 76.5 km s^{−1}. When ρ_{r} = 0.01 the coronal characteristic speeds become v_{Ae} = 280.0 km s^{−1}, c_{se} = 117.0 km s^{−1}, and c_{Te} = 108.0 km s^{−1}.
The variation of the critical flow speed with the ionisation degree for compressible (based on Eq. (28)) and incompressible (based on Eq. (29)) plasma is shown in Fig. 2. The top two panels correspond to a viscosity coefficient of ν = 10^{9} m^{2} s^{−1} that leads to a viscous Reynolds number of R ≈ 10^{4} (this may be small, however it has been shown in Hollweg (1985) that in particular coronal conditions a small Reynolds number can be valid) with typical length scales of 10^{7} m (again, a typically observed wavelength) and typical background wave velocities of 10^{5} –10^{6} m s^{−1}, that is the external Alfvén and sound speeds. The variation of the critical speed is studied for two distinct values of the density ratio between corona and chromosphere (ρ_{r} = 0.01 and ρ_{r} = 0.02). The bottom two panels show the variation of the critical flow speed for a viscosity coefficient of ν = 10^{10} m^{2} s^{−1} (corresponding to a Reynolds number of R ≈ 10^{3}), for the same density ratios as before. In these plots, the ionisation degree, μ, varies between 0.5 (fully ionised plasma) to one (fully neutral fluid) and for different values of the dimensionless quantity kz_{0}.
These figures clearly reveal that, in the case of a fully ionised plasma, the instability occurs at flows speeds that have realistic values (see e.g. Lin et al. 2005b, 2008) and the critical value of the flow for compressional plasma is approximately half of the flow necessary to induce an instability in an incompressible plasma. As the concentration of neutrals is increased,there is a critical value of this ionisation degree after which the critical flow corresponding to the incompressible plasma is lower. At this point, the curves representing the critical flows intersect. When either kz_{0} or ρ_{r} are increased the value of μ at which the solutions cross is increased and the gradients of the flow with respect to μ decrease. It is possible to find the critical value, μ_{c}, when the solution paths cross, by equating Eqs. (28) and (29) (30)
The role of various physical parameters in the appearance of the dissipative instability can be deduced from Fig. 2. First of all, we keep in mind that the observed flows are subsonic. Comparing the two lefthand panels, we see that, with a more viscous corona, a realistic range of flow speeds for the instability to occur can be obtained even with a large fraction of neutrals present. In the top lefthand side panel, the realistic critical flows could appear only for plasmas that are nearly completely ionised, however, with the increase of viscosity, the plasma is more prone to instability, even for an increased number of neutrals. That means that viscosity has a destabilising effect. In all panels it is obvious that once the concentration of neutrals is increased the critical speed where instability occurs increases, meaning that neutrals have a stabilising effect. Comparing the upper two panels we can also observe that larger wavelength waves are more easily developing instability. For a given ionisation degree waves with a larger wavenumber (shorter wavelength) become unstable.
Figure 3 plots the variation of the imaginary part of the frequency, ω^{′}, with respect to the ionisation degree (μ) and the internal equilibrium flow speed for ρ_{r} = 0.01 and kz_{0} = 0.1 (Figs. 3a and b) and ρ_{r} = 0.02 and kz_{0} = 0.2 (Figs. 3c and d). The dividing line, labelled “ω^{′} = 0”, shows the transition between damped (stable) waves (ω^{′} < 0) and amplified (unstable) waves (ω^{′} > 0).
In Figs. 3a and c the wavenumber and viscosity coefficient take the values of k = 2 × 10^{−7} m^{−1} and ν = 10^{9} m^{2} s^{−1}, while in Figs. 3b and d we used k = 4 × 10^{−7} m^{−1} and ν = 10^{10} m^{2} s^{−1}. It is evident that for a given ionisation degree, as u_{0} increases, damping is reduced below the contour ω^{′} = 0 s^{−1} and that amplification increases above this.
As the fraction of neutrals increases the magnitude of the damping becomes larger below the ω^{′} = 0 s^{−1} contour and the magnitude of the amplification decreases above this. For a given equilibrium flow strength above the critical speed described by Eq. (28), there will be a critical ionisation degree after which the plasma becomes stable, meaning that the presence of neutrals, therefore, acts to stabilise the prominence. As the coefficient of viscosity of the corona is increased, the parameter domain where instability can arise is much more extended.
The damping and amplification timescales in Figs. 3a and c are larger than 10^{7} s which is clearly far too long for any active prominence structure.
Fig. 2
Variation of the critical flow speed with respect to ionisation degree, μ, for the compressible case (blue lines), given by Eq. (28), and the incompressible case (red lines), given by Eq. (29): a) and b) both with ν = 10^{9} m^{2} s^{−1} but with ρ_{r} = 0.01 and ρ_{r} = 0.02, respectively and c) and d) both with ν = 10^{10} m^{2} s^{−1} but with ρ_{r} = 0.01 and ρ_{r} = 0.02 respectively. In each the solid lines (—–) indicate kz_{0} = 0.1 and the dashed lines (  ) indicate kz_{0} = 0.2. The regions under the curves correspond to the stable regime.

Open with DEXTER
Fig. 3
Contour plots showing the variation of ω^{′} with respect to the internal background flow speed, u_{i}, and the ionisation degree μ. Red indicates a positive value of ω^{′} (amplification) and blue indicates a negative value of ω^{′} (damping). The colour bar shows the numerical value of ω^{′} and the contour labelled ω^{′} = 0 indicates the transition between amplification and damping of the wave. Panels a and b both use the parameters ρ_{r} = 0.01, kz_{0} = 0.1, and k = 2 × 10^{−7} m^{−1} but with ν = 10^{9} m^{2} s^{−1} and ν = 10^{10} m^{2} s^{−1} respectively. In the panels c and d we used ρ_{r} = 0.02, kz_{0} = 0.2 and k = 4 × 10^{−7} m^{−1} along with ν = 10^{9} m^{2} s^{−1} and ν = 10^{10} m^{2} s^{−1}, respectively.

Open with DEXTER
4.2 Numerical solutions
The analysis using the slender slab limit is very useful as a guide towards understanding the nature and behaviour of the modes present in the system. However, this limit is restrictive due to the size of prominences, for which the condition kz_{0} ≪ 1 is not satisfied. Therefore, it is instructive to solve numerically Eq. (16) and approximate the imaginary part of the frequency using Eq. (17).
Figures 4 and 5 show the variation of the imaginary part of the frequency (ω^{′} ), with respect to the dimensionless wavenumber, kz_{0}, for three different values of the ionisation degree and the same viscosity coefficient. In both figures, the top panels correspond to a density ratio of ρ_{r} = 0.01, while the bottom panels were obtained for ρ_{r} = 0.02. The value of the background flow was chosen to be u_{0} = 16 km s^{−1} (just abovethe internal tube speed, c_{T 0}, in the lefthand side panels) and u_{0} = 28 km s^{−1} (close to the internal Alfvén speed, v_{A0}, in righthand side panels), respectively. The variation of the dimensionless damping or amplification rate is plotted against the dimensionless quantity kz_{0}, keeping k = 5 × 10^{−6} m^{−1} and allowing the width of the slab, 2z_{0}, to vary (see Fig. 4). In Fig. 5, we plot the same quantity, but now the width of the slab is maintained constant at z_{0} = 4 Mm (Fig. 4) and k is allowed to vary. In all cases a horizontal is drawn at the ω^{′} = 0 level in order to clearly identify the behaviour of the rate of change of the amplitude.
Figure 4 shows that at flow speeds just above the internal tube speed of the prominence, the pseudobody mode and the n = 1 body modes are unstable when μ = 0.5, that is when the prominence is fully ionised. As the ionisation fraction increases (that is more neutrals are taken into account) all modes become stable and their amplitudes are damped, with the pseudobody most being the more damped. This results confirms earlier findings that neutrals have a stabilising effect. As kz_{0} is increased (larger slab sizes) both the damping and amplification of modes is reduced. When the equilibrium flow is increased to u_{0} = 28 km s^{−1} (Fig. 4b) modes will use the increased flow speed for additional energy, waves will become unstable much easier. Now, the increased amount of neutrals is not enough to stabilise completely the body mode; the body mode corresponding to μ = 0.75 is stable only for very a thin slab. For an even larger concentration of neutrals (μ = 0.95), both the body and pseudobody mode are damped. Comparing the results obtained for the two flow values we can observe that the amplification rate increases with the value of the equilibrium flow.
When the density contrast between the prominence and corona is increased the qualitative behaviour of modes in the fully ionised case does not change, however, significant variations occur in the behaviour of the pseudo mode corresponding to μ = 0.75. At this concentration of neutrals, the pseudobody mode remains stable only for large wavelengths after which it becomes unstable. For a value of kz_{0} ≈ 4, the modes becomes stable again. This latter effect could be attributed to dispersion. Finally, when the equilibrium flow is increased the pseudobody mode corresponding to an ionisation degree of 0.75 stays stable only for very large wavelengths. The n = 1 body modes becomes unstable for a given value of kz_{0}. These results confirms our finding that an increased flow speed is generating instability in modes.
When the magnetic slab width is kept constant (Fig. 5) the variation of the imaginary part of frequency is investigated between the limits of long and short wavelength. All figures reveal that the most unstable or damped regime appears in the long wavelength approximation, while for small wavelengths all rates tend to zero. Similar to the previous case, the amplification or damping rate increases by almost an order of magnitude when the flow speed is increased. The maximum of the amplification rate occurs at larger wavelengths, once the concentration of neutrals is increased. Similar enhancement of the damping or amplification rate can be observed when the density contrast is increased.
Fig. 4
Variation of the imaginary part of the frequency (ω^{′}) for pseudobody (—) and n = 1 (⋅ ⋅) body mode with respect to dimensionless wavenumber, kz_{0}. We fix the wavenumber at k = 5 × 10^{−6} m^{−1} with the slabwidth varying. For each separate diagram the background flow speed has been taken to be u_{0} = 16.0 km s^{−1} and u_{0} = 28.0 km s^{−1}, respectively. Panels a and b correspond to ρ_{r} = 0.01, while panels c and d to ρ_{r} = 0.02. All panels a–d use a viscosity coefficient of ν = 10^{10} m^{2} s^{−1}. Black lines denote an ionisation degree of μ = 0.5, red and blue lines correspond to μ = 0.75 and μ = 0.95, respectively.

Open with DEXTER
5 Conclusions
The main focus of the current investigation is the dissipative instability associated with negative energy waves (Ryutova 1988), that is backward propagating waves that are amplified during their propagation in a partially ionised prominence plasma slab surrounded by a fully ionised and viscous corona. We derived the dispersion relation for compressible sausage modes (see Eq. (15)), described by a highly transcendental equation. The frequency ofmodes is approximated using a regular perturbation method in the slender slab limit, that is when kz_{0} ≪ 1, and two solutions were found: one mode that propagates with the phase speed of the external sound speed and the other mode that progresses at the phase speed of the internal tube speed, c_{T 0}, Dopplershifted with the internal flow speed, u_{0}. For the second of these two cases, the phase speed of the backward propagating mode reverses direction when the internal flow speed is approximately equal to the internal tube speed. Our study deals only with the stability question of slow sausage modes, as these are the most likely to become unstable given the thresholds of equilibrium flow speeds.
The coupling of backward propagating modes and the equilibrium flow may result in reversing the propagation direction of modes. Further, the flow serves as a source of energy for wave amplification. The amplification rate is proportional to the value of dissipative coefficients. The instability only occurs for flow speeds larger than the internal tube speed and this threshold increases when more neutrals are present in the system. In contrast, the critical speed is inversely proportional to the viscosity coefficient of the fully ionised corona. In addition, the critical speed increases with the increase in the wavelength. This result is rather remarkable, as it shows that modes propagating along the prominence slab can become unstable for flows that are in the observable range (in contrast, a KelvinHelmholtz instability requires flow speeds that are superAlfvénic).
To investigate the effect of compressibility we compared our results to the results obtained in the incompressible limit, a similar case that is found in Ballai et al. (2017) for long wavelength limit. First of all, the critical flow threshold derived by us agrees very well with the values obtained for sausage modes by Ballai et al. (2017), but these are both super Alfvénic flows. For a compressible plasma, the critical speed was obtained to be subAlfvénic, which is more realistic, as it lies in the midrange of values for equilibrium flows presently observed in solar prominences. The flow values determined by us are much smaller than the critical values determined by Ballai et al. (2015) for the single interface, meaning that guided waves need smaller flow speed to become unstable. However, depending on the ionisation degree of the plasma, this statement does not hold for a larger proportion of neutrals. Therefore, when the plasma has a sufficient amount of neutrals present, the interface is more stable than in the incompressible case. It is worth comparing the main results of the present study with the results by Ballai et al. (2017). While the value of the characteristic speed for which backward propagating waves in the slender slab limit (kz_{0} = 0.1 for comparison purposes) become unstable was found to be in the region of 30 km s^{−1}, our analysis shows that these waves, in the presence of compression, can become unstable for speeds of the order of 10 km s^{−1}. Inspecting the value of the imaginary part of the frequency (the quantity that describe the instability increment of waves), the values obtained in the compressional limit would be at least three orders of magnitude smaller than the values obtained by Ballai et al. (2017). This reveals the fact that the compressibility can also have a stabilising effect on the plasma.
The imaginary part of the frequency varied with flow speed and ionisation degree and in all investigated case these instabilities proved to be slow, the time scales involved could well be of the order of 10^{7} s in the long wavelength limit. The numerical analysis of the dispersion relation for a large spectrum of parameters reveals that the amplification rate can reach values of the order of 10^{−5} s^{−1} such that instabilities have a characteristic time of 10^{5} s
The slender slab limit, while being fairly instructive for analytically modelling the properties of the modes and instabilities, did not provide a full picture of the behaviour of modes and the stability of the plasma structures. That is why we solved the full dispersion relation numerically in order to investigate how varying the importance of dispersive effects change the imaginary party of the frequency. For pseudobody modes the largest amplification rate was obtained for a flow speed of 28 km s^{−1} and the maximum value was attained for kz_{0} ≈ 1, that is a wavelength which is comparable with the transversal size of the slab. The amplification rate of the wave amplitudes dropped off rapidly with increasing kz_{0}. Again, the absolute value of the amplification rate and damping rate was fairly of course very dependent to changes in ν and ρ_{r}. For the bodymode (n = 1), the effect of a larger proportion of neutrals is to damp the waves more significantly than the previous body mode. The amplification for these modes, caused by the dissipative instability, was much lower than for the pseudobody mode, so they are less likely tocause unstable behaviour than the pseudobody mode would.
In conclusion, our numerical analysis reveals that for a given density ratio and flow speed the inclusion of neutrals stabilises the plasma. This result could be easily understood, however, it difficult to prove given the framework used to describe the instability. Once the number of neutrals increases, the collisions between heavy particles (ions and neutrals) will distribute the energy stored in waves. However, this aspect cannot be evidenced in a single fluid description. Our aim is to expand in the near future the current analysis to a twofluid model and investigate the role of collisions between heavy particles in the stability of the plasma.
Increasing the value of the flow will increase the damping or amplification rate of modes making the stable modes become unstable, therefore the flow has a destabilising effect. This conclusion is again easy to understand keeping in mind that the dissipative instability (and implicitly negative energy waves) use the background equilibrium flow as a source of energy. The amplification of waves is more pronounced for short wavelengths and intermediate slab thickness.
Fig. 5
Same as Fig. 4, but with the width of the slab fixed at z_{0} = 4 Mm and the wavenumber now the varying quantity.

Open with DEXTER
