Fig. A.3

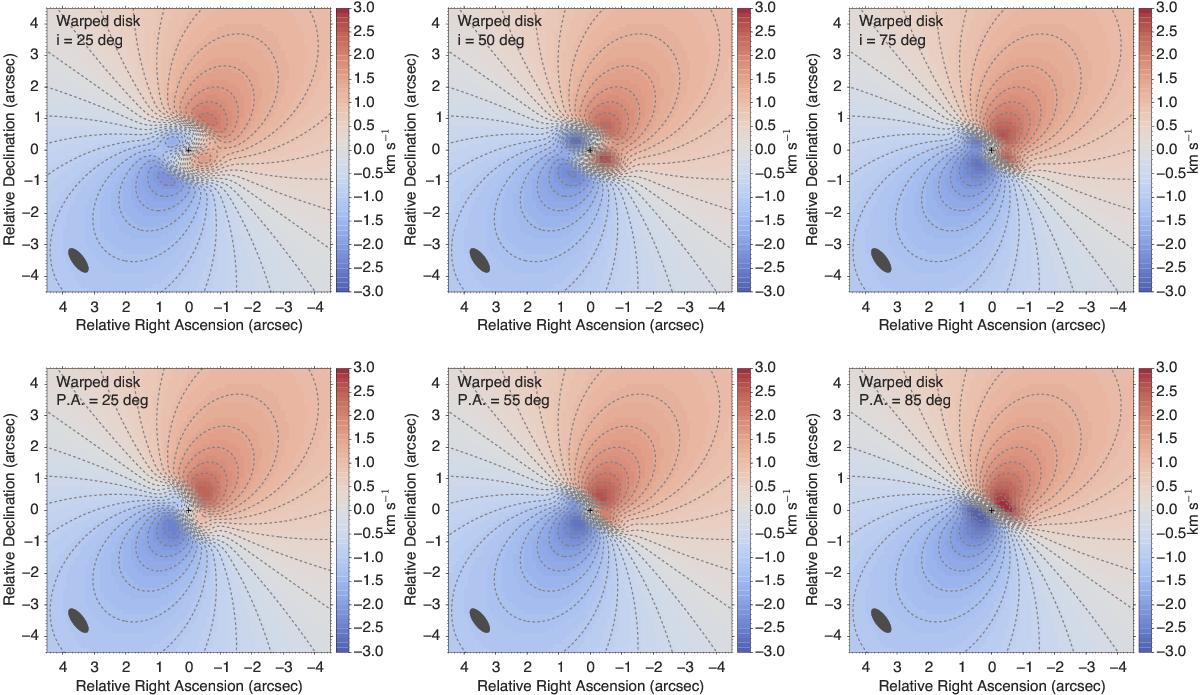

Model first moment maps for a warped disk with an outer disk PA of 145°, an inclination of 36°, and an opening angle of 9°. The top row of models have an inner warp with a fixed PA of 55° and an inclination of 25° (left), 50° (middle), and 75°. The bottom row of models have an inner warp with a fixed inclination of 80° (representative of that in the HD 100546 disk) and a position angle of 25° (left), 55° (middle), and 85° (right). The transition radius in all models is 100 au. The contours are in units of a single spectral resolution element (0.21 km s-1).
