Fig. 4

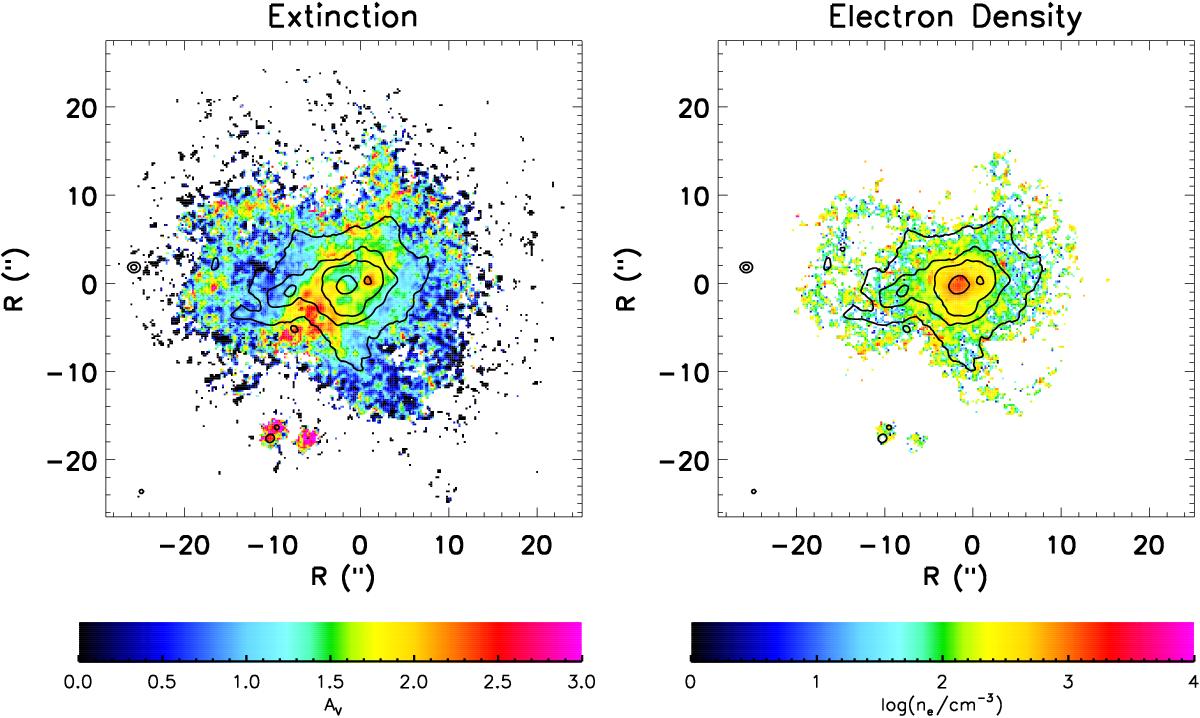

Extinction map as derived from the Hα/Hβ line ratio (left panel) and electron density from [SII]λ6716/[SII]λ6730 (right panel) with Hα contours overplotted. Both maps show the spaxels with S/N> 3 in all the emission lines involved.
