Three-dimensional magnetic structure of a sunspot: Comparison of the photosphere and upper chromosphere

Jayant Joshi; Andreas Lagg; Johann Hirzberger; Sami K. Solanki

doi:10.1051/0004-6361/201730875

Home

All issues

Volume 604 (August 2017)

A&A, 604 (2017) A98

Full HTML

Free Access

Fig. 15

Open with DEXTER Download original image

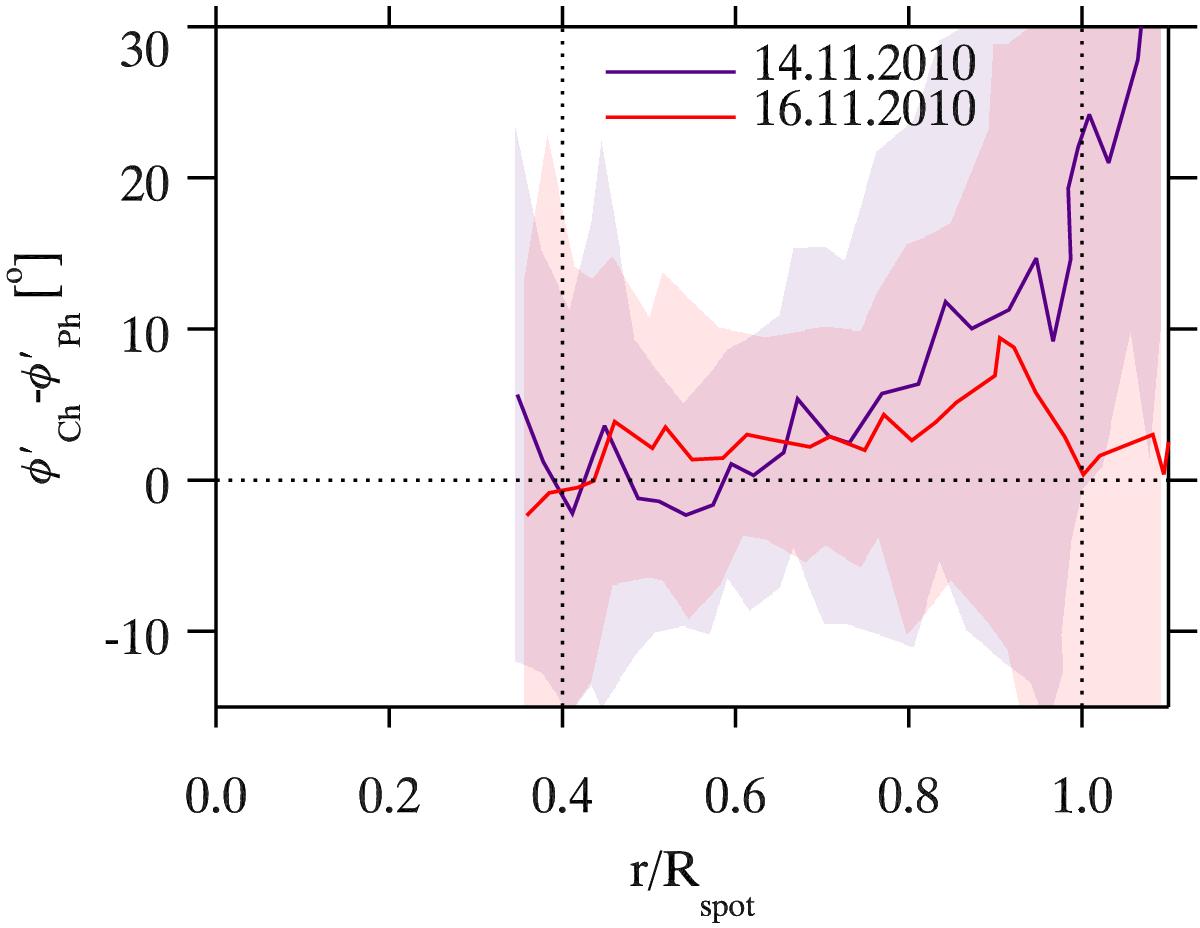

Radial dependence of as a function of r/R_spot. The blue and red curves correspond to as obtained from the observations recorded on 14 November 2010 and 16 November 2010, respectively. Only the regular parts of the sunspots to the lower right of the red lines in Figs. 10a and 11a are considered.
