Fig. 18

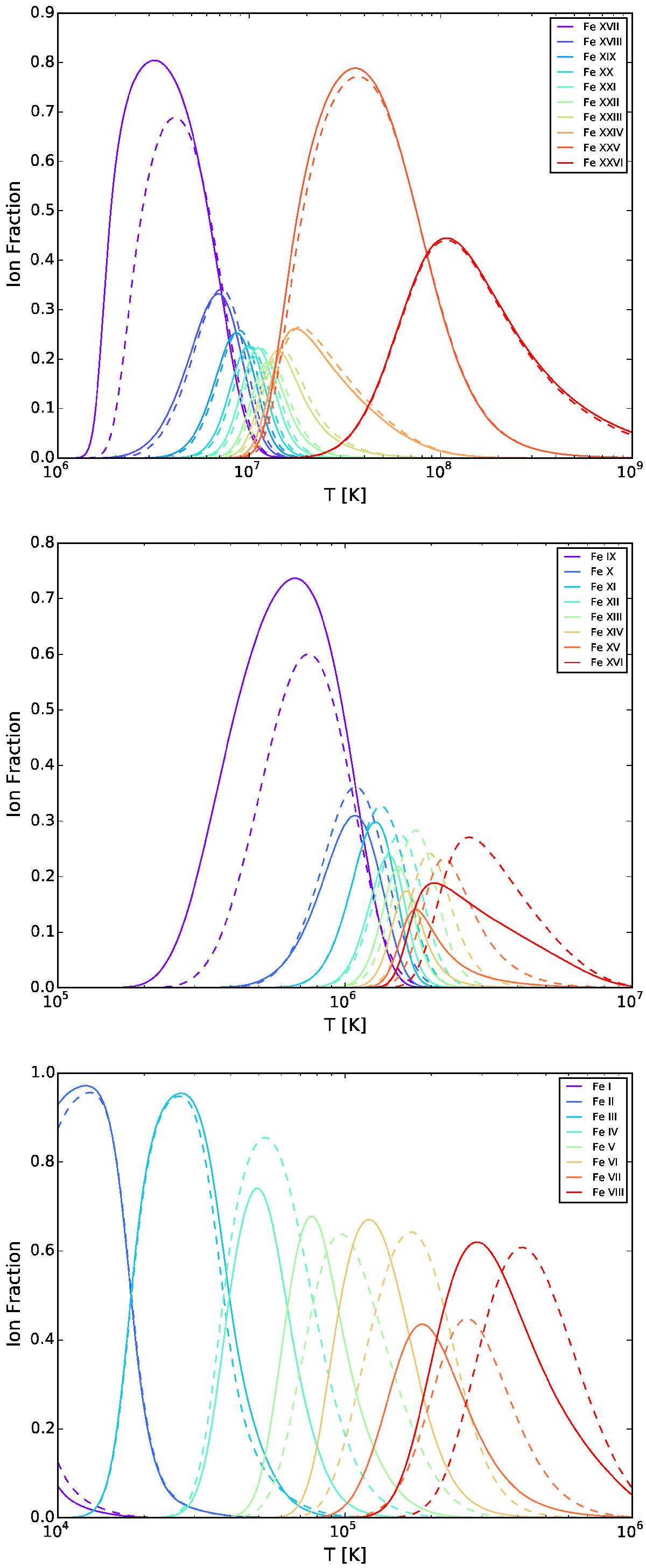

Top: ion fraction for H-like to Ne-like Fe including the ionization rates of Bryans et al. (2009; dashed lines) and present work (solid lines). Middle: ion fraction for Na-like to Ar-like. Bottom: ion fraction for K-like to Fe-like.
