Fig. B.1

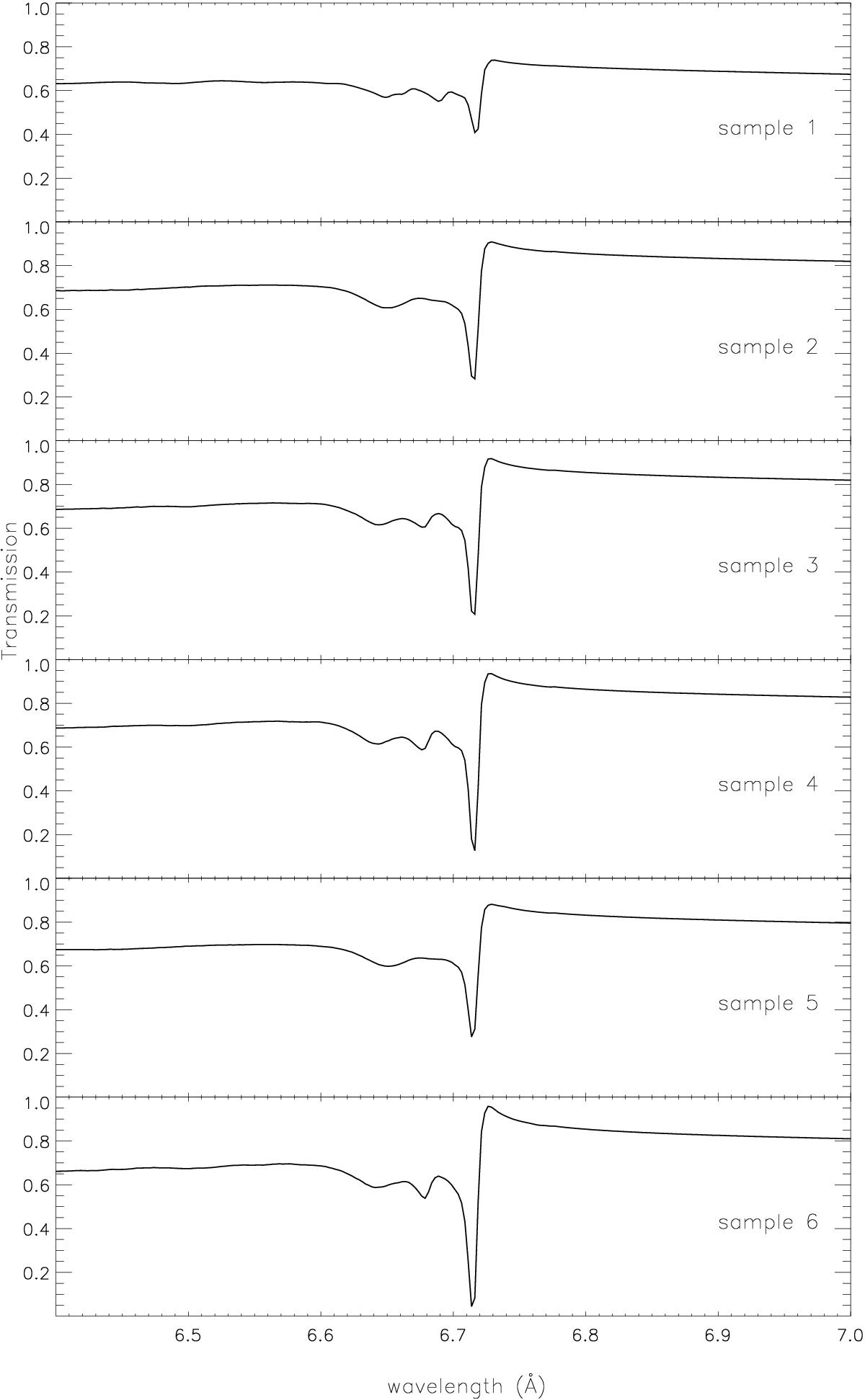

Transmission of the six dust extinction models (absorption and scattering) from the analysis of the Si K-edge. The silicon column density has been set here to 1018 cm-2 for all the dust models. Each model is indicated by a number corresponding to the numbers in Table 1. The table also gives the chemical formula and the structure (crystalline or amorphous) of the dust compound.
