Fig. 11

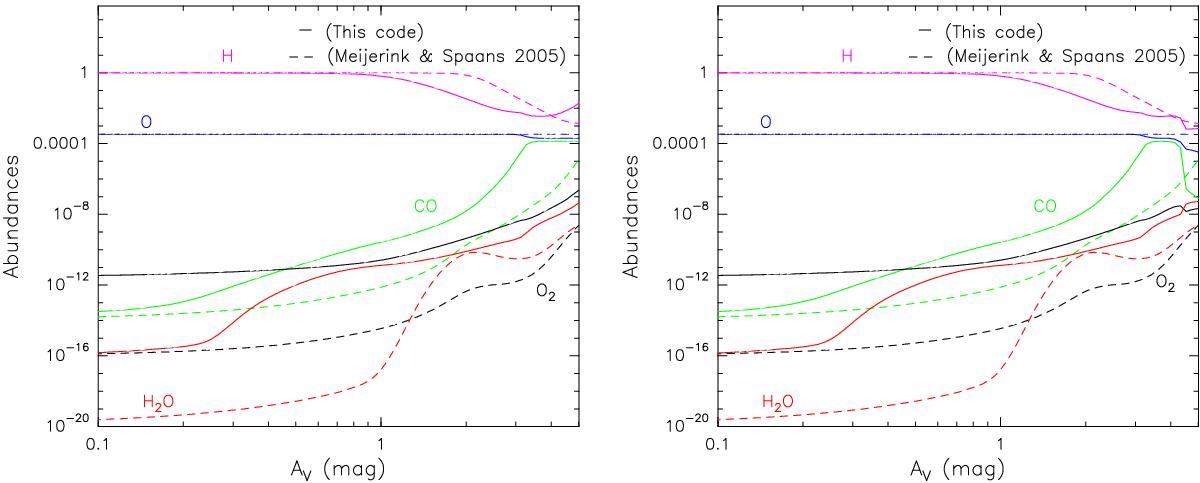

Gas-phase fractional abundances, n(x)/nH, for H, O, CO, H2O, and O2 from Model 1 (G0 = 104 and nH = 104) obtained with this PDR code and the version from Meijerink & Spaans (2005). Original paper (right) and corrected version (left).
This figure is made of several images, please see below:
