Fig. C.1

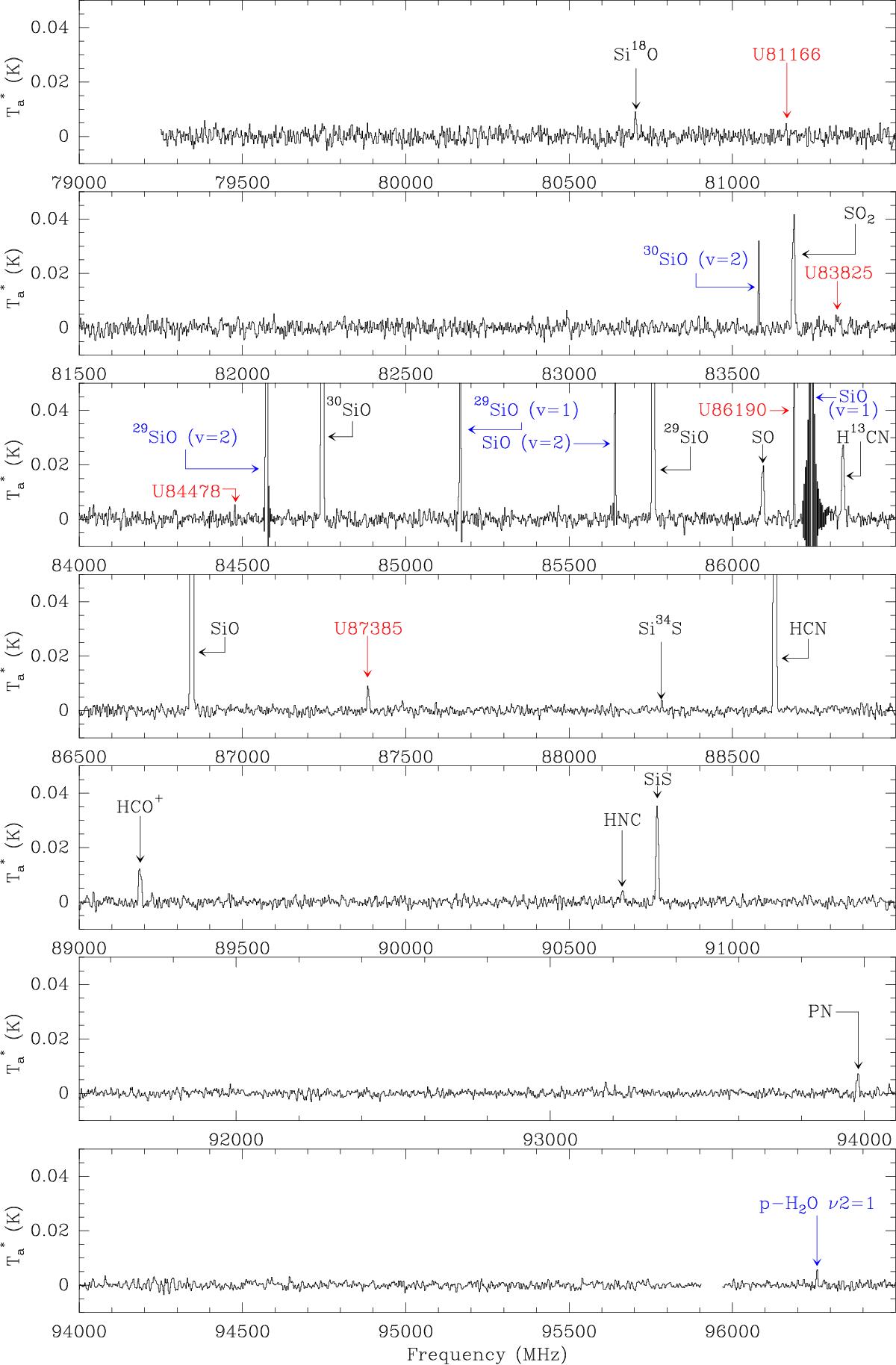

Line identification of the IRAM-30 m line survey of IK Tau. We marked in red the unidentified lines (UIs) with the central frequency of the line. The lines which display time variability of their intensity are marked in blue. Image band and spurious feaures/artifacts have been blanked off (see Table B.2 and Fig. B.1)

This figure is made of several images, please see below:
