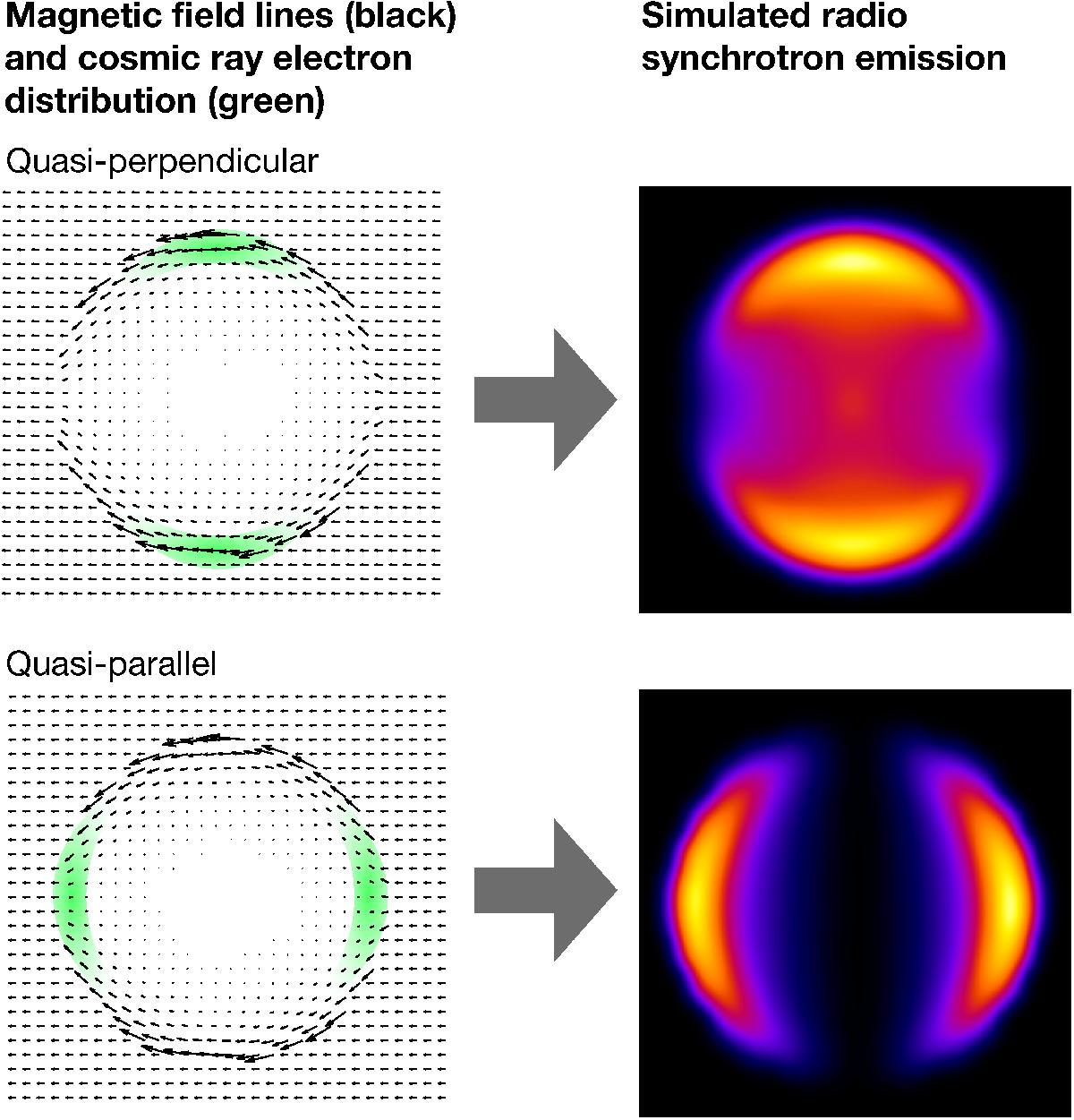

Geometry of CRE distributions for quasi-perpendicular shocks (top) and quasi-parallel shocks (bottom), and the corresponding simulated synchrotron emission, which has been normalized for display purposes. This cartoon is intended to qualitatively show the distribution of the CREs with respect to the magnetic field geometry. It is not intended to be representative of the precise quantitative distributions.
