Fig. A.1

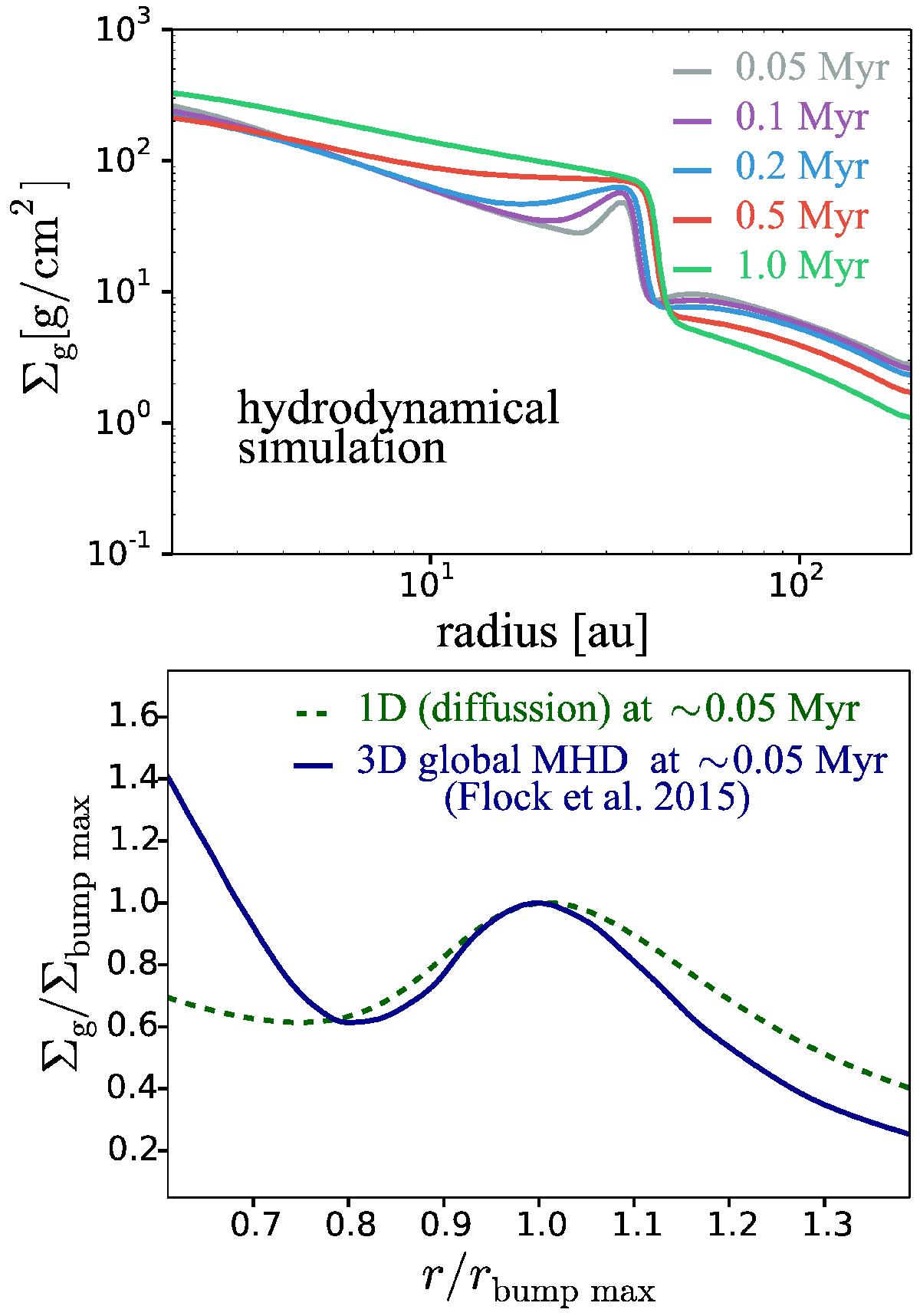

Gas surface density evolution for different time snapshots for the hydrodynamical model II (top panel), and comparison of the 1D diffusion model with the 3D global MHD model from Flock et al. (2015) at the same time of evolution ~ 0.05 Myr (bottom panel), in normalised units with respect to the maximum of the bump formed at the edge of the dead zone.
