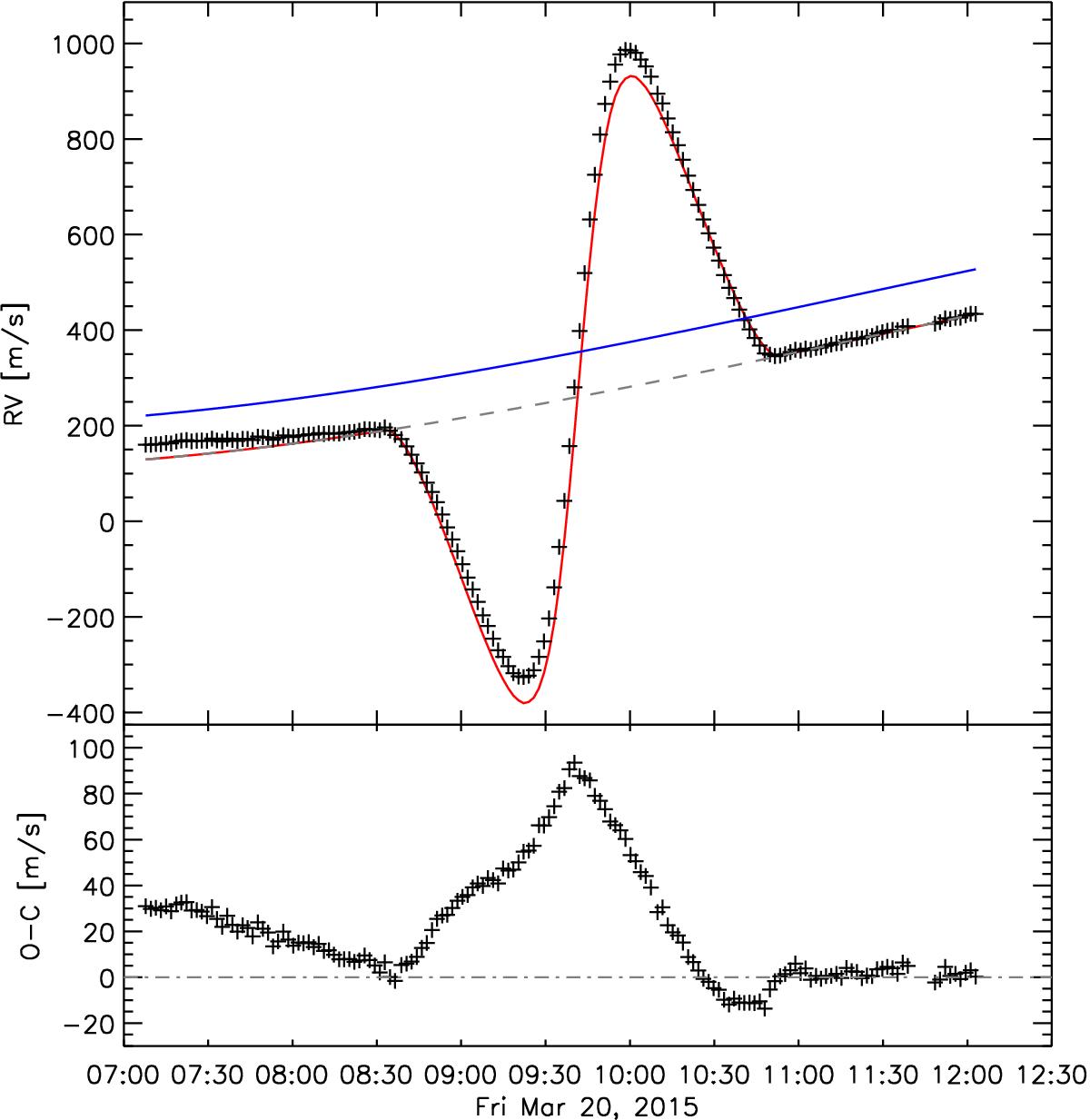

Fig. 5


Observations of solar RVs during the eclipse together with the standard line model 1. Top panel: black plus symbols show our solar RV observations. The red line shows results from our model corrected for an offset so that they match observations after the end of the eclipse (see text). The gray dashed line shows the eclipse-free model (only barycentric motion). The blue line shows barycentric motion from JPL’s ephemeris. Bottom panel: residuals between observations and model (black symbols minus red curve in top panel).
