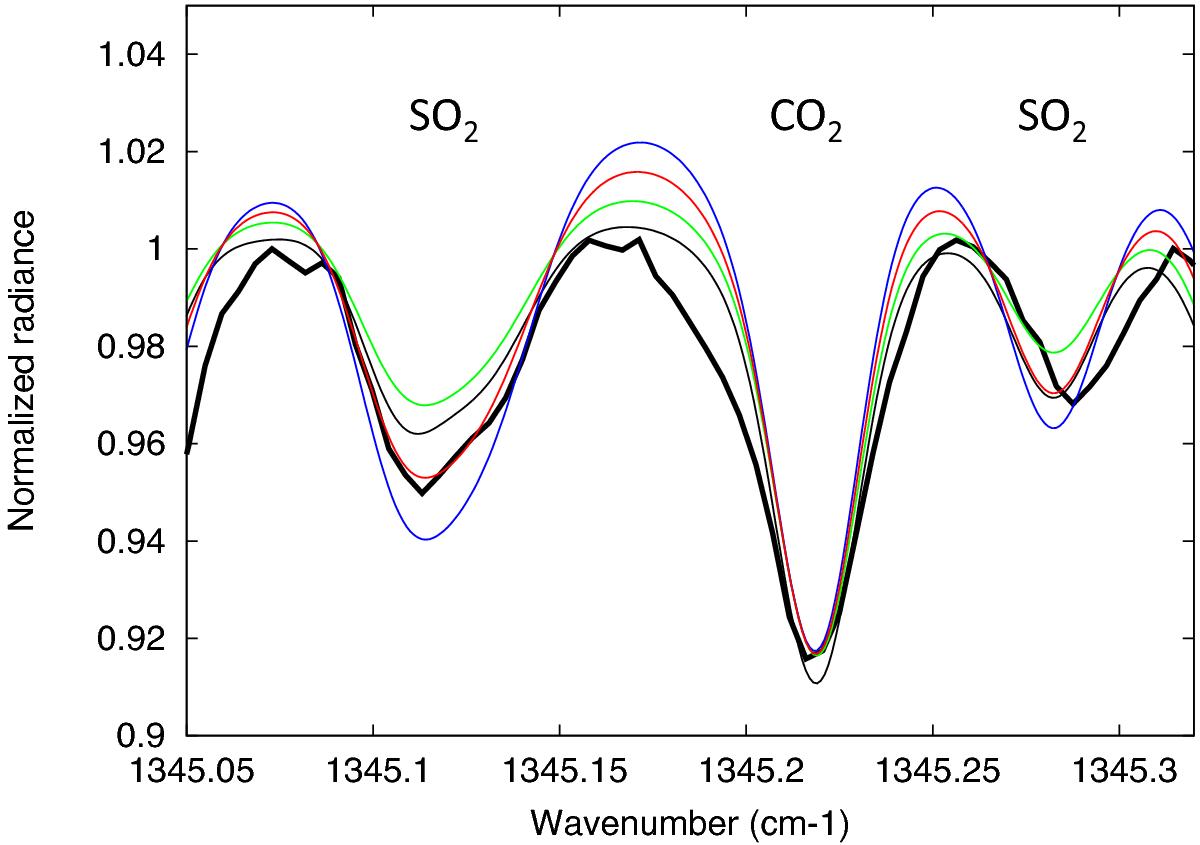

Fig. 14

Disk-integrated spectrum recorded by TEXES on January 14, 2016 (20:33 UT), between 1345.05 and 1345.32 cm-1 (7.4 μm), showing weak transitions of CO2 and SO2. The date and duration of the corresponding observation are indicated in Table 2. The January 2016 run corresponds to the strongest SO2 content measured at the cloudtop between 2012 and 2016. Thick black line: TEXES data; thin lines: models. Green: SO2 = 200 ppbv with cutoff; red (best fit): SO2 = 300 ppbv with cutoff; blue: SO2 = 400 ppbv with cutoff; black: SO2 = 100 ppbv, constant with altitude. The spectral resolution is 0.028 cm-1.
