Fig. A.1

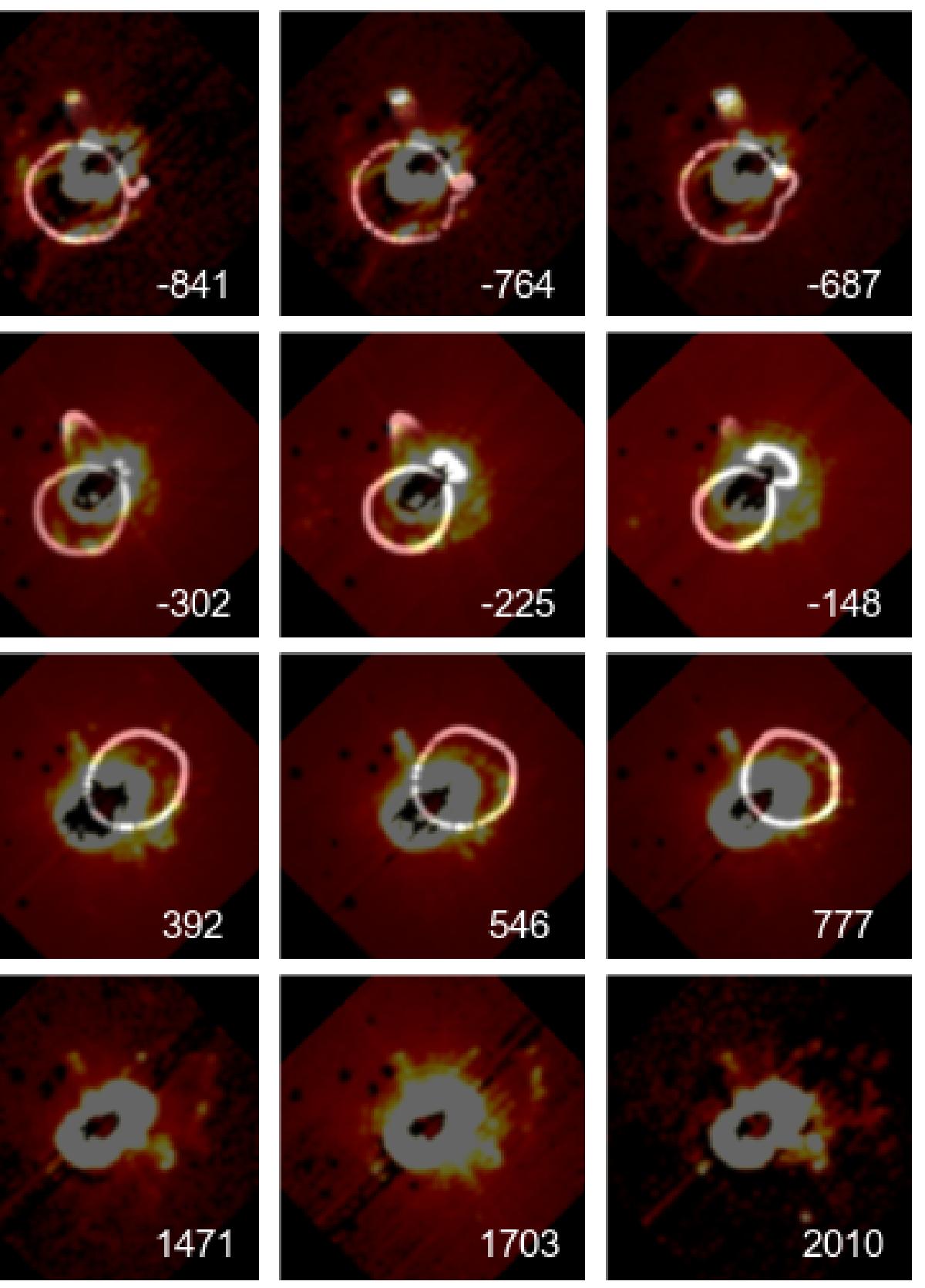

Alternative SHAPE model of a resized Homunculus geometry compared to the observed MUSE channel maps of Hβ emission at different velocities in the MUSE field of view of 1′× 1′. This geometry assumption does not reproduce the observations nearly as well as the cylinder geometry shown in Fig. 2. With a given velocity field, there is not a great deal of freedom in the geometry.
