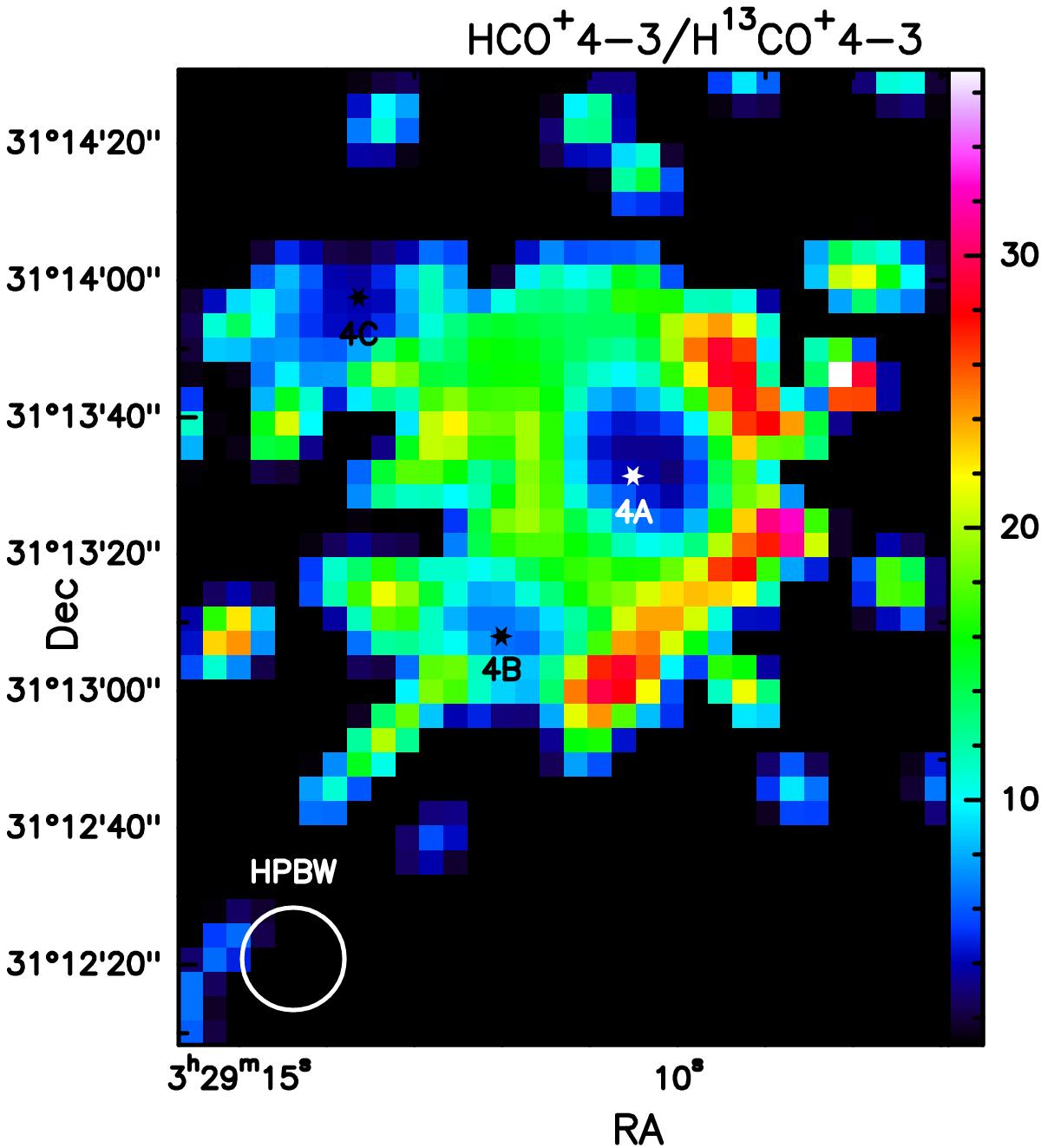

Fig. 18


Observed HCO+ 4–3/H13CO+ 4–3 ratio of the peak intensities for the range of +5 to +9 km s-1. The observed ratio takes values between 6 and 37, which is lower than the optically thin ratio of 60 and indicates that the main isotope HCO+ 43 is optically thick throughout the cloud. The effect is stronger toward the three embedded objects.
