Planck 2015 results
Free Access

Fig. 47

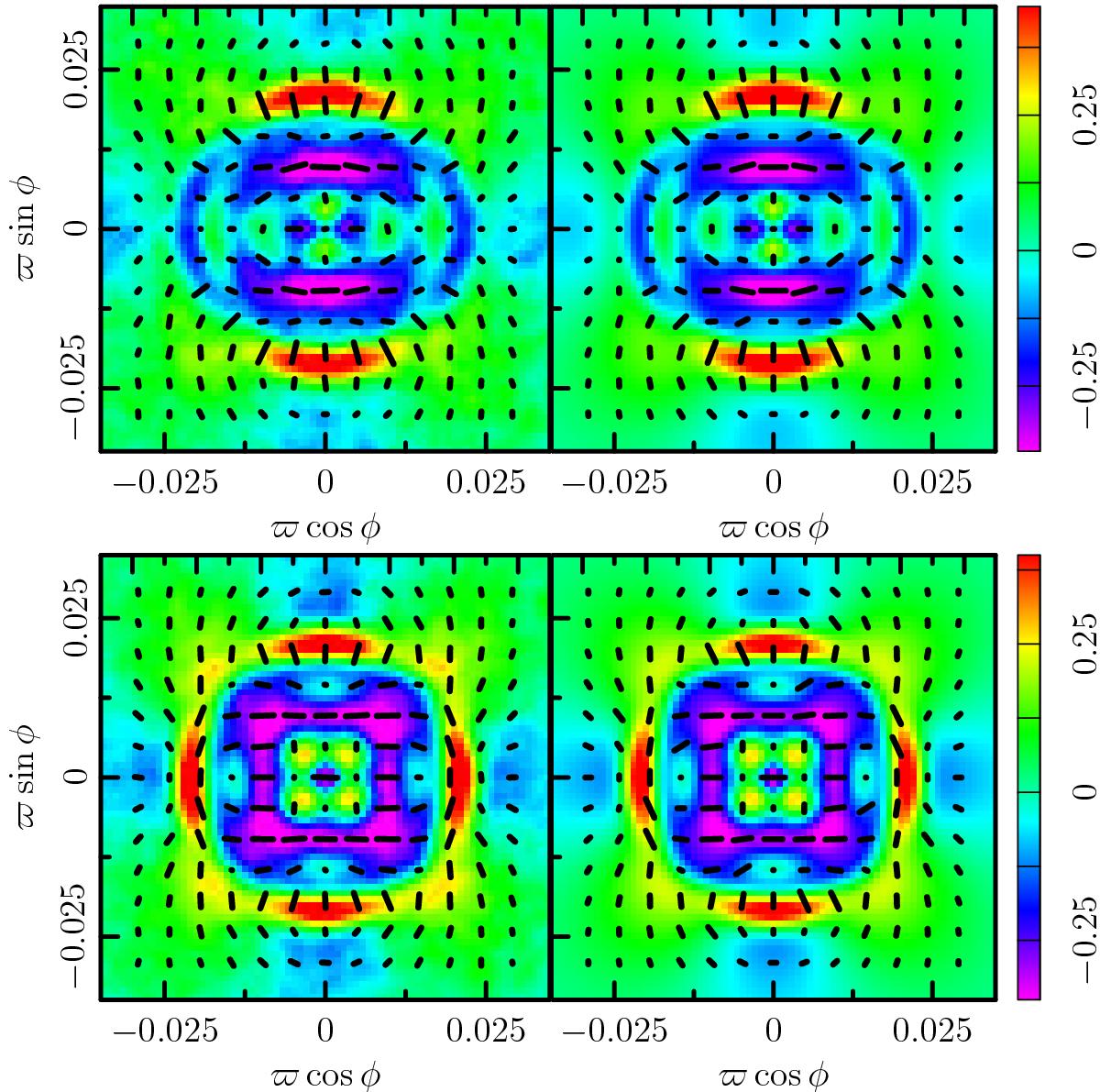

Oriented stacking of polarization fields (Q, U) on temperature maxima (upper panels) and PT maxima (lower panels). In both cases the threshold ν = 0 is used and the orientation is chosen such that UT = 0 and QT ≥ 0 on the central peak. The image units are  μK. The left panels are the stacked SMICA maps, and the right panels their NFEAs. See Fig. 46 for the meaning of the headless vectors (black dashed lines).

This figure is made of several images, please see below:
