Planck 2015 results
Free Access

Fig. 45

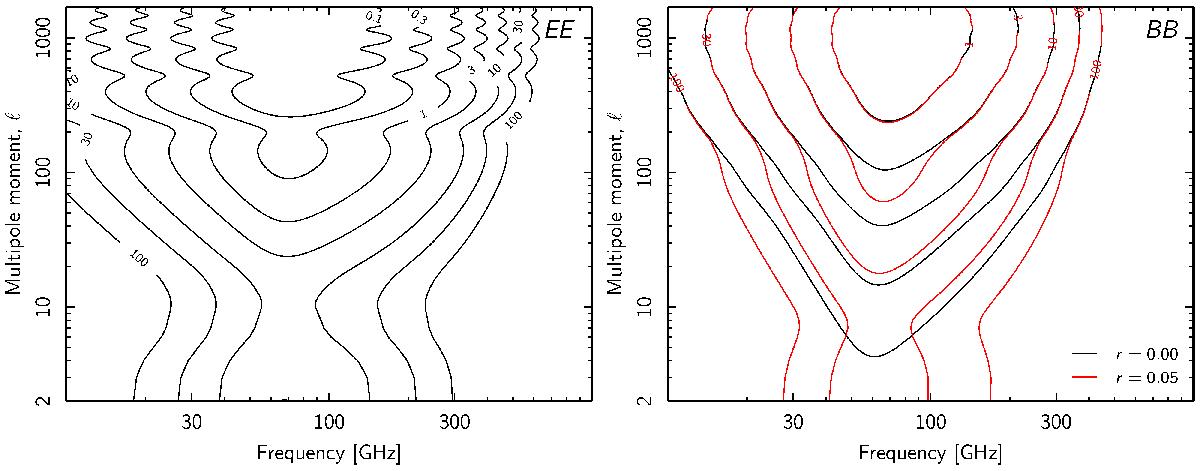

Amplitude ratio between total polarized foregrounds and CMB as a function of both multipole moment and frequency, defined by , as defined Eq. (22) with parameters derived from 73% of the sky. The left and right panels show the EE and BB spectra, and the black and red contours in the latter corresponds to tensor-to-scalar ratios of r = 0.0 and 0.05, respectively.
