Fig. 3

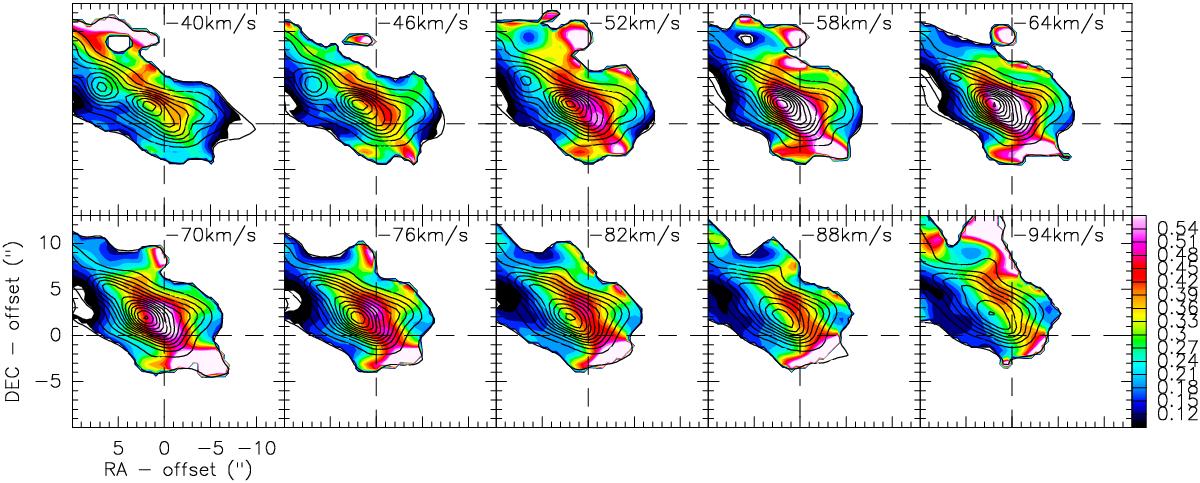

Channel maps of the [CI](10)/CO(J = 1−0) line ratios in Tmb-scale (color scale) between velocities 40 km s-1 and 94 km s-1 overlaid with the integrated [CI](10) line emission (contours); the color scales starts from 0.09 and go in steps of 0.3, the contours of [CI](10) start at 5σ and go in steps of 10σ (1σ=106mJy/beam). Note that the velocity resolution has been resampled to 6 km s-1.
