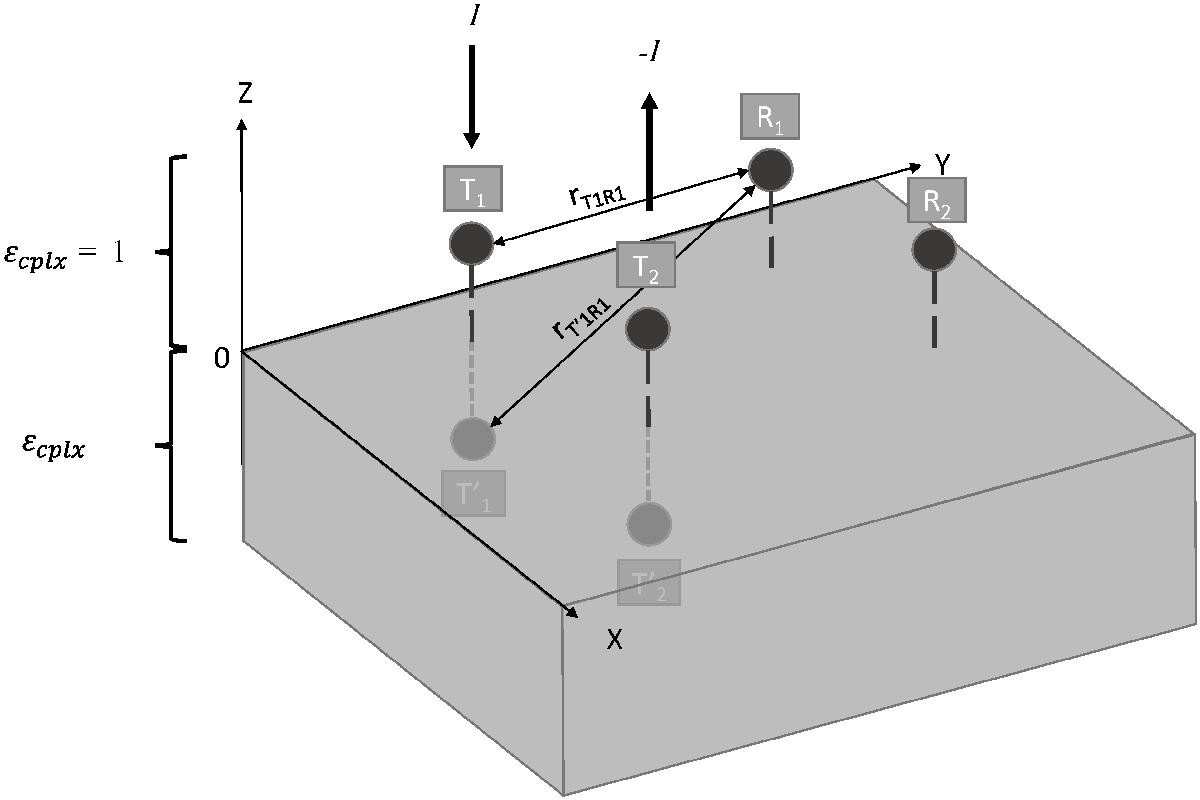

Fig. 2

Quadrupolar array above an interface separating a half-space with a relative
complex permittivity ϵcplx and vacuum. T1 and
T2 are the transmitting electrodes,
while R1 and R2 are the
receiving electrodes. and
are the images of the transmitting
electrodes by the interface. The parameter rTnRm
is the distance between the Tn and
Rm electrodes.
The parameter I is the current flowing through the
transmitting electrodes.
