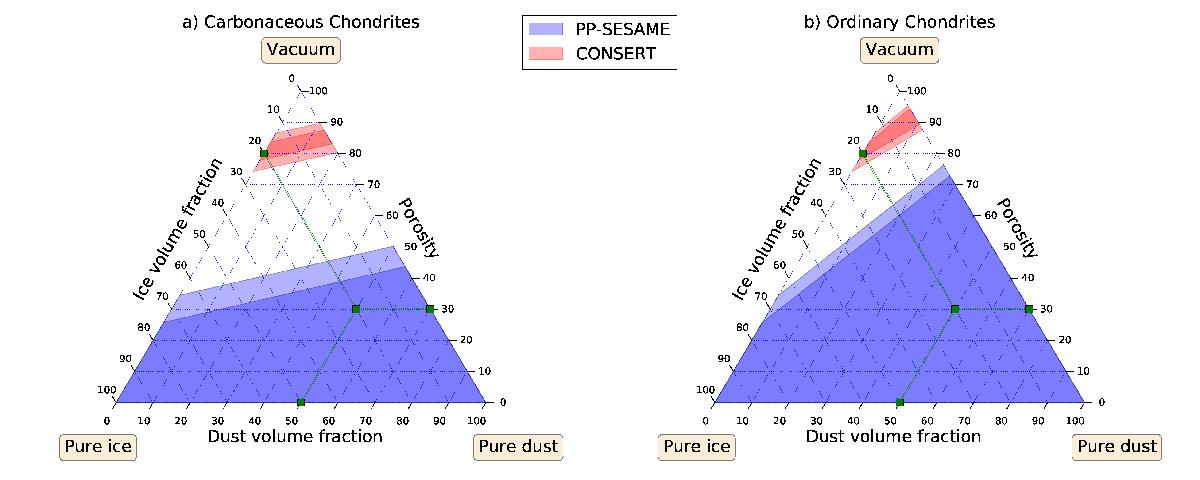

Fig. 13


Ternary diagram of dust, ice, and porosity volumetric fraction as derived from SESAME-PP (blue domain) and CONSERT (red domain) observations for carbonaceous a) and ordinary b) chondrites. The results from SESAME-PP are representative of the composition and porosity of the first meter of the 67P nucleus, while the results from CONSERT is an average for the first hundreds of meters of the interior of the small lobe of the comet. To help read this diagram, an example is shown (green squares) on the figure, corresponding to 30% porosity, 50% dust, and 20% ice. The region with a lighter blue or red color show the error on the inferred dielectric constants.
