Fig. 3

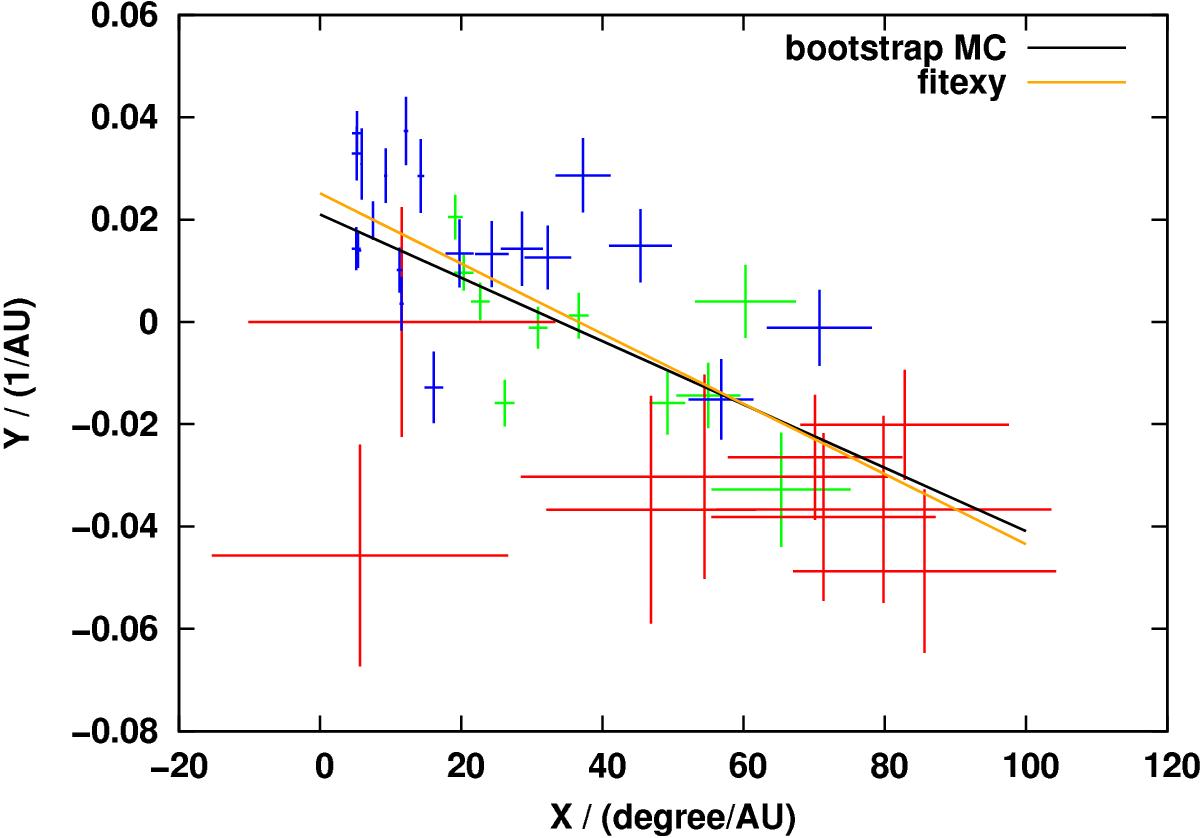

Y as a function of X (cf. Eq. (5)) for ~1.9 GV protons. See Fig. 2 for color coding. The lines show the results of the two different fit methods, with Gr = (2.14 ± 0.21)%/AU and Gθ = (−0.063 ± 0.006)%/deg for the bootstrap Monte Carlo approach (black), and Gr = (2.51 ± 0.16)%/AU and Gθ = (−0.069 ± 0.006)%/deg for the fit routine using the fitexy algorithm (orange).
