Fig. 9

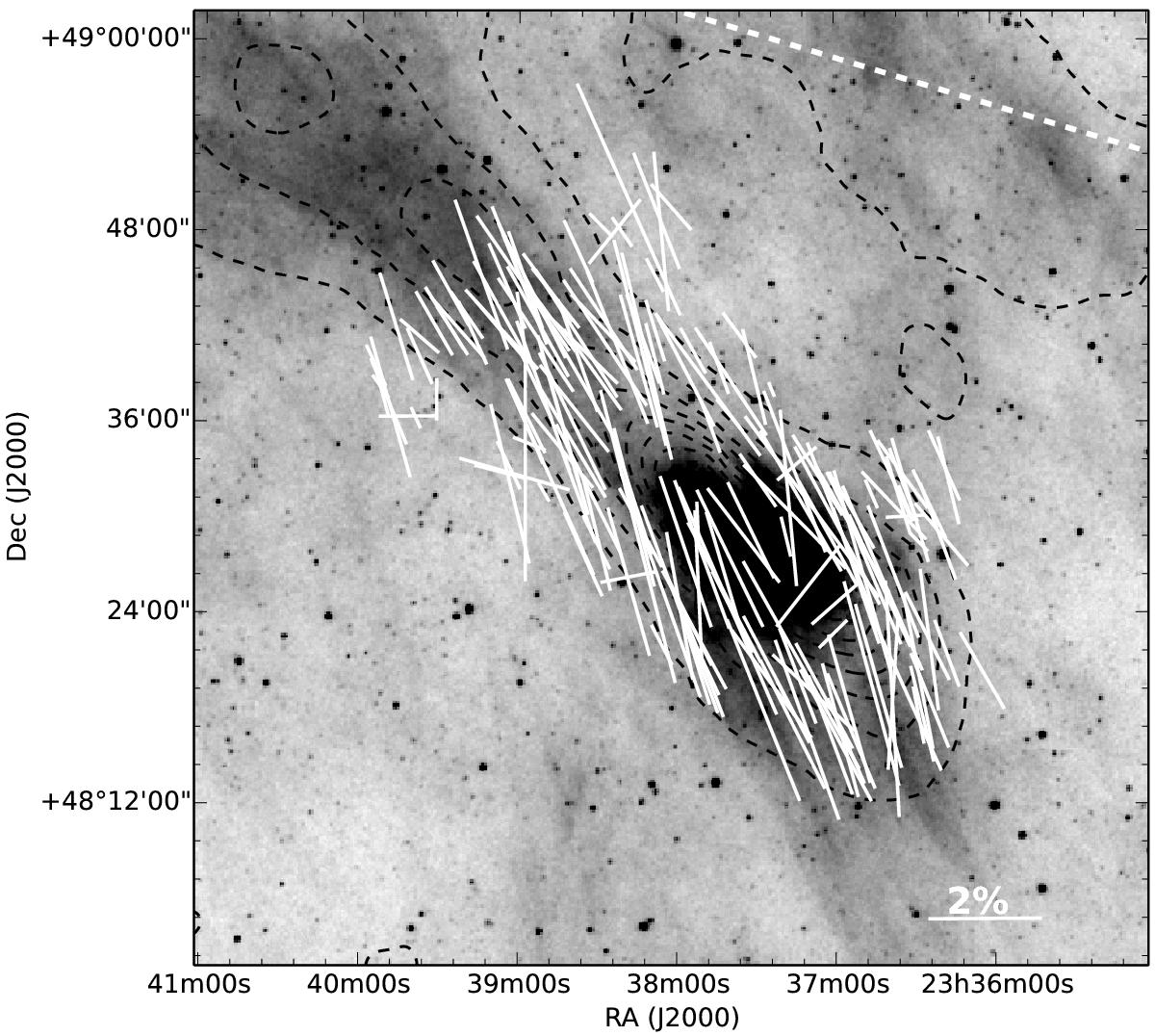

Polarization vectors are over plotted on the WISE 12 μm image of Gal 110-13. The IRAS 100μm contours are also overlayed on the image. The contours start from 6.0 MJy/sr to 31.2 MJy/sr in increments of 2.8 MJy/sr. The length of the vectors corresponds to the degree of polarization, and orientation corresponds to the position angle measured from the north and increasing toward the east. A vector corresponding to 2% polarization is shown for reference. The dashed line in white shows the orientation of the Galactic plane.
