Fig. 11

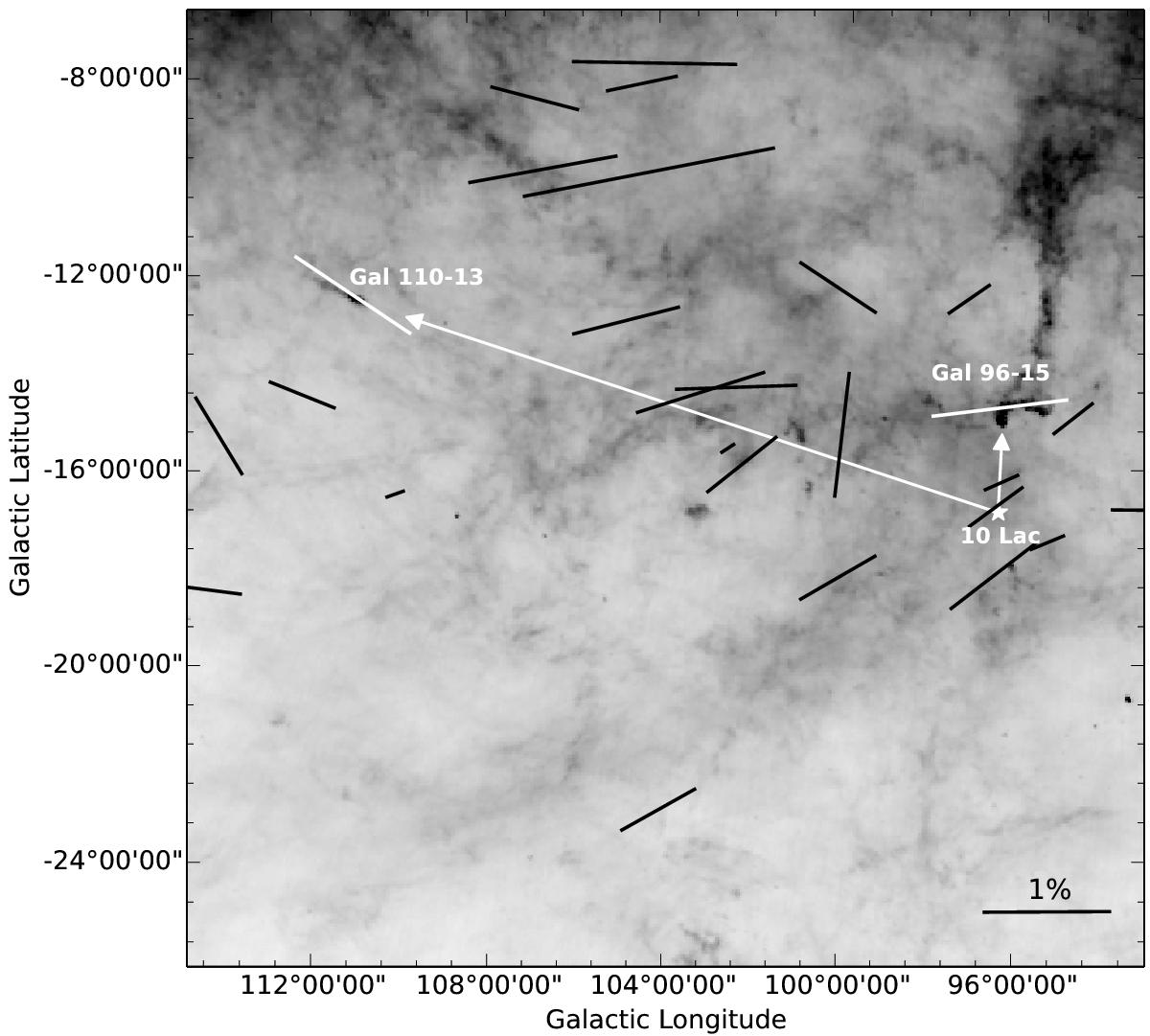

Region containing Gal 96-15, Gal 110-13, and 10 Lac are shown in the IRAS 100 μm image. The ambient magnetic field direction at the location of Gal 96-15 is drawn. The mean magnetic field direction corrected for the foreground interstellar contribution is drawn at the position of Gal 110-13. The arrows show the direction of propagation of ionizing radiation from 10 Lac toward Gal 96-15 and Gal 110-13. The vectors drawn in black are based on the polarization results obtained from the Heiles (2000) catalog. The length and the orientation of the vectors correspond to the degree of polarization and the position angles measured from the galactic north increasing to the east. A vector corresponding to 1% polarization is shown for reference.
