Fig. 4

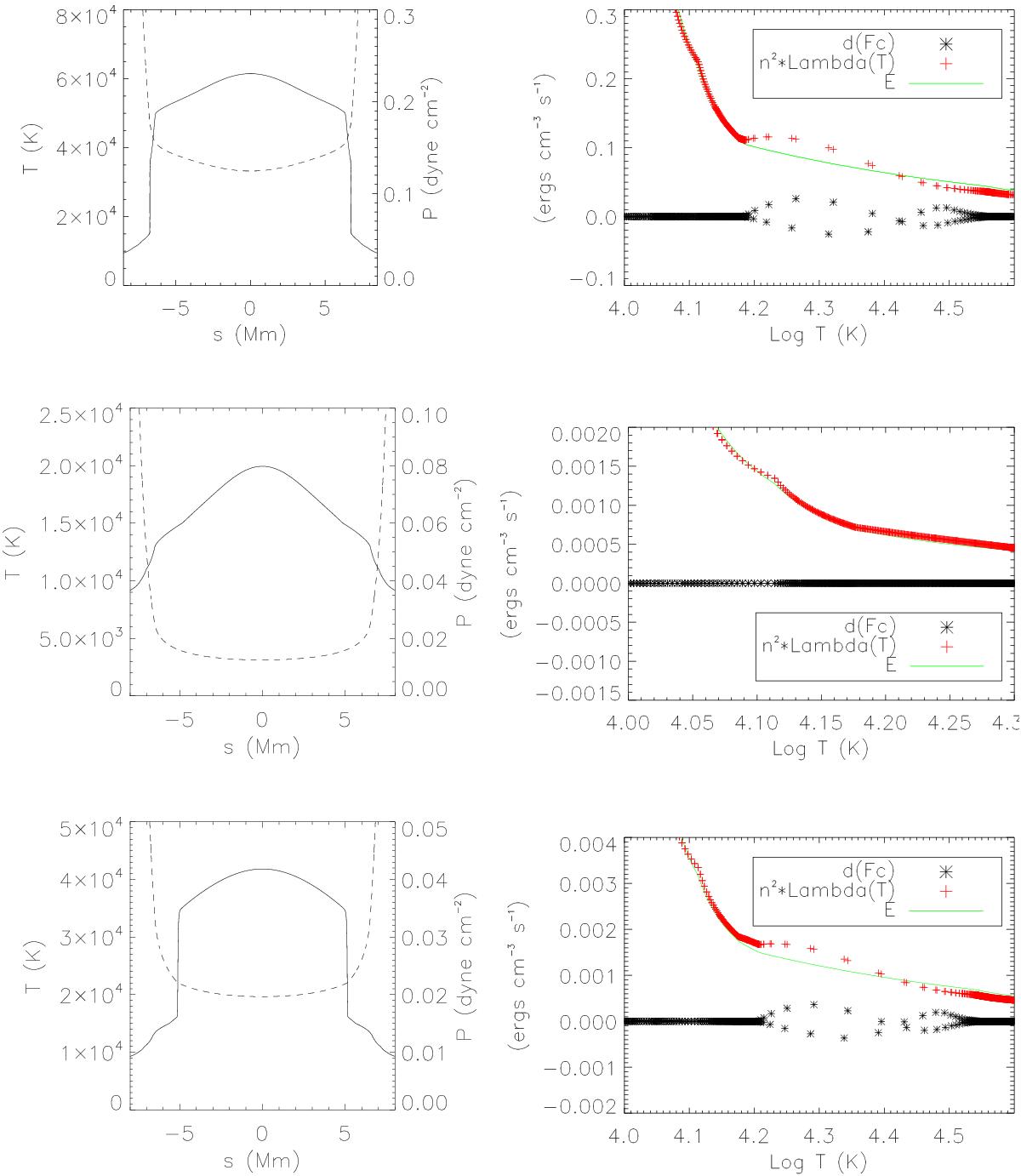

Top panel, left: temperature (solid line) and pressure (dashed line) as a function of the curvilinear coordinate along the field lines, s. Right: divergence of the conductive flux (asterisks), radiative losses (crosses) and heating rate, E (solid line), as a function of the temperature, for loop 13. Middle and bottom panels: as in the top panels for loops 16 and 22, respectively.
