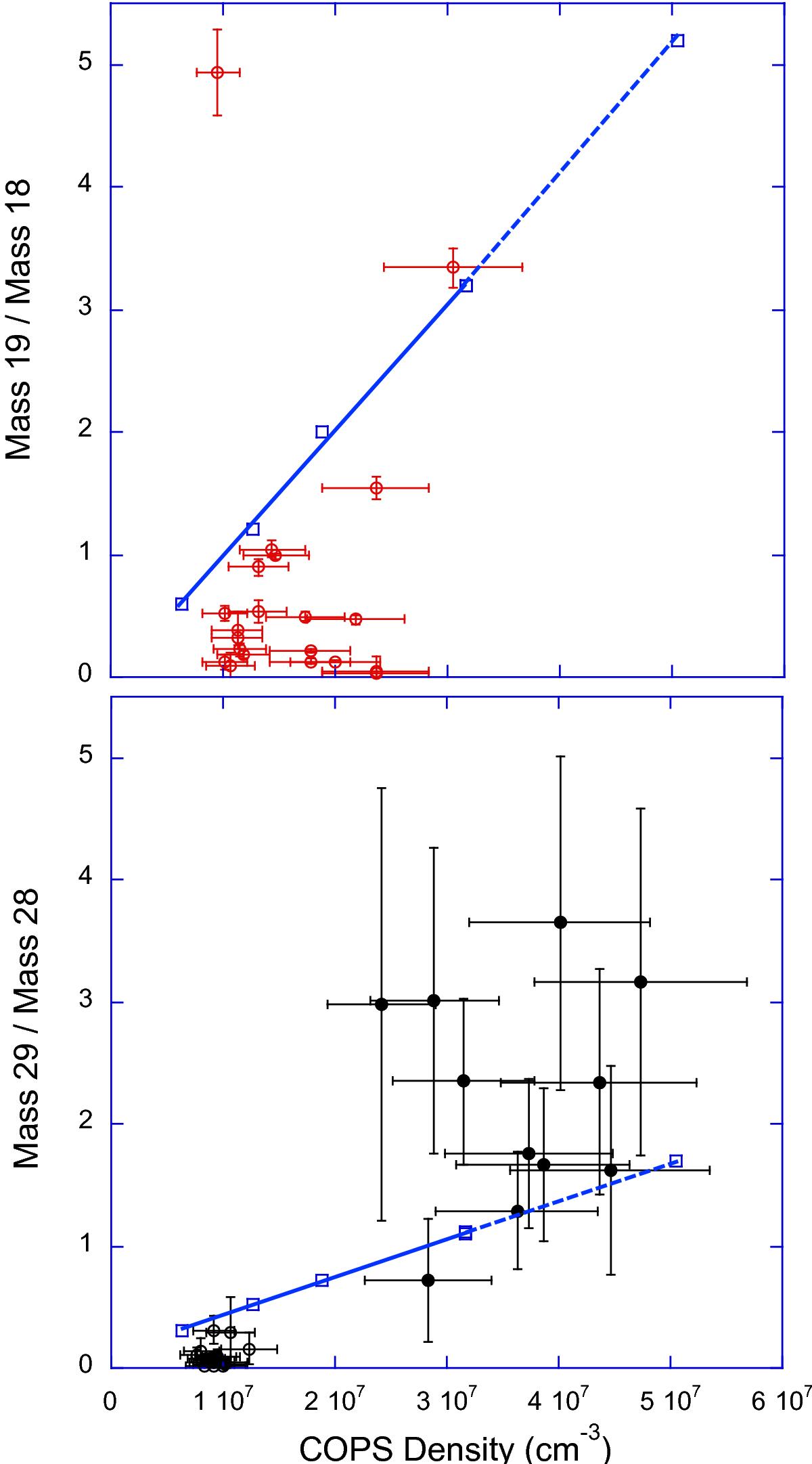

Fig. 7


Top panel: ion mass 19/mass 18 (H3O+/H2O+) and bottom panel: ion mass 29/mass 28 ((HCO+ and possibly C2H)/CO+) versus total neutral density at the Rosetta spacecraft. All measurements were made 30 km from the comet for the time intervals in Table 3. The H3O+/H2O+ ratio is mostly lower than 1 for neutral densities lower than about 2.5 × 107 cm-3. Similarly, the HCO+/CO+ ratio is much lower than 1 for total neutral densities near 1 × 107 cm-3. The low number densities of protonated molecules indicate that, at low outgassing rates, ion-neutral chemistry is weak in the coma. For higher outgassing rates, the HCO+/CO+ ratio can be much greater than 1, possibly indicating enhanced ion-neutral chemistry. The blue lines show results from the model in Sect. 5. The observed mass 19/mass 18 ratio is consistently lower than the predicted ratio while the observed mass 29/mass 28 ratio agrees well with the predicted ratio, particularly at higher total neutral densities.
