Fig. C.1


Download original image

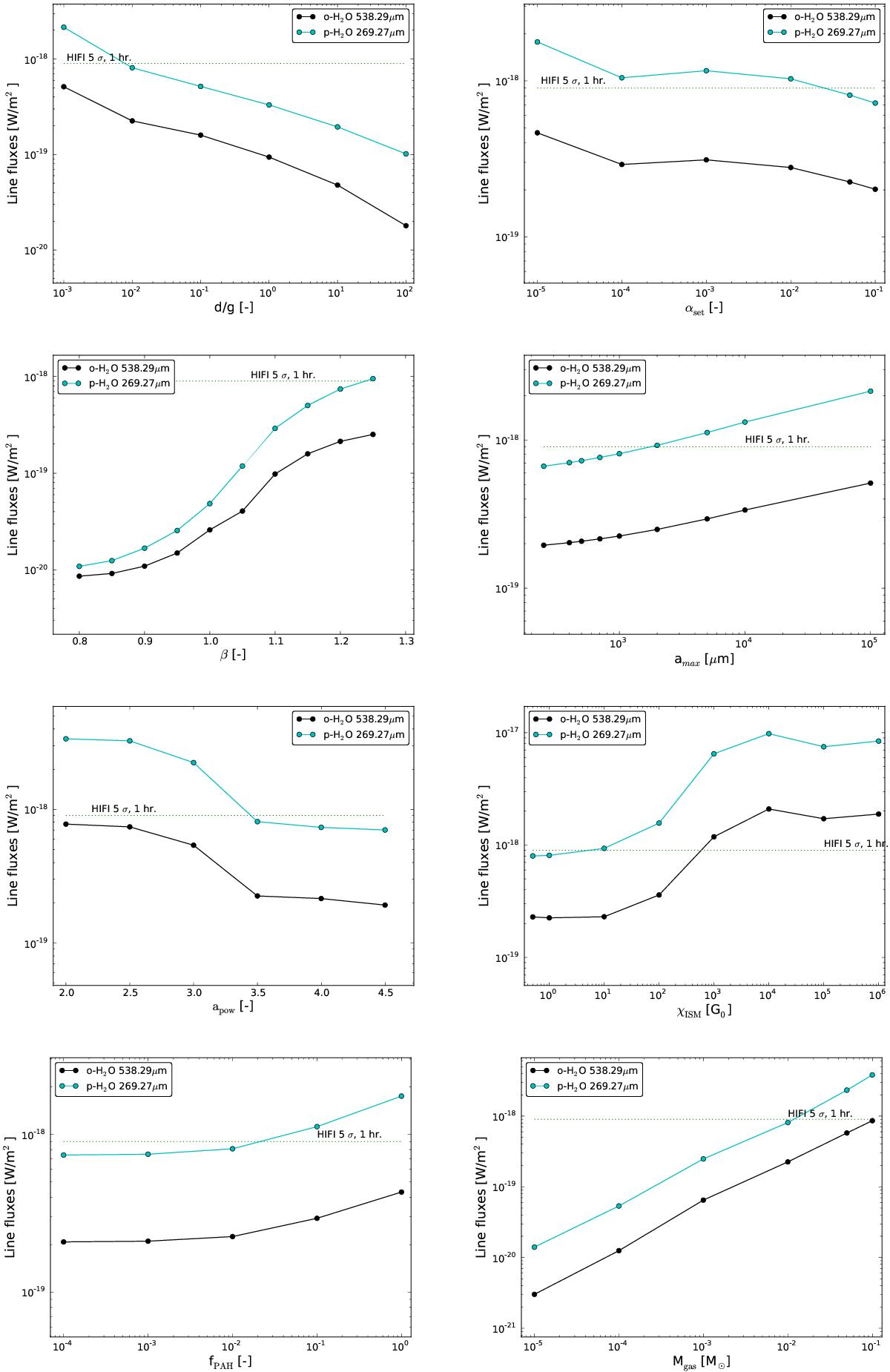

Line fluxes behavior for Herschel/HIFI lines 538.29 μm and 269.27 μm for different model series. First row left: dust-to-gas mass ratio, d/g. First row right: mixing parameter, αset. Second row left: disk flaring, β. Second row right: maximum grain size amax. Third row left: power law index of grain size distribution, apow. Third row right: strength of UV radiation field, χISM. Bottom left: PAH abundance, fPAH. Bottom right: disk gas mass, Mgas.

This figure is made of several images, please see below:
