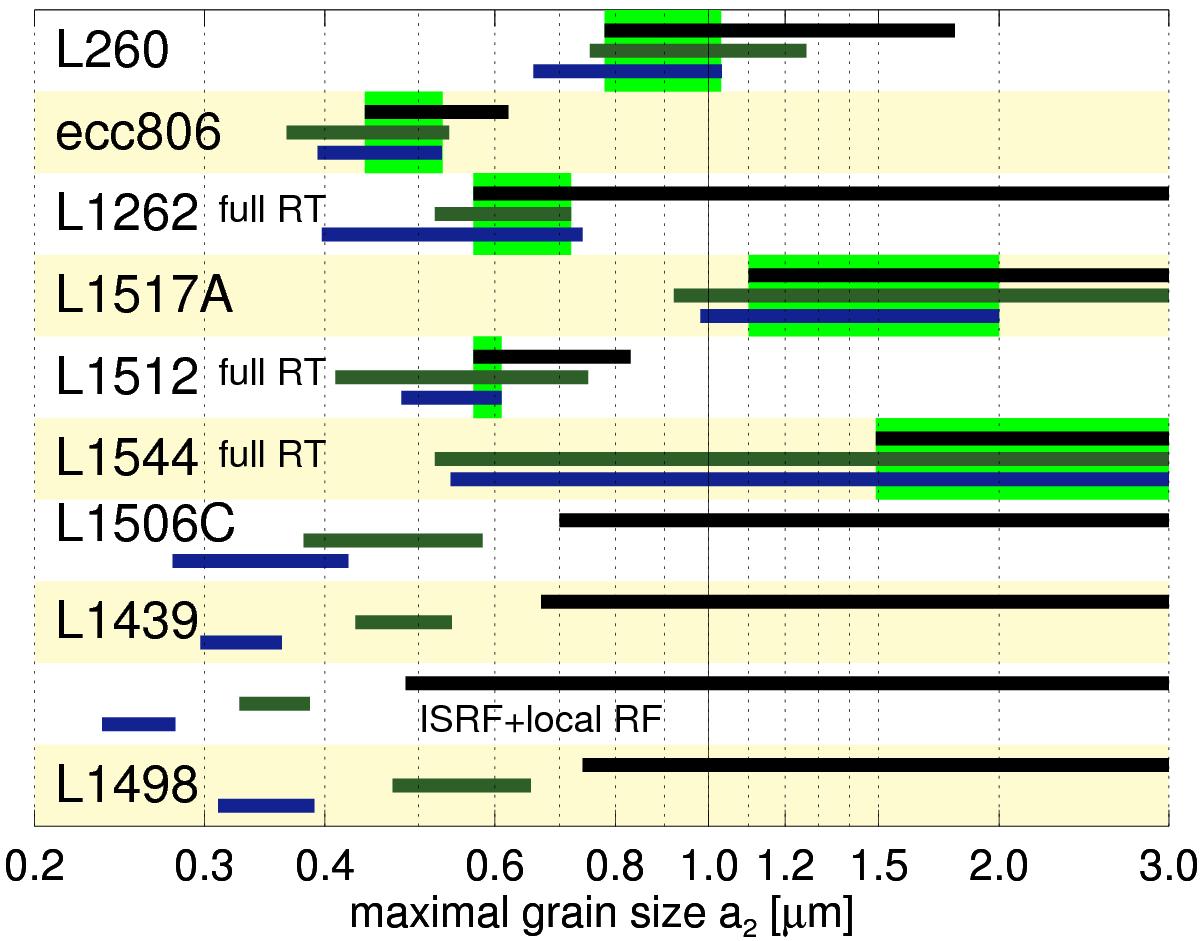

Fig. 15


Summary of the derived maximum grain size ranges for the modeled sources. The black bar gives the range where Rtheo is in the FWHM range of Robs, and the blue (green) bar shows the range for the model maximum coreshine to be within the observed maximum coreshine range at 3.6 (4.5) μm, respectively. For L1439, we also give size ranges for a model that includes a local radiation field. Light green boxes indicate ranges of agreement.
