Fig. A.2

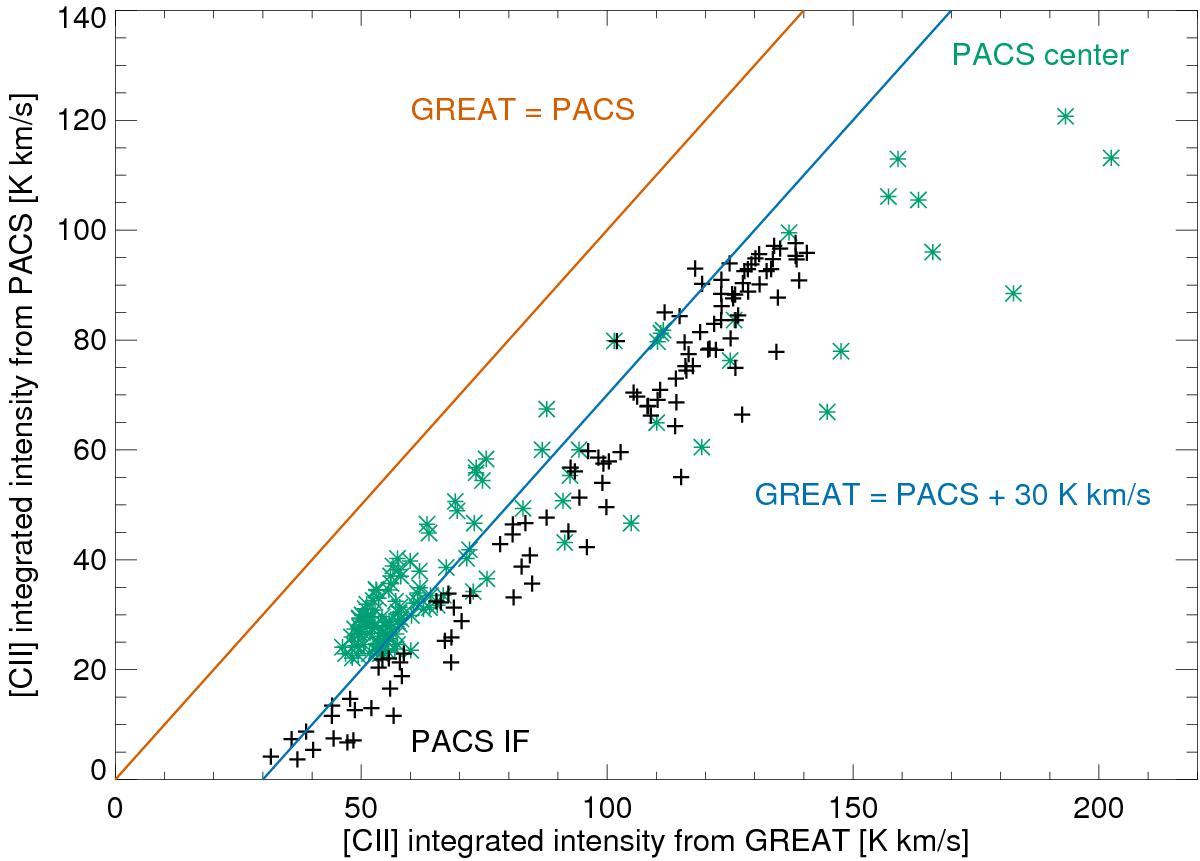

Measured intensities in the different pixels from Fig. A.1b as seen by GREAT and PACS. Green asterisks represent the footprint around IRS 1, black plus signs the footprint at the outer interface. The brown line shows the identity, the blue line represents an identity with an offset of 30 K km s-1.
