Fig. 5

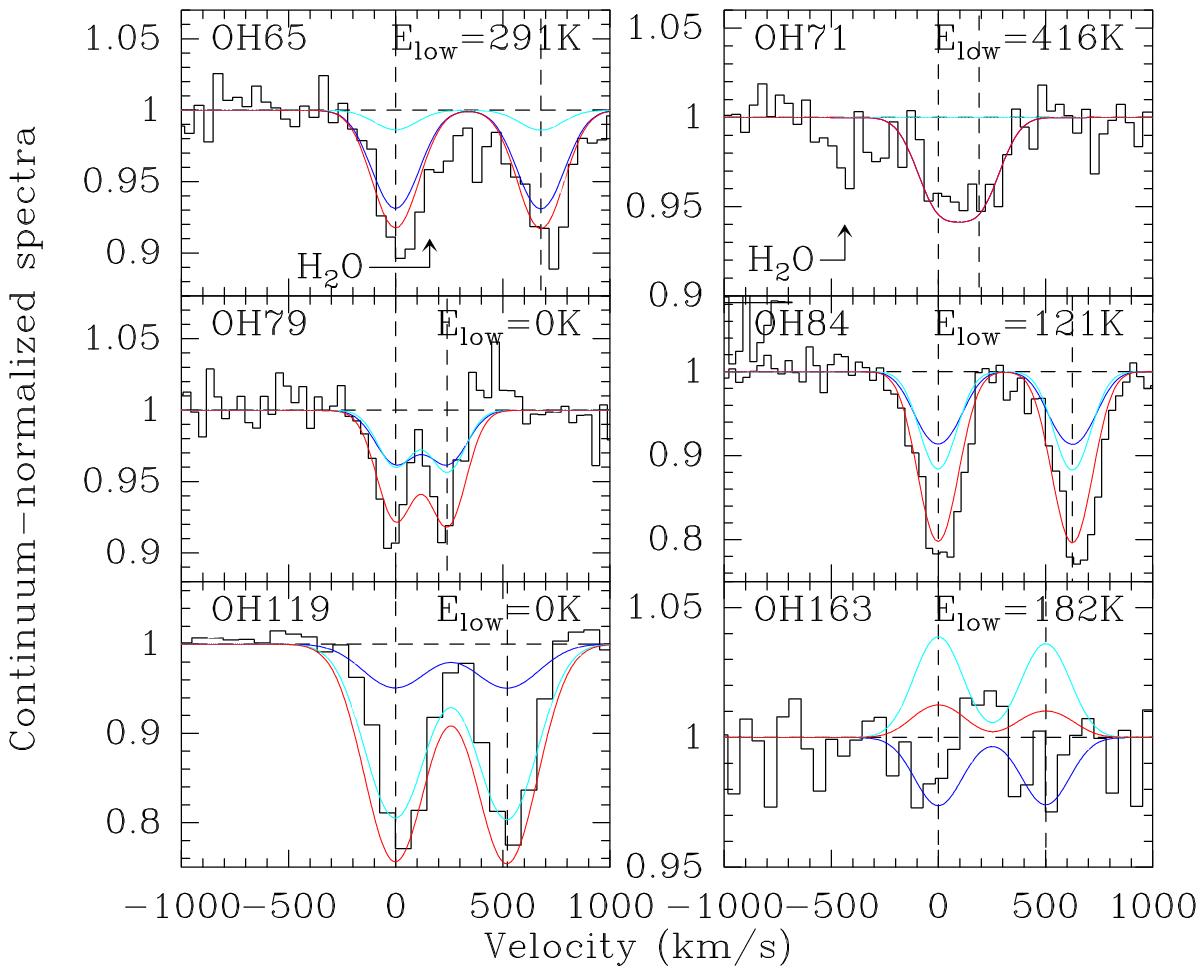

OH lines observed in Zw 049.057 with PACS. The black histograms are the observed, continuum-normalized, spectra. Model results from Sect. 3 are also included. The blue curve denotes the model for Ccore, which was first constrained using the high-lying H2O lines detected with PACS, but with an added OH column that was varied in order to also fit the high-lying OH lines. The light-blue curve denotes the model for Couter, which was first constrained using the H2O lines detected with SPIRE, but with an added OH column that was varied in order to also account for the residual flux in the low-lying OH lines. The red curve denotes the sum of these two models.
