Fig. 3

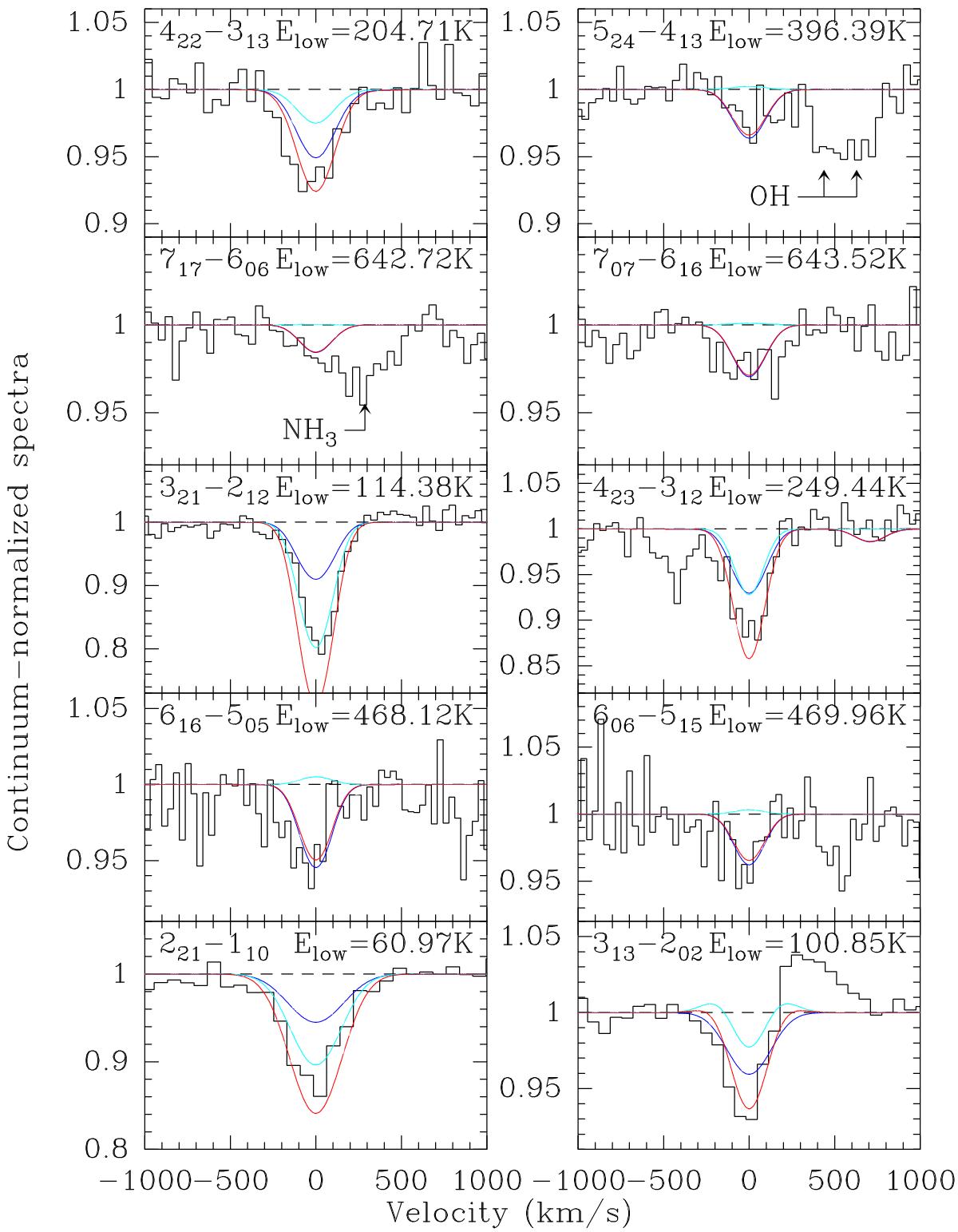

H2O lines observed in Zw 049.057 with PACS. The black histograms are the observed, continuum-normalized, spectra. Model results from Sect. 3 are also included. The blue curve denotes the model for Ccore, which was constrained using the high-lying H2O lines detected with PACS. The light-blue curve denotes the model for Couter, which was constrained using the H2O lines detected with SPIRE. The red curve denotes the sum of these two models.
