Fig. 8

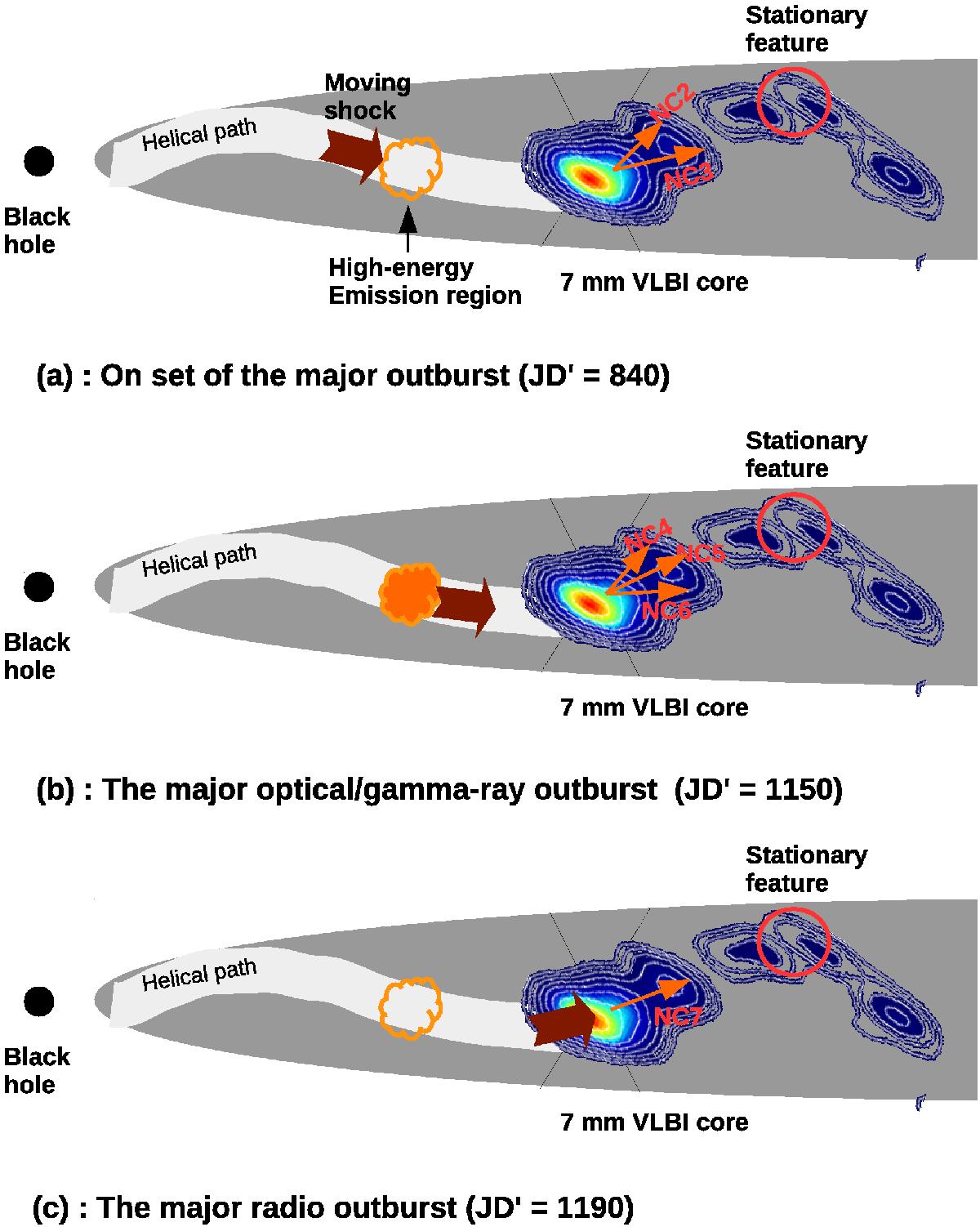

Sketch for the proposed scenario in the BL Lac S5 0716+714 (not to scale). North is to the right in this sketch. A shock propagates down the jet along a helical path, producing a major optical/γ-ray outburst upstream of the 7 mm VLBI core and later a major radio outburst accompanied by ejection of components from the core.
This figure is made of several images, please see below:
