Torsional Alfvén waves in solar magnetic flux tubes of axial symmetry
^{1} Group of Astrophysics, University of Maria CurieSkłodowska, ul. Radziszewskiego 10, 20031 Lublin, Poland
email: kmur@kft.umcs.lublin.pl
^{2} Central (Pulkovo) Astronomical Observatory, Russian Academy of Sciences, 196140 St. Petersburg, Russia
^{3} Department of Physics, University of Texas at Arlington, Arlington, TX 76019, USA
^{4} KiepenheuerInstitut für Sonnenphysik, Schöneckstr. 6, 79104 Freiburg, Germany
^{5} Department of Physics, Indian Institute of Technology (Banaras Hindu University), 221005 Varanasi, India
Received: 7 July 2014
Accepted: 25 March 2015
Aims. Propagation and energy transfer of torsional Alfvén waves in solar magnetic flux tubes of axial symmetry is studied.
Methods. An analytical model of a solar magnetic flux tube of axial symmetry is developed by specifying a magnetic flux and deriving general analytical formulas for the equilibrium mass density and gas pressure. The main advantage of this model is that it can be easily adopted to any axisymmetric magnetic structure. The model is used to numerically simulate the propagation of nonlinear Alfvén waves in such 2D flux tubes of axial symmetry embedded in the solar atmosphere. The waves are excited by a localized pulse in the azimuthal component of velocity and launched at the top of the solar photosphere, and they propagate through the solar chromosphere, the transition region, and into the solar corona.
Results. The results of our numerical simulations reveal a complex scenario of twisted magnetic field lines and flows associated with torsional Alfvén waves, as well as energy transfer to the magnetoacoustic waves that are triggered by the Alfvén waves and are akin to the vertical jet flows. Alfvén waves experience about 5% amplitude reflection at the transition region. Magnetic (velocity) field perturbations that experience attenuation (growth) with height agree with analytical findings. The kinetic energy of magnetoacoustic waves consists of 25% of the total energy of Alfvén waves. The energy transfer may lead to localized mass transport in the form of vertical jets, as well as to localized heating because slow magnetoacoustic waves are prone to dissipation in the inner corona.
Key words: Sun: atmosphere / Sun: magnetic fields / sunspots
© ESO, 2015
1. Introduction
The role of magnetohydrodynamic (MHD) waves in transporting energy and heating various layers of the solar atmosphere and the acceleration of the solar wind have been studied by many authors (e.g., Hollweg 1981, 1992; Hollweg et al. 1982; Priest 1982; Musielak 1998; Ulmschneider & Musielak 1998, 2003; Dwivedi & Srivastava 2006, 2010; Zaqarashvili & Murawski 2007; Gruszecki et al. 2008; Murawski & Musielak 2010; Ofman 2009; Chmielewski et al. 2013). Among the three basic MHD modes, Alfvén waves are of particular interest becuase they can carry their energy along magnetic field lines to higher atmospheric altitudes on fast temporal scales (e.g., Hollweg 1978, 1981, 1992; Musielak & Moore 1995; Cargill et al. 1997; Vasheghani Farahani et al. 2011, 2012).
The interest in Alfvén waves has recently increased significantly because of they are observed in the solar atmosphere. Several authors claim that they have already observed outwardly propagating Alfvén waves in the quiescent solar atmosphere in the localized solar magnetic flux tubes (e.g., Jess et al. 2009; Fujimura & Tsuneta 2009; Okamoto & De Pontieu 2011; De Pontieu et al. 2012; Sekse et al. 2013), while Van Doorsselaere et al. (2008) questioned the interpretation of Alfvén wave observations in the solar atmosphere. Specifically, Jess et al. (2009) interpret the Hα data in terms of torsional Alfvén waves in the solar chromosphere, with periods ranging from 2 min to nearly 12 min and with maximum power near 6−7 min. Torsional and swirllike motions were also reported by Bonet et al. (2008) and WedemeyerBöhm & Rouppe van der Voort (2009), respectively. According to Bonet et al. (2008), there are vortex motions of G band bright points around downflow zones in the photosphere, and lifetimes of these motions are on the order of 5 min. WedemeyerBöhm & Rouppe van der Voort (2009) observed disorganized relative motions of photospheric bright points and conclude that they induce swirllike motions in the solar chromosphere.
Different theoretical aspects of the generation, propagation, and dissipation of torsional Alfvén waves in the solar atmosphere were investigated by Hollweg (1978, 1981), Heinemann & Olbert (1980), and FerrizMas et al. (1989), who solved the Alfvén wave equations using different sets of wave variables. Musielak et al. (2007) demonstrate that the propagation of these waves along isothermal and thin magnetic flux tubes is cutofffree. However, Routh et al. (2007, 2010) show that gradients of physical parameters, such as temperature, are responsible for the origin of cutoff frequencies, which restrict the wave propagation to certain frequency intervals. In most of the above works, only linear (smallamplitude) Alfvén waves were considered.
Numerical studies of linear and nonlinear torsional Alfvén waves in solar magnetic flux tubes were performed by Hollweg et al. (1982), who considered a onedimensional (1D) model. The original work of Hollweg et al. was extended to higher dimensions by Kudoh & Shibata (1999) and Saito et al. (2001), who investigated the effects caused by nonlinearities. Fedun et al. (2011) show by means of numerical simulations that chromospheric magnetic fluxtubes can act as a frequency filter for torsional Alfvén waves. WedemeyerBöhm et al. (2012) used the observational results originally reported by WedemeyerBöhm & Rouppe van der Voort (2009) to demonstrate that the swirllike motions observed in the lower parts of the solar atmosphere produce magnetic tornadolike motions in the solar transition region and corona. However, more recent studies performed by Shelyag et al. (2013) seem to imply that the tornadolike motions actually do not exist once time dependence of the local velocity field is taken into account. Instead, the tornadolike motions were identified as torsional Alfvén waves propagating along solar magnetic flux tubes. Recently, WedemeyerBöhm & Rouppe van der Voort (2009) report on small, rotating swirls observed in the solar chromosphere and interpret them as plasma spiraling upwards in a funnellike magnetic structure. Chmielewski et al. (2014) and Murawski et al. (2014) modeled such shortlived swirls and associated plasma and torsional motions in coronal magnetic structures.
As a result of the expanding, curved, and strong magnetic field lines of solar magnetic flux tubes embedded in the solar atmosphere, formulating a model of such flux tubes is always a formidable task. Nevertheless, many efforts were undertaken in the past to develop realistic flux tube models. Among many others, we mention Low (1980) and Gent et al. (2013, and references therein), who constructed magnetic flux tube models in the solar atmosphere. In particular, Low (1980) formulated an analytical sunspot model, while Gent et al. (2013) solved the magnetohydrostatic equilibrium problem analytically. In this paper, we develop a model of a solar magnetic flux tube of axial symmetry. The model requires specifying a magnetic flux and gives analytical formulas for the equilibrium mass density and gas pressure. These formulas are general enough to be applied to any axisymmetric magnetic structure.
The main goal of this paper is to perform numerical simulations of nonlinear torsional Alfvén waves in our developed model of magnetic flux of axial symmetry tube embedded in the solar atmosphere with the temperature profile given by Avrett & Loeser (2008). We also study the energy transfer from Alfvén waves to slow magnetoacoustic waves in the nonlinear regime, as well as their reflection and transmission through realistic solar transition regions, which are significant in constituting vertical jet flows (mass) and localized energy transport processes in the inner corona. The paper is organized as follows. Our model of a solar magnetic flux tube of axial symmetry embedded in the solar atmosphere is developed in Sect. 2. The results of our numerical simulations are presented and discussed in Sect. 3. Conclusions are given in Sect. 4.
2. A model of a solar magnetic flux tube of axial symmetry
We consider a model solar atmosphere that is described by the following ideal, adiabatic, 3D magnetohydrodynamic (MHD) equations: where ϱ is mass density, V the flow velocity, and B the magnetic field. The standard notation is used for the other physical parameters, namely, p, T, γ = 5 / 3, μ, g = (0, − g,0), m, and k_{B} are the gas pressure, temperature, adiabatic index, magnetic permeability, mean particle mass, and Boltzmann’s constant, respectively. The magnitude of the gravitational acceleration is g = 274 m s^{2}. The value of m is specified by the mean molecular weight, which is 1.24 in the solar photosphere (Oskar Steiner, private communication) and assumed to be constant in the entire flux tube model.
We assume that the solar atmosphere is in static equilibrium (V_{e} = 0) with the Lorentz force balanced by the gravity force and the gas pressure gradient, which means that (5) where the subscript “e” corresponds to the equilibrium configuration. We consider an axisymmetric flux tube whose equilibrium is described by Eq. (5), and its magnetic field satisfies the solenoidal condition. We now introduce the magnetic flux (Ψ) normalized by 2π, and obtain (6)where B_{ey} is a vertical magnetic field component, and r is the radial distance from the flux tube axis given by (7)As a result of Eq. (6), the magnetic field is automatically divergencefree, and its radial (B_{er}), azimuthal (B_{eθ}) and vertical (B_{ey}) components are expressed as (8)We consider a magnetic flux tube of axial symmetry, which is initially nontwisted, and represent the tube magnetic field in terms of its azimuthal component of the vector potential () as (9)where is a unit vector along the azimuthal direction. In this case, we have (10)Comparing Eqs. (8) and (10), we find (11)In Cartesian coordinates, the magnetic vector potential components are (12)These formulas are useful for numerical simulations because they identically satisfy the selenoidal condition, which is important in controlling numerical errors.
Multiplying Eq. (5) now by B_{e}, we obtain (13)Since p_{e} = p_{e}(Ψ,y), therefore, from the above equation with the use of Eq. (8), we have (14)which means that the hydrostatic condition is satisfied along magnetic field lines and that Ψ = const.

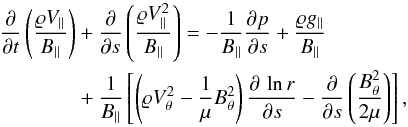

Rewriting Eq. (5) in its components and taking Eq. (8) into account, we obtain the socalled GradShafranov equation (e.g., Low 1975; Priest 1982) given by (15)If we consider the equilibrium gas pressure as a given function, then Eq. (15) becomes a nonlinear Dirichlet problem for Ψ. In contrast, Low (1980) proposed the inverse problem by specifying magnetic field through a choice of Ψ by integrating Eq. (15) and deriving the general formulas for p_{e} and ϱ_{e} given in terms of Ψ and its derivatives. In our approach, we regard y as a parameter, and after integrating Eq. (15) over Ψ, we find (Solov’ev 2010) (16)where (17)is the hydrostatic gas pressure, and (18)is the pressure scale height, and T_{h}(y) is a hydrostatic temperature profile.
We adopt T_{h}(y) for the solar atmosphere that is specified by the model developed by Avrett & Loeser (2008). This temperature profile is smoothly extended into the corona (Fig. 1). It should be noted that in our model the solar photosphere occupies the region 0 < y < 0.5 Mm, the chromosphere is sandwiched between y = 0.5 Mm and the transition region which is located at y ≃ 2.1 Mm. Above this height, the atmospheric layers represent the solar corona.
Fig. 1 Hydrostatic equilibrium profile of solar temperature.

Open with DEXTER
Fig. 2 Equilibrium magnetic field lines. Red, green, and blue arrows correspond to the x, y, and zaxes, respectively. The size of the box shown is (− 0.75,0.75) × (0,4) × ( − 0.75,0.75) Mm. The color map corresponds to the magnitude of a magnetic field.

Open with DEXTER

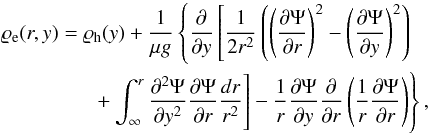

According to Eq. (14), the equilibrium mass density can be calculated if ∂p_{e}(y,Ψ) /∂y is known. Moreover, from Eq. (16), we get p_{e} = p_{e}(r,y). Thus, to find ∂p_{e}(y,Ψ) /∂y, we use the following relations that are valid for any differentiable function (S): However, it follows from Eq. (16) that we need to specify S(r,y) as (21)We calculate first ∂S(r,y) /∂r, and then use Eq. (19) to determine ∂S(y,Ψ) /∂Ψ. The result is (22)Using Eq. (20), we get (23)Finally, with help of Eq. (22), we write (24)with (25)the hydrostatic mass density.
Fig. 3 Equilibrium profiles of the Alfvén (solid) and sound (dashed) speeds (left panel) and plasma β (right panel) along the flux tube axis.

Open with DEXTER
In the above formulas, the magnetic flux (Ψ) and consequently the magnetic flux function (A) are free to choose. For a flux tube, we can specify them as where B_{y0} is the external magnetic field along the vertical direction, k_{r} and k_{y} are inverse length scales along the radial and vertical directions, respectively. The magnetic field lines, which follow from Eqs. (10) and (26), are displayed in Fig. 2 for k_{r} = k_{y} = 4 Mm^{1}. We choose the magnitude of the reference magnetic field B_{0} in such a way that the magnetic field within the flux tube, at (x = 0,y = 0.5,z = 0) Mm, is about 285 Gauss, and B_{y0} ≈ 11.4 Gauss. For these values, the resulting magnetic field lines are predominantly vertical around the line, x = z = 0 Mm, while farther out they are bent, and B_{e} decays with distance from this line. It must also be noted that the magnetic field at the top of the simulation region is essentially uniform with its value of B_{y0}.

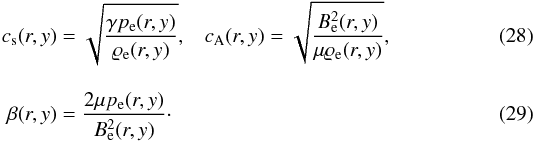

Figure 3 illustrates the sound speed, c_{s}, (left panel), Alfvén speed, c_{A}, (the same panel), and plasma β (in right panel) given by The sound speed below the transition region is less than 10 km s^{1}; however, it abruptly rises in the solar transition region, and then reaches its coronal value of 100 km s^{1} at the height y = 10 Mm (not shown in the figure). The Alfvén speed reveals similar trends, reaching a value of more than 700 km s^{1} at y = 10 Mm (also not shown). The coronal plasma β is ≈ 3 × 10^{2} at y = 4 Mm (right panel). It increases with the depth but remains lower than one above the height y ≈ 0.8 Mm. It should be noted that as a result of a strong magnetic field, β is lower within the flux tube than in the surrounding medium (not shown).
Fig. 4 Numerical blocks with their boundaries (solid lines) and the pulse in velocity V_{z} of Eq. (30) (color maps) in the xy plane for z = 0 Mm at t = 0 s. A part of the simulation region is only displayed.

Open with DEXTER
3. Results of numerical simulations

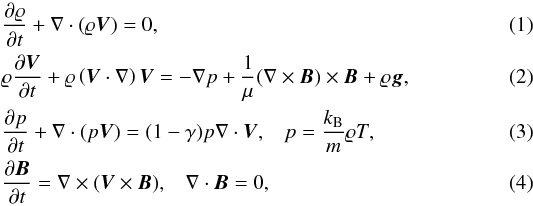

Equations (1)−(4) are solved numerically using the code FLASH (Lee & Deane 2009; Lee 2013). This code implements a thirdorder unsplit Godunov solver (Murawski & Lee 2011) with various slope limiters and Riemann solvers, as well as adaptive mesh refinement. We chose the van Leer slope limiter and the Roe Riemann solver (Murawski & Lee 2012). For all the considered cases, we set the simulation box as (−1.25,1.25) Mm × (0,20) × (−1.25,1.25) Mm, and impose boundary conditions by fixing all plasma quantities in time at all six boundary surfaces to their equilibrium values. In the present numerical studies, we use a nonuniform grid with a minimum (maximum) level of refinement set to 2 (5). The grid system at t = 0 s is shown in Fig. 4 with the blocks displayed only up to y = 6 Mm. Above this altitude, the block system remains homogeneous. Since each block consists of 8 × 8 × 8 identical numerical cells, we reach the effective finest spatial resolution of 19.53 km, below the altitude y = 4.25 Mm.
We initially perturb the azimuthal component of velocity, V_{θ}, by using (30)where A_{v} denotes the amplitude of the pulse, is the unit vector along the azimuthal direction, y_{0} is its vertical position, and w the width. We set A_{v} = 150 km s^{1}, w = 150 km, and y_{0} = 500 km, and hold them fixed. This value of A_{v} results in the effective maximum velocity of about 9.6 km s^{1} (Fig. 4).
Fig. 5 Magnetic field lines at t = 50 s (top left), t = 150 s (top right), t = 200 s (bottom left), and t = 250 s (bottom right). Red, green, and blue arrows denote the directions of the x, y, and zaxes, respectively. The size of the box shown is (− 0.75,0.75) × (0,4) × ( − 0.75,0.75) Mm. The color map corresponds to the magnitude of a magnetic field.

Open with DEXTER
Fig. 6 Spatial profiles of B_{z}(x,y,z = 0) associated with torsional Alfvén waves at t = 50 s (top left), t = 100 s (top right), t = 150 s (bottom left), and t = 200 s (bottom right). Only a part of the simulation region is displayed.

Open with DEXTER

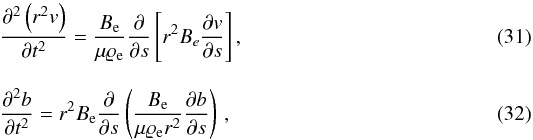

The initial velocity pulse of Eq. (30) triggers torsional Alfvén waves. These waves are illustrated in Fig. 5, which shows magnetic field lines at t = 50 s (topleft panel), t = 150 s (topright panel), t = 200 s (bottomleft panel), and t = 250 s (bottomright panel). At t = 50 s (topleft panel), the upwardly propagating Alfvén waves, while observed in B_{θ}, reach the altitude y ≈ 1 Mm, and at a later time Alfvén waves spread in space while propagating along diverged magnetic field lines (topright and bottom panels).
Smallamplitude magnetic field and velocity perturbations that include the effect of magnetic field expansion are governed by the following wave equations (Eqs. (3) and (4) in Hollweg 1981): where v = V_{θ}/r, b = rB_{θ}, V_{θ} and B_{θ} are the azimuthal components of respectively perturbed velocity and magnetic field, and s is the coordinate along the magnetic field lines.
Moran (2001) shows that , where A is the crosssectional area of the flux tube. Near the flux tube axis we can take AB_{e} to be approximately constant, so in that region . On the other hand, (Moran 2001). As a result, near the flux tube axis, these quantities only depend on the variation in ϱ_{e}, with V_{θ} and B_{θ} growing and decreasing with height, respectively. This means that the perturbations of magnetic field lines remain weak in the solar corona (see also Murawski & Musielak 2010 for the corresponding analysis in the case of the straight vertical magnetic field lines).
The ratio of magnetic to kinetic energies (evaluated in the entire computational domain) of Alfvén waves is shown in Fig. 7 (top). Initially, at t = 0 s, because we launch the initial pulse in the azimuthal velocity alone, the magnetic energy is zero at t = 0 s, but according to our numerical simulations, contributions of the magnetic energy grow in time. It is well known that for torsional Alfvén waves, there is the equipartition between potential and kinetic energies. According to top panel of Fig. 7, this equipartition of energy is therefore not reached in the numerical simulation until about t = 200 s (where the energy ratio equals unity). This is the natural explanation for the limiting value of the energy ratio being approximately unity at t = 200 s. At t = 225 s, the magnetic energy is higher than the kinetic energy with the ratio equal to ≈ 1.1. Ratios of slow magnetoacoustic waves energy to Alfvén waves energy and fast magnetoacoustic waves energy to Alfvén waves energy is illustrated in Fig. 7 (bottom). At t = 0 s, kinetic energies of both the slow and fast magnetoacoustic waves are zero, but since these waves are driven by the ponderomotive force that results from Alfvén waves, the energy ratio grows in time, reaching a maximum level of about 0.25, which means that about 25% of the Alfvén wave energy was converted into kinetic energies of slow magnetoacoustic waves. These waves propagate along magnetic field lines and power the vertical plasma flows in the form of the jets.
Figure 8 illustrates the maximum of V_{θ} (left panel) and B_{θ} (right panel) as evaluated from the numerical data. We clearly see that V_{θ} grows with height as predicted on the basis of the liner theory approximation reported by Moran (2001). On the other hand, B_{θ} exhibits a falloff with y with the numerical data points close to the linear theory data as reported by Moran (2001). It must also be noted that the relationships shown by Moran (2001) are only valid when there is the equipartition of energy for torsional Alfvén waves. According to top panel of Fig. 7, this occurs only because the time of our numerical simulations is t = 200 s or longer. Since the results of Fig. 8 are given for the times shorter than t = 200 s, then comparison of these results with the analytical findings of Moran (2001) is not strictly valid. This falloff is also clearly evident in the spatial profiles of B_{z}(x,y,z = 0) as displayed at t = 150 s and t = 200 s (Fig. 6, bottom panels). At t = 50 s and t = 100 s (top panels), the perturbations of B_{z}(x,y,z = 0) are localized below the transition region, but at later times, the perturbations that penetrate the inner solar corona have significantly lower magnitude than those remaining below the transition region. Consequently, these profiles demonstrate clearly that while traced in perturbed magnetic field lines, Alfvén waves are essentially located below the transition region, which agrees with the conclusions of Murawski & Musielak (2010), who used the analytical and numerical techniques for the 1D wave equations and found that while excited below the transition region, magnetic field perturbations remain weaker in the solar corona than the perturbations in lower atmospheric layers.
Fig. 7 Top panel: ratio of magnetic to kinetic energies of Alfvén waves; bottom panel: ratio of slow magnetoacoustic waves kinetic energy to Alfvén waves energy (asterisks) and ratio of fast magnetoacoustic waves kinetic energy to total energy of Alfvén waves (diamonds). These energies are evaluated by integration in space over the entire computational domain.

Open with DEXTER
Figure 9 shows temporal snapshots of velocity streamlines at t = 100 s (lefttop panel), t = 150 s (topright panel), t = 200 s (bottom left panel), and t = 225 s (bottom right panel). These streamlines are defined by the following equations: (33)A signal in the azimuthal velocity is clearly seen in the solar corona. Indeed, the streamlines show that velocity perturbations penetrate the transition region and enter the solar corona, leading to generation of the main centrally located vortex, which starts developing at t = 100 s.
Our results clearly show that the velocity perturbations are significantly enhanced in the solar transition region as a result of a very steep temperature gradient. The main physical consequence of this decrease is that in the inner corona, just above the transition region, we see the more velocity streamline perturbations (Figs. 9), while we do not see many perturbations of the azimuthal component of the magnetic fields (cf. Figs. 5, 6). In the linear limit, V_{θ} is governed by the wave equation of Eq. (31), which was derived by Hollweg (1981). This equation differs from Eq. (32), and this difference affects the evolution scenario of velocity perturbations.
Torsional Alfvén waves can be traced in the vertical profiles of V_{z}(x,y,z = 0) = V_{θ}(x,y,z = 0) (see Fig. 10). At t = 200 s (bottomright panel), the upwardly propagating Alfvén waves resulting from the initial pulse are seen well, with their amplitudes of  V_{z}  ≈ 16 km s^{1}. The downwardly propagating waves subside as discernible at t = 100 s (topright panel) and at t = 150 s (bottomleft panel). At t = 100 s, the upwardly propagating waves reach the altitude of more than y = 1.6 Mm as shown in topright panel of the figure.
As a result of nonlinearity, torsional Alfvén waves drive a vertical flow through a ponderomotive force (Hollweg et al. 1982; Nakariakov et al. 1997, 1998). We refer to Eq. (6) in Hollweg et al. (1982), which illustrates all the terms that contribute to the component of velocity that is parallel to a magnetic field line, V_{∥}. Denoting by s the distance measured along this line and by r(s) the distance of any point on this line from the yaxis, we restate Eq. (6) in Hollweg et al. (1982) as (34)where g_{∥} and B_{∥} are the components of, respectively, the gravitational acceleration and perturbed magnetic field along the magnetic field line, and V_{θ} and B_{θ} are azimuthal components of velocity and magnetic field, respectively. Following Hollweg et al. (1982), we state that the terms in the square brackets result from the s component of the Lorentz force: the first term denotes the scomponent of the centrifugal force that corresponds to twisting motions; the second term represents the magnetic tension; the third term is the magnetic pressure.
The vertical flow can be seen in the spatial profiles of V_{y}(x,y,z = 0) (Fig. 11, middle). At t = 400 s, slow magnetoacoustic waves in a low plasma β region of the magnetic flux tube of axial symmetry as displayed in the righthand panel of Fig. 3 are weakly coupled to fast magnetoacoustic waves, which are described essentially by only the V_{y} component of the velocity. Our simulations demonstrate that at t = 175 s, slow magnetoacoustic waves have already penetrated the solar corona, reaching the level higher than y = 4.5 Mm.
It is noteworthy that nonlinear torsional Alfvén waves drive perturbations in a mass density, which are associated with fast (Fig. 11, top) and predominantly slow (Fig. 11, middle) magnetoacoustic waves. The vertical spatial profile of log (ϱ(x,y,z = 0) /ϱ_{0}) is shown at t = 225 s in bottom panel of Fig. 11. Here ϱ_{0} = 10^{12} kg m^{3} is the hydrostatic mass density at the level y = 10 Mm. At this time, the dense plasma jets reach the altitude of y ≈ 3.5 Mm. The plasma is lifted up by the magnetic pressure gradient originating in the Alfvén waves and acts against the gravity to push the chromospheric material up to the inner solar corona. Therefore, such predominant vertical pressure can create the cool plasma jet flows typically observed in the solar corona.
Fig. 8 Maximum of V_{θ} (left panel) and B_{θ} (right panel) vs. height. The numerical (analytical) data points are represented by asterisks (solid line).

Open with DEXTER
Fig. 9 Streamlines at t = 100 s (top left), t = 150 s (top right), t = 200 s (bottom left), and t = 225 s (bottom right). Red, green, and blue arrows denote the directions of the x, y, and zaxes, respectively. The size of the box shown is (− 0.75,0.75) × (0,6) × ( − 0.75,0.75) Mm. The color map corresponds to the magnitude of a total velocity.

Open with DEXTER
Fig. 10 Spatial profiles of V_{z}(x,y,z = 0) associated with torsional Alfvén waves at t = 50 s (topleft panel), t = 100 s (topright panel), t = 150 s (bottomleft panel), and t = 200 s (bottomright panel).

Open with DEXTER
Figure 12 displays the time signatures of V_{z} and V_{y} collected at the detection point, (x = 0.2,y = 3.5,z = 0.2) Mm. We infer that slow magnetoacoustic waves, represented by V_{y}, reach the detection point at t ≈ 130 s, while Alfvén waves arrive at this point about 30 s earlier.

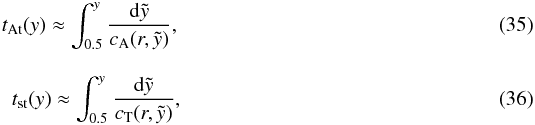

After noting that up to y ≈ 0.7 Mm Alfvén speed is lower than the sound speed (Fig. 3, left), the travel times of the torsional Alfvén, t_{At}(y), and slow magnetoacoustic waves, t_{st}(y), are given by where the integration is performed along the corresponding magnetic field line, and is the tube speed. Using Eqs. (35) and (36), we find t_{At}(y = 1.9) ≈ 157.7 s and t_{st}(y = 1.9) ≈ 173.3 s. These values are higher than the arrival times of Alfvén and slow magnetoacoustic waves. This dispatch results from nonlinearity.
The amplitude of the Alfvén waves, seen in V_{θ}, penetrating the upper region of the atmosphere drops from about V_{θ} = 9 km s at t = 100 s just under the transition region, through V_{θ} = 8.4 km s^{1} just above the transition region. We can evaluate the transmission coefficient, (37)where A_{i} (A_{t}) is the amplitude of the incident (transmitted) waves. Substituting A_{i} = 9 km s and A_{t} = 8.4 km s into the above formula, we get C_{t} ≈ 0.95, which means that about 5% of the waves’ amplitude became reflected in the transition region, and about 95% was transmitted into upper atmospheric layers. These are rough estimates owing to difficulties with precise estimation of wave amplitudes that vary in time a lot at the transition region.
Fig. 11 Spatial profiles of V_{x}(x,y,z = 0) at t = 100 s (top), V_{y}(x,y,z = 0) at t = 175 s (middle) and log (ϱ(x,y,z = 0) /ϱ_{0}) at t = 225 s (bottom), where ϱ_{0} = 10^{12} kg m^{3} is the hydrostatic mass density at the level y = 10 Mm.

Open with DEXTER
Fig. 12 Time signatures of velocities V_{z} (solid line) and V_{y} (dashed line), collected just below the transition region at the detection point (x = 0.1,y = 1.9,z = 0.1) Mm.

Open with DEXTER
4. Discussion and conclusions
In this paper, we present an analytical model of a magnetic flux tube of axial symmetry embedded in the solar atmosphere whose photosphere, chromosphere, and transition region are described by the model of Avrett & Loeser (2008). Our flux tube model can be adopted easily to any axisymmetric magnetic structure by specifying a different magnetic flux. The model was used to perform numerical simulations of the propagation of torsional Alfvén waves and their coupling to magnetoacoustic waves by using the FLASH code. Torsional Alfvén waves are launched at the top of the solar photosphere by an initial localized pulse in the azimuthal component of velocity. This pulse mimics the convectively excited photospheric vortices or any other kind of plasma rotatory motions recently observed in the solar atmosphere (see Sect. 1 for references and discussion).
Our results show the complex behavior of torsional Alfvén waves and the driven magnetoacoustic waves, and their responses in the solar chromosphere, transition region, and inner corona. The time and spatial evolution of Alfvén waves shown by our numerical results is akin to the dynamics of fast solar swirling motions observed in the form of various jets at diverse spatiotemporal scales. Therefore, our model presented here potentially describes the physics of various observed and recurring swirling motions (jets) in the solar atmosphere in which the driver excites torsional Alfvén waves, as well as the associated plasma perturbations (e.g., WedemeyerBöhm et al. 2012; Murawski et al. 2014, and references cited therein).
Since in our model the solar magnetic flux tube of axial symmetry is strongly magnetized in the solar photosphere, it can be associated either with strong magnetic bright points (MBPs; Jess et al. 2009) or with the concentration of the magnetic field between intergranular lanes (WedemeyerBöhm et al. 2012). With the use of the Swedish Solar Telescope, Jess et al. (2009) observed the periodic variations above such MBPs in the detected (at different altitudes) Doppler widths of the H_{α} line. The authors claim that their findings reveal the presence of the propagating torsional Alfvén waves with their wave periods of 2−12 min up to the top of the solar chromosphere in the expanding wave guide rooted in the strongly magnetized MBP. Clearly, our developed model can be used to excite torsional Alfvén waves and to compare the theoretically predicted range of wave frequencies to that established observationally. Indeed, this was one of the main goals achieved in our paper and we found the theoretical wave periods to be smaller than 100 s (Fig. 12), which are close to the observational findings of Jess et al. (2009).
Our numerical results also show that the excited perturbations in azimuthal component of the magnetic field (Fig. 6) are seen below the solar transition region. However, in the inner corona, these perturbations have a significantly lower amplitude. On the other hand, the perturbations in azimuthal component of velocity are stronger in the solar corona.
Finally, we would like to point out that our analytical model can easily be adopted to derive the equilibrium conditions for any axisymmetric 3D magnetic structure. Our devised numerical model of the solar magnetic flux tube of axial symmetry can be applicable to the variety of flux tubes with different photospheric fields and different expansions, as well as with different strengths of the drivers. The model can also be used to investigate the nonlinear evolution of coupled torsional Alfvén and magnetoacoustic waves and to determine and understand drivers of coronal jets.
