Fig. B.1

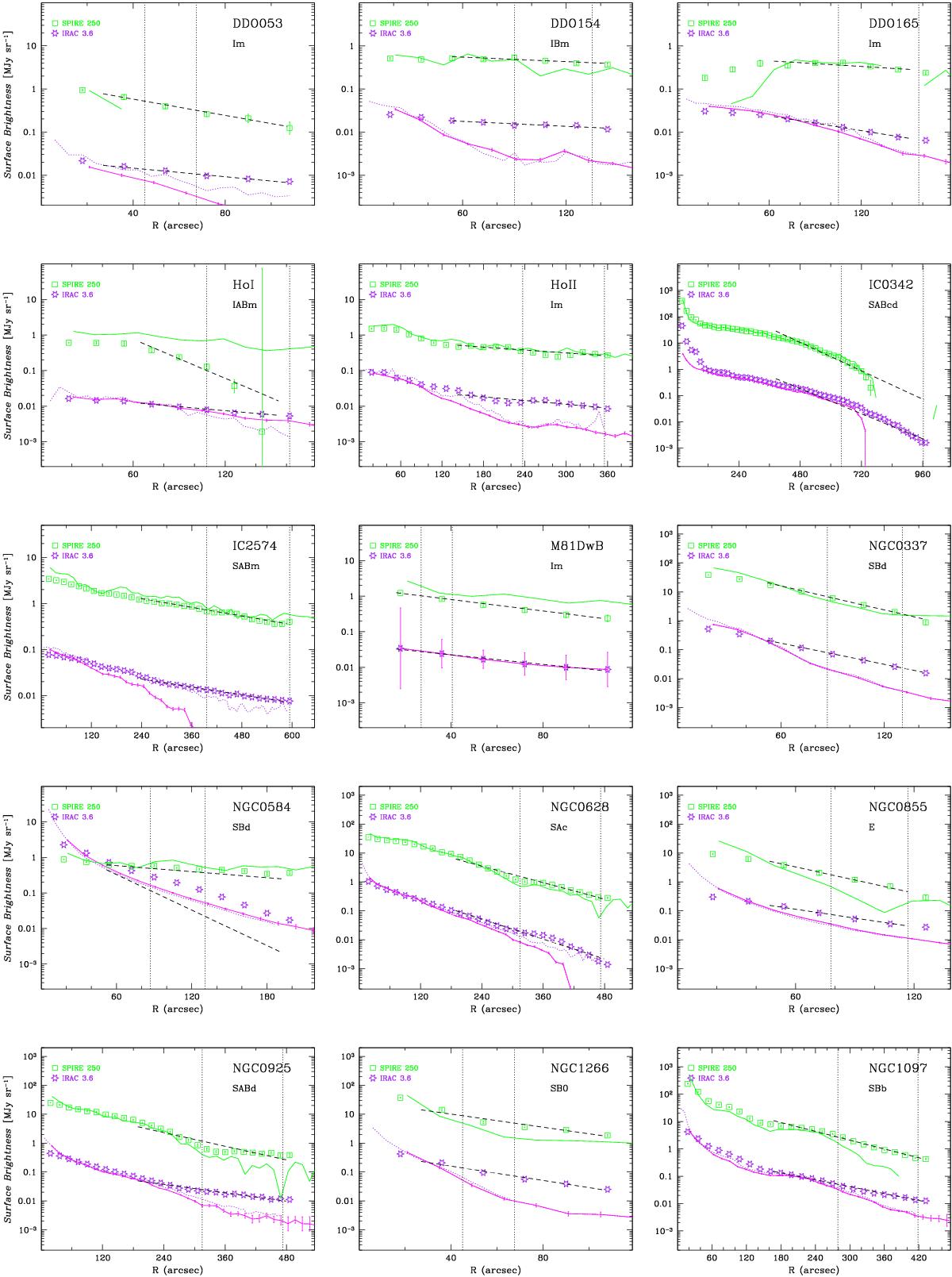

Surface brightness profiles at SPIRE 250 μm and IRAC 3.6 μm. The profiles with convolution (see Aniano et al. 2012) are shown by symbols (green) open squares, 250 μm, and ((purple) open stars, 3.6 μm). The Muñoz-Mateos et al. (2009a) IRAC profiles are shown by a dotted curve, and the IRAC and 250 μm profiles extracted without convolution (and with different methods of sky subtraction) are shown by solid curves. The dashed lines indicate the best-fit disk model fitted from 0.6*Ropt. The vertical dotted lines indicate the optical radius, Ropt, and 1.5 Ropt.
