Fig. B.3

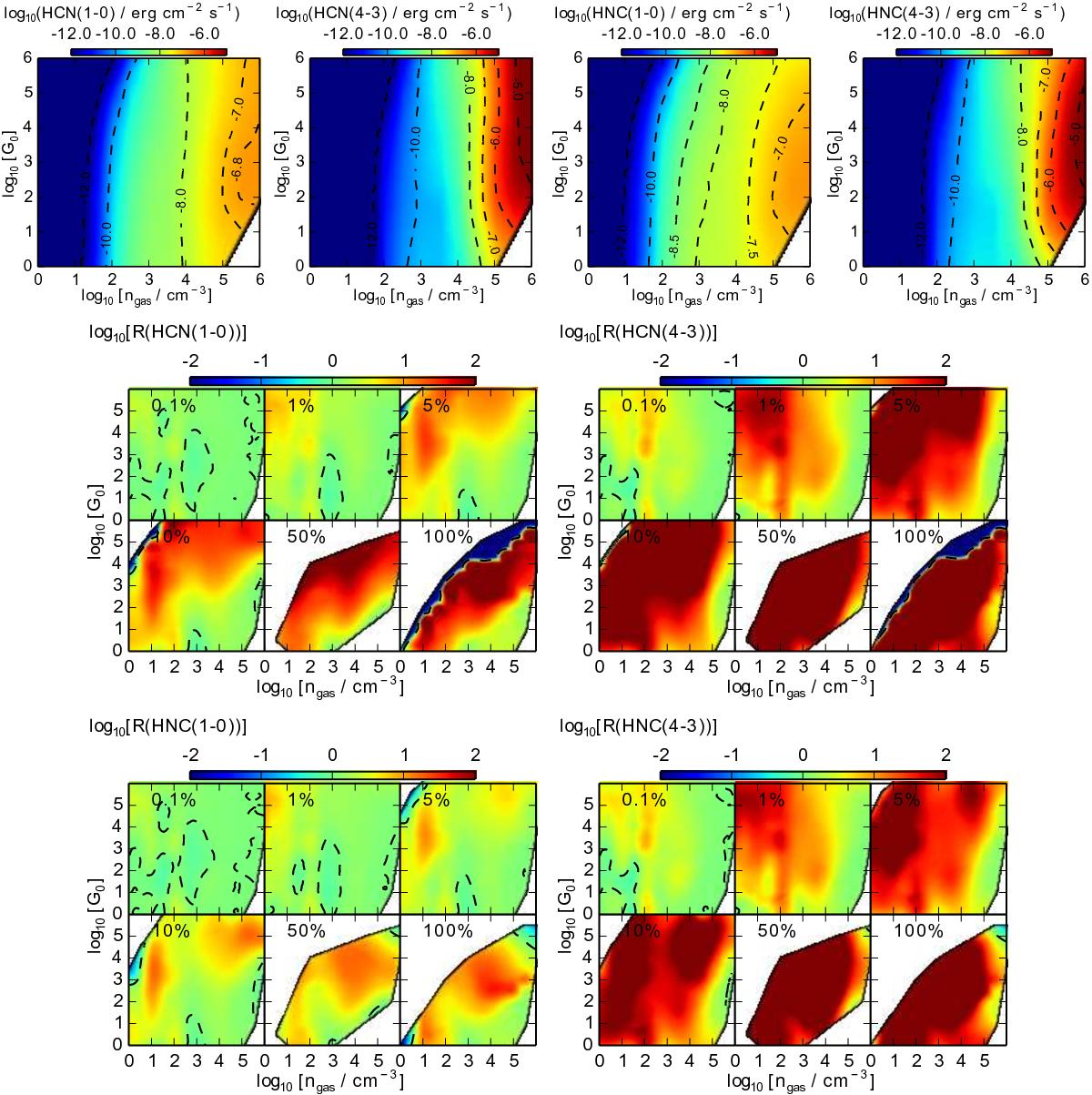

Top: emission grids of PDR models without mechanical heating for a selection of HCN and HNC transitions for AV = 10 mag (Z = Z). Bottom: relative changes in the emission as a function of α. The dashed contour traces the R = 1 line, where the emission with and without extra heating are the same. (See caption of Fig. 4.)

This figure is made of several images, please see below:
