RadioAstron as a target and as an instrument: Enhancing the Space VLBI mission’s scientific output
^{1} Joint Institute for VLBI in Europe, PO Box 2, 7990 AA Dwingeloo, The Netherlands
email: duev@jive.nl
^{2} Sternberg Astronomical Institute, Lomonosov Moscow State University, Universitetsky av. 13, 119991 Moscow, Russia
^{3} Keldysh Institute for Applied Mathematics, Russian Academy of Sciences, Miusskaya sq. 4, 125047 Moscow, Russia
^{4} Metsähovi Radio Observatory, Aalto University, 02540 Kylmälä, Finland
^{5} Department of Astrodynamics and Space Missions, Delft University of Technology, 2629 HS Delft, The Netherlands
^{6} Shanghai Astronomical Observatory, 80 Nandan Road, 200030 Shanghai, PR China
Received: 7 September 2014
Accepted: 26 October 2014
Context. The accuracy of orbit determination has a strong impact on the scientific output of the Space VLBI mission RadioAstron.
Aims. The aim of this work is to improve the RadioAstron orbit reconstruction by means of sophisticated dynamical modelling of its motion in combination with multistation Doppler tracking of the RadioAstron spacecraft.
Methods. The improved orbital solution is demonstrated using Doppler measurements of the RadioAstron downlink signal and by correlating VLBI observations made by RadioAstron with groundbased telescopes using the enhanced orbit determination data.
Results. Orbit determination accuracy has been significantly improved from ~600 m in 3D position and ~2 cm/s in 3D velocity to several tens of metres and mm/s, respectively.
Key words: astrometry / techniques: interferometric / instrumentation: interferometers / instrumentation: miscellaneous
© ESO, 2015
1. Introduction
The Russian Federal Space Agency’s RadioAstron mission uses a tenmetre parabolic antenna on board a dedicated SpektrR spacecraft, which was launched into a highly elliptical orbit in July 2011 to perform observations of galactic and extragalactic radio sources as a spaceborne component of a Space Very Long Baseline Interferometry (SVLBI) system (Kardashev et al. 2013).
Accurate knowledge of the spacecraft position is paramount for successful SVLBI observations. The mission’s nominal orbit determination (OD) accuracy provided by the Ballistic Centre of the Keldysh Institute of Applied Mathematics of the Russian Academy of Sciences (KIAM) is at the level of ~600 m in 3D position and ~2 cm/s in 3D velocity for the final orbit model available two to three weeks after any given date. This level of accuracy does allow SVLBI response (socalled fringes) to be detected in many cases, but is a limiting factor for advanced scientific applications, in particular, because of the unknown acceleration of the spacecraft.
The main factors determining the complicated orbital dynamics of RadioAstron include:

1.
The necessity of regularly (about once a day) unloading thereaction wheels by firing thrusters, which perturbs the orbit. Thereaction wheels experience a high load due to solar radiationpressure (SRP) exerted on the spacecraftstructure, especially the 10 m radiotelescope’s antenna.

2.
The orbit of the spacecraft being perturbed by the Moon. It was designed this way to allow various parts of the sky to be observed on a range of baselines during the mission lifetime, but at the cost of additional complications in orbit determination.
Highaccuracy orbit determination opens new scientific opportunities for RadioAstron. In particular, the current experience with RadioAstron suggests that its performance at the highest observing frequency of 22 GHz is limited by the orbit determination accuracy. Precise spacecraft statevector determination will ensure the high sensitivity of RadioAstron necessary for tasks such as VLBI polarimetry at 22 GHz. SVLBI polarimetry at this frequency offers the potential for probing magnetic field structure in extragalactic relativistic jets on spatial scales never probed before.
In RadioAstron OD, data obtained from groundtracking stations and onboard measurements are utilised. Routine tracking is performed by two Russian stations – near Ussuriysk with a 70 m antenna and at Bear Lakes with a 64 m antenna. The data usually contain twoway range and Doppler observations (uplink frequency – 5.7 GHz, downlink – 3.4 GHz). The RadioAstron spacecraft is equipped with an Hmaser frequency standard, which supports VLBI data acquisition and provides stable heterodyne reference for 8.4 GHz and 15 GHz downlink signals. The latter carries down the encoded observational data of the space radio telescope. During observations of a radio source, both signals are transmitted to a receiving station on Earth, either in Pushchino, Russia (station code Pu), or in Green Bank, West Virginia, USA (station code Gn). In the nominal regimes of RA operation that are used most often, a station observes both 8.4 and 15 GHz signals thereby enabling estimates of oneway Doppler. The other nominal regime when RA operates in a twoway mode implies no use of the onboard Hmaser. The spacecraft also features an array of retroreflectors suitable for laser tracking. However, laser tracking is performed only occasionally, since among other conditions, it requires certain and not always attainable attitude of the spacecraft and favourable weather conditions. In addition, optical observations of RA spacecraft provide another OD data source.
Onboard measurements generally feature attitude quaternions, rotation speeds of the reaction wheels, and operation parameters of thruster firings during an unloading, such as times of execution, duration, and mass of spent propellant. Attitude data are the most important since the direction of the change in spacecraft’s velocity due to each unloading and SRP depend on it. Most of the time SRP is the only source of perturbing torque. During a radio astronomy science session, the spacecraft keeps constant attitude with respect to an inertial frame, therefore the angular momentum of reaction wheels only changes because of the perturbing torque, which, in turn, can be estimated if the rotation speeds of reaction wheels are known. Thrusters’ operation parameters help to estimate the magnitude of velocity change Δ v thanks to an unloading of reaction wheels. The spacecraft is not equipped with accelerometers so that nongravitational perturbations due to SRP and unloadings cannot be measured directly.
In an attempt to help improve the OD, Doppler observations with the European VLBI Network (EVN) telescopes of the RadioAstron spacecraft via its 8.4 GHz downlink signal have been conducted using the technique of Planetary Radio Interferometry and Doppler Experiments (PRIDE) led by the Joint Institute for VLBI in Europe (JIVE; Duev et al. 2012). PRIDE is designed as a multipurpose, multidisciplinary enhancement of space missions science return that is able to provide ultraprecise estimates of spacecraft state vectors based on the phasereferenced VLBI tracking and radial Doppler measurements. These can be used for a variety of scientific applications (see, e.g., Molera Calvés et al. 2014).
In this work, a new dynamical model of the RadioAstron motion and a new technique for additional utilisation of onboard measurements have been developed at KIAM. We demonstrate the quality of the improved orbital solution using PRIDE Doppler measurements of RadioAstron’s downlink signal and the impact on data processing of RadioAstron observing science data.
2. Dynamical modelling of RadioAstron spacecraft motion for orbit determination and orbit estimation pipeline
The RadioAstron mission is not an easy one for orbit determination, although OD is an important ingredient in SVLBI. For RadioAstron, the development of a consistent dynamical model of the spacecraft is associated with a number of challenges. The most important one is defined by a significant amount of solar radiation pressure exerted on the spacecraft’s surface, which produces both a perturbing acceleration and a torque. The acceleration, which has an average value of about 1.5 × 10^{7} m/s^{2}, strongly depends on the spacecraft attitude and, owing to a complicated spacecraft’s surface, has nonzero components in the direction, orthogonal to the Sun. Spacecraft dynamics are also complicated by the side effects of the stabilisation system’s operation. The spacecraft maintains constant attitude with respect to an inertial frame except for the times when the orientation is changed intentionally to, for example, repoint the spacecraft to another radio source or to cool down the receiver while not observing. Attitude stabilisation is performed by means of reaction wheels. External torque leads to gradual buildup of angular momentum of reaction wheels and its subsequent unloading via stabilisation thrusters. Unloadings generally occur one to two times per day and produce a change in velocity of the spacecraft centre of mass of 3–5 mm/s in magnitude at a time. Both perturbations due to SRP and to unloadings of reaction wheels can be a source of significant orbital inaccuracy and require proper modelling.
The newly developed dynamical model of RadioAstron spacecraft motion is described in Appendix A. The orbit estimation pipeline is presented in Appendix B.
3. Testing the improved orbit
The approach described in Appendices A and B was applied to an orbital arc of RadioAstron spanning from February 20 to April 10, 2013. In the middle of this interval, a number of SVLBI observations were carried out, providing a test case for the orbital solution quality.
The joint RadioAstronEVN experiment GK047A was aimed at fullpolarisation SVLBI imaging of the highredshift quasar 0642+449 at 1.6 GHz as a part of the RadioAstron early science programme. These observations were conducted from 10:00 UTC, 2013.03.09 to 01:00 UTC, 2013.03.10. Participating telescopes and observational time ranges for particular telescopes are summarised in Table 1. Although the maximum projected baseline was about 1 Earth diameter, the geocentric distance of RadioAstron during this experiment ranged from 120 000 to 190 000 km, which is more important for the purposes of this test.
Experiment GK047.
The experiment GK047A was accompanied by the simultaneous PRIDE observations at 8.4 GHz with 5 EVN stations of the RadioAstron downlink telemetry signal designated with the code GK047B. Participated stations and their observational time ranges are given in Table 1.
The orbital solution was put to the test using two independent approaches. First, the topocentric Doppler detections of the GK047B experiment were checked against model values, calculated using the improved orbit versus the values based on using the nominal orbital solution. Second, the VLBI data acquired by RadioAstron during the GK047A observational run were correlated with those of the groundbased telescopes. Similarly, two sets of model VLBI delays for RadioAstron were used, based on the nominal and the improved orbits.
3.1. Doppler observations of the RadioAstron downlink signal
For the GK047B experiment, the narrowband Doppler data processing and carrier frequency extraction were conducted at JIVE with the SWSpec/SCtracker/DPLL software developed at the Metsähovi Radio Observatory, Finland, in collaboration with JIVE^{1} (Molera Calvés 2012). The output sampling time of our Doppler detections is ten seconds.
Fig. 1
Top: observed (O) topocentric RadioAstron downlink signal carrier frequencies (thick lines) versus computed (C) model values (thin lines). Bottom: differential frequencies (observed minus computed using the nominal orbital solution). Predictions account for geometrical, instrumental (including clock offsets/rates with respect to the GPS time scale), and propagation effects. Experiment GK047A, 2013.03.0910.

Open with DEXTER
The detected topocentric frequencies of the RadioAstron’s downlink signal carrier were checked against the computed model values (see Fig. 1, top). The oneway topocentric Doppler predictions were calculated using the software package PYP (PYthon tools for PRIDE). This package coded in python programming language is based on the VINT software (Duev et al. 2012), which was considerably reengineered for the JIVE’s operational purposes. The theoretical model used for calculating predictions is described in Duev (2012).
The differential frequencies (observed minus computed) demonstrate the quality of the orbital solution used for calculating the model values (see Fig. 1, top)^{2}. In the case of the nominal orbital solution, a large offset and a significant drift of the differential frequencies are clearly seen (Fig. 1, bottom). We also note large outliers at the beginning and at the end of each scan on frequency plots that result from the RadioAstron’s transmitter requiring cooling in between the scans.
We then studied the differential frequencies for the improved orbital solution. Two cases were investigated: when predictions only account for the geometrical effects in a general relativistic sense, taking all sorts of geophysical effects into account in compliance with the IERS Conventions 2010 (Petit & Luzum 2010) and when the instrumental (including clock offsets/rates at the stations with respect to the GPS time scale) and propagation effects are considered as well. These are shown in Fig. 2 (top and bottom), respectively. The outliers mentioned above can reach ~0.2 Hz in magnitude and are therefore not seen in Fig. 2 (top), which emphasises the impact of instrumental and propagation effects on the detected frequency. These outliers were filtered out in Fig. 2 (bottom) using a simple 3σcriterion.
Fig. 2
Top: differential frequencies (observed minus computed). Predictions only take geometrical effects into account. Bottom: differential frequencies (observed minus computed). Predictions account for geometrical, instrumental (including clock offsets/rates with respect to the GPS time scale), and propagation effects. Epochs when RadioAstron’s transmitter was cooling are filtered out. Station colour codes used correspond to those from Fig. 1. Experiment GK047B, 2013.03.0910.

Open with DEXTER
Fig. 3
Signal delays (top) and rates (bottom) at stations due to propagation and instrumental effects. Experiment GK047B, 2013.03.0910.

Open with DEXTER
For each station, the topocentric geometrical Doppler predictions f_{geom}(t) (shown by thin lines in Fig. 2, top) were corrected for the instrumental effects (thermal deformation of the telescope dishes and axis offsets) and propagation in the Earth’s troposphere and ionosphere to obtain the total Doppler predictions f(t): (1)where t is time in UTC, τ_{ip} and are the total signal delays and delay rates due to instrumental effects and propagation, respectively.
Equation (1) immediately follows from the phase of an electromagnetic wave detected at a station ϕ being related to the phase of the same wave in the absence of instrumental and propagation effects ϕ_{geom} as ϕ(t) = ϕ_{geom}(t − τ_{ip}) and from frequency being a time derivative of phase.
The delay rates at stations were computed numerically using the predictions of delays due to the mentioned effects (see Fig. 3)^{3}. The results demonstrate the high accuracy of the models used in the PYP software (compare Fig. 3 (bottom) with Fig. 2 (top) and the result of taking the effects into account in Fig. 2 (bottom)).
When comparing Fig. 1 (bottom) with Fig. 2, an improvement in the orbital solution accuracy (two orders of magnitude for the velocity) is clearly seen. An offset of ~0.2 Hz in differential frequency at 8.4 GHz corresponds to an error of ~0.7 cm/s in velocity for the nominal orbit, whereas for the improved orbit it is ~1 mHz corresponding to ~35 μm/s (with σ = 3 mHz, or 0.1 mm/s).
The Doppler data gathered during these PRIDEruns were fed into the orbit estimation pipeline described in Appendix B. Two orbital solutions were obtained: the initial one – by using only the standard OD data and the improved ones by including the PRIDE Doppler observations into the OD process. Comparison of those orbits has shown a difference up to ~200 m in position and slightly above 1 mm/s in velocity. According to the comparison and also consistent with covariance analysis, the most significant part of the difference is located in the normal direction, which lies in the orbital plane orthogonal to the radial direction (see Fig. 4). As expected, the covariance matrix of the improved orbit demonstrated a significant increase of accuracy of the velocity part of the spacecraft state vector during the experiment. Semi axes of the corresponding ellipsoid (1σ level) have decreased from [0.70, 0.18, 0.39] mm/s to [0.49, 0.13, 0.31] mm/s. As for the formal estimation of positional accuracy, the use of PRIDE Doppler observations significantly improves the accuracy in the radial and binormal directions. However, error in the normal direction, which is the limiting factor for the spatial accuracy, has only decreased by 11%. In contrast to the formal assessments, the accuracy of the improved orbit is clearly demonstrated by a comparison of the observed and calculated Doppler values on both orbits. As Fig. 5 (top) shows, the initial orbit contains systematic errors in velocity up to ~0.35 mm/s and in acceleration up to ~1.1 × 10^{8} m/s^{2}. On the other hand, the improved orbit is almost free of such biases in the wellmeasured radial direction (see Fig. 5 (bottom)).
Fig. 4
Difference between orbits obtained with and without PRIDE data. Position (top) and velocity (bottom) offsets are projected on the axis of orbital reference frame: radial – green, normal – orange, binormal – blue. Reaction wheel unloading was carried out around 16:20, hence the discontinuity in velocity difference.

Open with DEXTER
Fig. 5
Oneway Doppler (Pushchino + PRIDE observations) data fit (O−C) on the initial (top) and the improved (bottom) orbital solutions.

Open with DEXTER
3.2. Correlation of SVLBI data at JIVE
The data of the experiment GK047A were correlated using the EVN Software Correlator at JIVE SFXC (Keimpema et al. 2014). The VLBI delay model used for correlating RadioAstron data differs significantly from the one used in the standard Earthbased VLBI. First, the model from Vlasov et al. (2012) is used instead of the conventional one from the IERS Technical Note 36 (Petit & Luzum 2010). This model (Vlasov et al. 2012) takes into account all terms up to O((v/c)^{3}) order and includes all terms that depend on acceleration of both the Earth and the spacecraft. It provides a betterthan1ps accuracy of delay prediction for the case where one antenna is orbiting the Earth at a distance comparable to that of the Moon.
Second, as mentioned above, the RadioAstron data are not recorded on board, but rather streamed down by the 15 GHz link to a tracking station. Because of a hardware problem, timestamp information in the data stream is lost (Anderson 2012). Therefore, the first frame of a scan gets locked to the local oscillator (LO) at the receiving station, after which the signal is treated simply as a byte stream. Thus the light travel time LT_{SG} from the RadioAstron to the Ground receiving station has to be subtracted from the precalculated delays for RadioAstron in the TT time scale^{4} for each of the scan start times. Instrumental and propagation delays are included in LT_{SG}. We note that the ionospheric delay here is calculated for the frequency of 15 GHz, because RadioAstron downstreams data at this frequency.
Fig. 6
Improved versus nominal orbital solution: difference in measured residual delays (blue dots) compared to the difference in modelled delays (green dots) (top) and their double difference (bottom). Baseline Effelsberg – RadioAstron. Experiment GK047A, 2013.03.0910.

Open with DEXTER

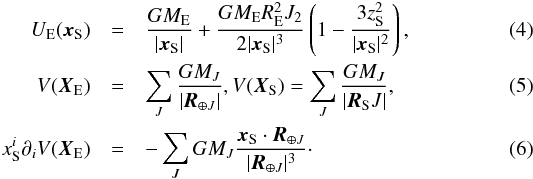

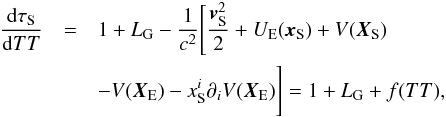

Third, one needs to account for the gravitational redshift (Anderson 2012). In the framework of the IAU resolutions (Petit & Luzum 2010), the proper time τ_{S} of a spacecraft located at the position x_{S} and having the coordinate velocity v_{S} in the geocentric celestial reference system (GCRS) can be transformed into the TT time scale (2)where for brevity we introduced the function (3)Here, L_{G} = 6.969290134 × 10^{10}, t_{0} is the start epoch of a scan, U_{E} is the Newtonian potential of the Earth at x_{S} in the geocentric system GCRS, V the sum of Newtonian potentials of the other bodies (mainly the Sun and the Moon), either at the Earth’s centre of mass X_{E} or at the spacecraft location X_{S} in the barycentric celestial reference system BCRS: Here R_{⊕ J} and R_{SJ} are the vectors from the Jth gravitating body to the geocentre and to the spacecraft, respectively: To account for the redshift, one needs to integrate Eq. (2) over a scan span time, which yields (9)The final formula for the delay ΔT in the TT frame to be fed into the correlator is given by the following equation: (10)The fringes on groundspace baselines were detected using the delay model for RadioAstron described above. Both delay sets calculated using the nominal and the improved orbital solutions yielded strong fringes. The results of the crosscorrelation were fringefitted using the AIPS software (Greisen 2003), as well as the software tools, developed at JIVE. The residual clock offsets and clock rates, as free parameters, were removed from both of the solutions. The difference in measured residual delays was compared to the difference in modelled delays. The results of this comparison are shown in Fig. 6 (top) for the baseline Effelsberg – RadioAstron. The observed and the computed values show good agreement demonstrated by the double difference, which is presented in Fig. 6 (bottom).
Although in this particular case the improved orbit is not critical, it will be useful for weaker sources, when a considerable “clock acceleration” does not allow using longer integration times to detect fringes.
4. Discussion and conclusions
We have presented a new approach to orbit determination of the RadioAstron spacecraft. When applied utilising multistation Doppler tracking data, it provided a significant improvement in the accuracy of the orbital solution, which was demonstrated and validated using both Doppler and VLBI measurements. However, we need to point out that the positional accuracy of RadioAstron can be improved further if one includes the VLBI observations of the RadioAstron downlink signal (in addition to Doppler and other measurements used currently) in the orbit determination process. Several technical problems have to be solved in that concern, with the first one being continuous tracking of spacecraft by ground telescopes. The spacecraft’s angular motion on the celestial sphere is quite fast and can even be antisidereal. Therefore, if tracking is not continuous, i.e. the telescopes are repointed every few seconds^{5}, the spacecraft will constantly move out of the primary (synthesised) beam of the interferometric array. Although the spacecraft signal will still be detected via the side lobes, this will result in “glitches” when deriving the group delay of the observed signal at times when the telescopes are repointed. These can reach several nanoseconds in magnitude, practically eliminating the benefit of using such data.
Further improvement of the state vector determination accuracy, in addition to scientific applications of the RadioAstron mission mentioned in the introduction, will be beneficial for an initiative to measure the gravitational redshift of frequency Δf experienced by an electromagnetic wave travelling in a region of space with varying gravitational potential (Misner et al. 1973). Precise measurement of this quantity will make it possible to achieve a better constraint on the value of the postNewtonian parameter γ, which is equal to unity in general relativity, but which deviates from it slightly in alternative models. Accurate Doppler measurements of the RadioAstron’s downlink signal might play an important role in such an experiment (for details, see Biriukov et al. 2014). To demonstrate the achievable precision, we performed the following test. The filtered differential frequency time series from Fig. 2 (bottom) for each station were smoothed to suppress shortterm variations, then the mean values were subtracted from the data and a weighted average over all stations was computed. The residual Doppler noise is on average at the level of 10–20 μm/s in 250 s (see Fig. 7). This sets a limit for the accuracy of experimental determination of γ at the level of 1.8 × 10^{5} over ~1000 h if no noisecompensation scheme is used. In case such a scheme is utilised, the accuracy can be improved by an order of magnitude (Biriukov et al. 2014), which is comparable to or even better than the result obtained using Cassini spacecraft tracking during solar conjunction (Bertotti et al. 2003).
Another important issue in this context is the accuracy of clock offset time series provided by the stations. Usually, these are given with a time resolution of one day with a typical rounding error of ~1 ns. This is sufficient for using these data for their main purpose – as a priori values when searching for the clock parameters (offset and rate) of stations with respect to a reference station when performing the VLBI correlation. However, such accuracy can result in a significant error in the calculated delay rates used in the Doppler analysis, where absolute values are used. For instance, the differential frequency offset for station Medicina clearly seen in Fig. 2 (bottom, green dots), is at the level of 3 mHz, which corresponds to a delay rate of 0.3 ps/s, which in turn could be easily explained by an insufficient accuracy of the time series of the nominal Hmaser versus GPS clock offsets. Therefore, we suggest that stations keep clock offset time series with a denser time resolution and with more digits in the readings.
Fig. 7
Residual Doppler noise. Experiment GK047B.

Open with DEXTER
Wagner, J., Molera Calvés, G. and Pogrebenko, S.V. 2009–2014, Metsähovi Software Spectrometer and Spacecraft Tracking tools, Software Release, GNU GPL, http://www.metsahovi.fi/en/vlbi/spec/index
Detailed description of the models used at this stage is given in Duev et al. (2012).
The terrestrial time TT is the theoretical timescale for clocks at sealevel. It differs by 32.184 s from the international atomic time scale TAI, the only physically realised timescale. The latter, in turn, differs by a number of leapseconds from the timescale used for timing measurements at stations – the coordinated universal time UTC. There is only an offset between these time scales, but no rate.
Acknowledgments
We would like to express our gratitude to the referee M. Reid (HarvardSmithsonian Center for Astrophysics) for useful and constructive suggestions. The EVN is a joint facility of European, Chinese, South African, and other radio astronomy institutes funded by their national research councils. The authors would like to thank the personnel of the participating stations: P. de Vicente (Yebes), J. Quick (Hartebeesthoek), G. Kronschnabl (Wettzell), R. Haas (Onsala), A. Orlatti (Medicina), A. Ipatov, M. Kharinov, and A. Mikhailov (Svetloe of the KVAZAR network). We would also like to thank K.V. Sokolovsky and Y.Y. Kovalev (ASC RAS) for assistance. R.M. Campbell, A. Keimpema, and P. Boven of JIVE provided important support to various components of the project. G. Cimò acknowledges the EC FP7 project ESPaCE (grant agreement 263466). T. Bocanegra Bahamón acknowledges the NWO–ShAO agreement on collaboration in VLBI.
References
 Anderson, J. M. 2012, in DiFX Annual Meeting, held 24 September 2012 in Sydney, Australia [Google Scholar]
 Bertotti, B., Iess, L., & Tortora, P. 2003, Nature, 425, 374 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Biriukov, A. V., Kauts, V. L., Kulagin, V. V., Litvinov, D. A., & Rudenko, V. N. 2014, Astron. Rep., 58, 783 [NASA ADS] [CrossRef] [Google Scholar]
 Duev, D. A. 2012, Ph.D. Thesis, Lomonosov Moscow State University, Russia [Google Scholar]
 Duev, D. A., Molera Calvés, G., Pogrebenko, S. V., et al. 2012, A&A, 541, A43 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Greisen, E. W. 2003, Information Handling in Astronomy – Historical Vistas, Astrophys. Space Sci. Lib. (Dordrecht: Kluwer Academic Publishers), 285, 109 [NASA ADS] [CrossRef] [Google Scholar]
 Gurvits, L. I. 1991, in Frontiers of VLBI, eds. H. Hirabayashi, M. Inoue, & H. Kobayashi (Universal Academy Press), 187 [Google Scholar]
 Kardashev, N. S., Khartov, V. V., Abramov, V. V., et al. 2013, Astron. Rep., 57, 153 [NASA ADS] [CrossRef] [Google Scholar]
 Keimpema, A., Kettenis, M. M., Pogrebenko, S. V., et al. 2014, Exp. Astron., in press [Google Scholar]
 McCarthy, D. D., & Petit, G. 2004, IERS Technical Note # 32 [Google Scholar]
 Misner, C. W., Thorne, K. S., & Wheeler, J. A. 1973, Gravitation (W.H. Freeman and Company) [Google Scholar]
 Molera Calvés, G. 2012, Ph.D. Thesis, Aalto University, Finland [Google Scholar]
 Molera Calvés, G., Pogrebenko, S. V., Cimò, G., et al. 2014, A&A, 564, A4 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Motenbruck, O., & Gill, E. 2001, Satellite Orbits: Models, Methods, and Applications (Springer) [Google Scholar]
 Petit, G., & Luzum, B. 2010, IERS Technical Note # 36 [Google Scholar]
 Standish, E. M. 1998, JPL Planetary and Lunar Ephemerides DE405/LE405 [Google Scholar]
 Vlasov, I. Y., Zharov, V. E., & Sazhin, M. V. 2012, Astron. Rep., 56, 984 [NASA ADS] [CrossRef] [Google Scholar]
Appendix A: Dynamical model of RadioAstron motion
Description of the RadioAstron dynamical model.
The motion of the centre of mass of RadioAstron is considered passive between adjacent unloadings. The force model, which was used in corresponding equations of motion on passive arcs, is reflected in Table A.1. We only go into detail about the SRP model, since the models of other perturbations are fairly common (see, e.g., Motenbruck & Gill 2001). The SRP model is based on the analytical calculation of solar flux pressure, which is divided into absorbed, reflected specularly and reflected diffusely parts. Net SRP is calculated by integration over a simplified spacecraft surface. The model surface consists of the parabolic antenna of the space radio telescope (SRT), spacecraft bus, and solar panels (see Fig. A.1). As in a socalled boxwing model, the surfaces of spacecraft bus and solar panels are flat rectangles. The SRT surface is split into multiple flat elements in order to take the shadowing from other parts of the spacecraft into account.
Reflectivity and specularity of the corresponding surfaces are used as the parameters of the model. Since the spacecraft bus and the illuminated parts of SRT are covered with a multilayer insulation (MLI), the optical properties of these surfaces were believed to be the same. For solar panels, in order to avoid correlation between the parameters, the specularity value was set to unity. Thus the SRP model is adjusted by means of three parameters: specularity μ_{1} and reflectivity α_{1} of MLI and reflectivity α_{2} of the solar panels. It is noteworthy that the model also allows estimating perturbing SRP torque, as far as the simplified surface only consists of flat elements with known coordinates of centres of pressure with respect to the centre of mass.
The effect of an unloading of reaction wheels on the spacecraft motion is incorporated into the dynamical model because the instantaneous velocity increment Δv occurred at a known time. The whole process of unloading of reaction wheels takes less than a couple of minutes and consists of several firings of stabilisation thrusters. The time of Δv application is calculated as a weighted average of the times of firings during the unloading. In this approach, the impact of unloadings can be described with a set of pairs of application times and velocity increments. While times t_{i} are considered to be known accurately enough, the corresponding Δv_{i} are assumed to be the parameters of the dynamical model to be refined in the course of the OD process.
Fig. A.1
Simplified model of the spacecraft surface: SRT antenna, spacecraft bus, solar panels (left panel). Permissible attitude of the spacecraft with respect to the Sun prevents the sunlight from getting to the antenna (Gurvits 1991). Therefore, a complex shadowing occurs only on the SRT antenna surface (right panel; the spacecraft is illuminated from the bottom right corner).

Open with DEXTER
Appendix B: Orbit estimation pipeline
The RadioAstron orbit determination process uses a leastsquares algorithm, in which parameters of dynamical and measurement models are iteratively adjusted to provide the best fit of the given tracking data. The dynamical parameters comprise the initial state vector (position and velocity) of the spacecraft, parameters of the SRP model and velocity increments due to ith unloading of reaction wheels (with a total of n unloadings for one orbital arc). Among the parameters of the measurement model are perpass range biases and a constant spacecraft clock offset rate that is causing a shift in oneway Doppler observables. These parameters are determined using orbital arcs of up to 50 days long.
Onboard measurements provide additional estimates of the parameters of unloadings using attitude data, thrusters’ operation parameters, and the measured values of the unloaded angular momentum of reaction wheels. We tried to keep the dynamical parameters of the model as close as possible to those estimates by adding the following term to the functional to be minimised (B.1)where P_{i} is a weight matrix for . The matrix is calculated under an assumption that the direction of the estimated vector is determined with rather small errors. It is true in the case of RadioAstron since the spacecraft holds its attitude during unloading. The weight matrix is therefore given as follows (B.2)where e_{i} is the nominal direction of Δv_{i}, σ_{v} and σ_{d} are the corresponding errors along e_{i} and orthogonal to it (magnitude and direction errors), E is the identity matrix. Values for determining the weight matrix deviations are selected to correspond to a 3% error of  Δv_{i}  magnitude estimation and a 0.5 degree error in direction estimate.
Measurements of the rotation speeds of reaction wheels, hence the angular momentum of the system, allow us to not only verify Δv_{i} due to unloadings, but also to estimate the external torque, which is mostly caused by SRP, and to calibrate the SRP model. Torque measurements are performed, while the spacecraft is at a constant attitude, such as during observations and on altitudes higher than 10^{5} km in order to diminish the effect of Earthrelated torques, like gravitational torque. These measurements are used along with the standard tracking data in the OD process with the following residuals, whose weighted squares are making the corresponding addition to the functional to be minimised: (B.3)Equation (B.3) is written in a spacecraft fixed reference frame, L(t) is the measured angular momentum of the reaction wheels, (t_{1},t_{2}) a timespan of an observation, M the computed SRP torque depending on the Sun distance R_{⊙}, spacecraft attitude Λ, and parameters of the model α_{1}, μ_{1} and α_{2}. Additional data provided by torque measurements contribute to the accuracy of the SRP model and also significantly reduce the correlation between the parameters of the model.
