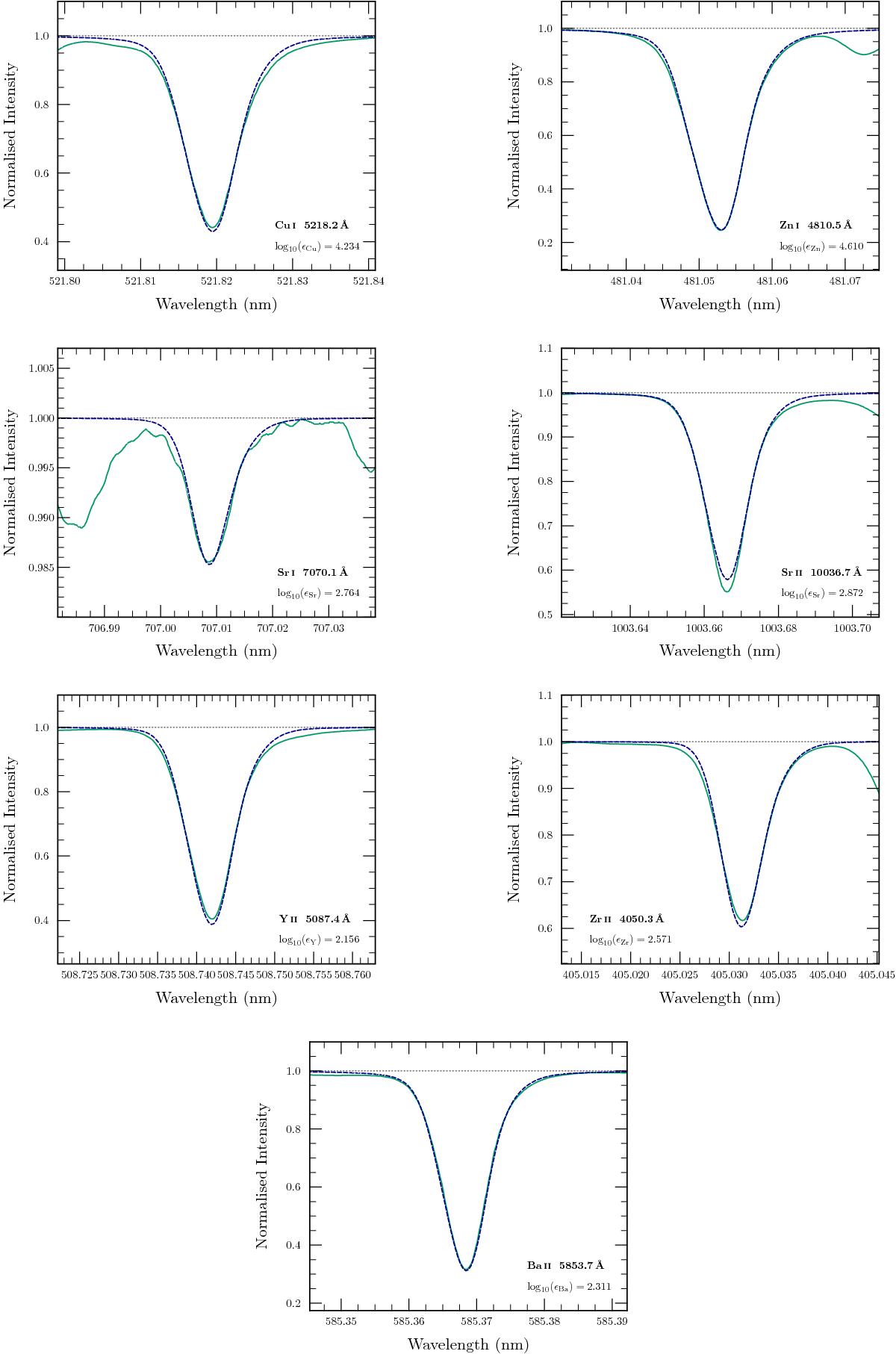

Fig. 1


Example spatially and temporally averaged, disc-centre synthesised line profiles (blue dashed), shown in comparison to the observed FTS profile (solid green). The solar gravitational redshift was removed from the FTS spectrum. The synthesised profiles have been convolved with an instrumental sinc function and fitted in abundance; wavelength and intensity normalisations have been adjusted for display purposes. Note that the plotted profiles are the 3D LTE ones, whereas the quoted abundance in each panel accounts also for the predicted 1D NLTE correction (if available).

This figure is made of several images, please see below:
