Fig. 28

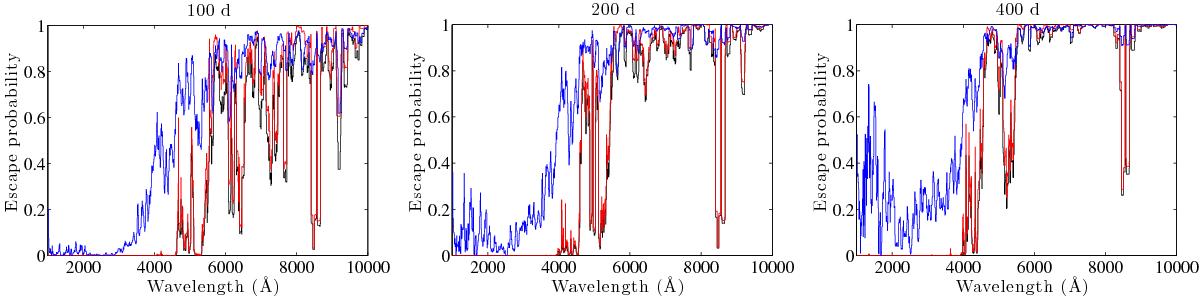

Escape probability for a photon to pass through 3500 km s-1 of core material (model 13G), at 100 (left), 200 (middle), and 400 (right) days (black). Also plotted are escape probabilities with respect to passage through the Fe/Co/He and Si/S clumps (red) and the O/Si/S, O/Ne/Mg, and O/C clumps (blue).

This figure is made of several images, please see below:
