Planck 2013 results
Free Access

Fig. 11

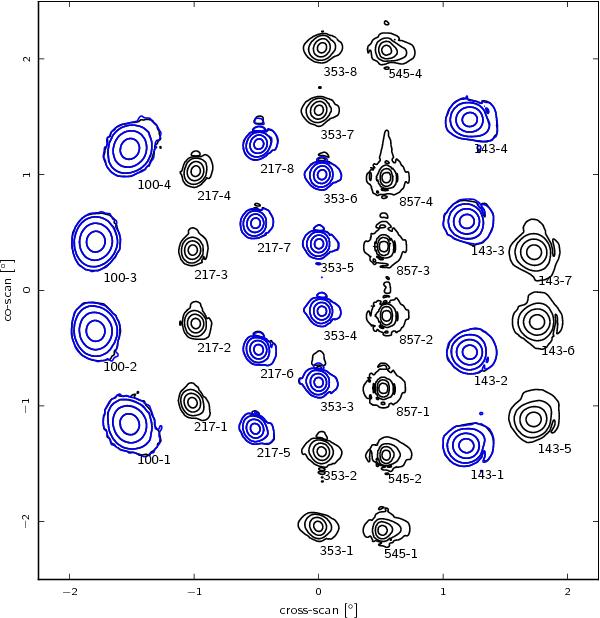

Scanning beam patterns reconstructed from planet observations at their respective positions in the HFI focal plane. The contours are plotted at −3, −10, −20, and −30 dB from the peak of each beam. Polarization-sensitive bolometers are indicated as a pair of contours, one black and one blue (in most cases the underlying black contour is invisible, indicating essentially identical beam shapes).
