Planck 2013 results
Free Access

Fig. 3

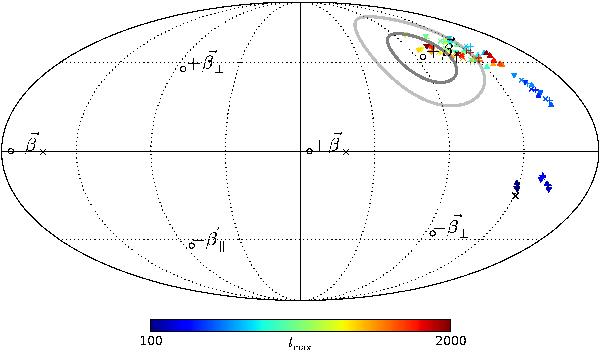

Measured dipole direction in Galactic coordinates as a function of the maximum temperature multipole used in the analysis, max. We plot the results for the four data combinations discussed in Sect. 4: 143 × 143 ( symbol); 217 × 217 ( symbol); 143 × 217 (× symbol); and 143 + 217 (+ symbol). The CMB dipole direction β has been highlighted with 14° and 26° radius circles, which correspond roughly to our expected uncertainty on the dipole direction. The black cross in the lower hemisphere is the modulation dipole anomaly direction found for WMAP at max = 64 in Hoftuft et al. (2009), and which is discussed further in Planck Collaboration XXIII (2014). Note that all four estimators are significantly correlated with one another, even the 143 × 143 and 217 × 217 results, which are based on maps with independent noise realizations. This is because a significant portion of the dipole measurement uncertainty is from sample variance of the CMB fluctuations, which is common between channels.
