Fig. 8

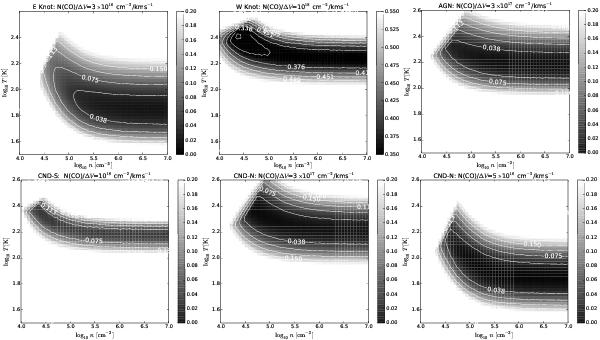

χ2 fit results from the RADEX CO simulations of the excitation conditions within the E Knot (top left), W Knot (top middle), AGN (top right), CND-S (bottom left) and CND-N (bottom middle and right).

This figure is made of several images, please see below:
