Fig. 7

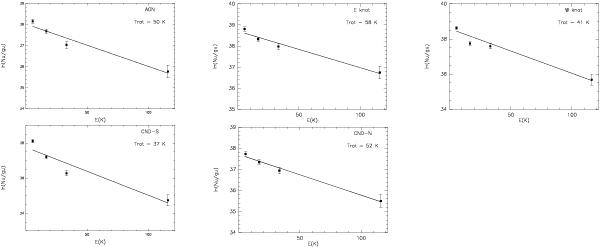

Rotation diagrams for CO in the AGN (top left); E Knot (top middle); W Knot (top right); CND-S (bottom left); CND-N (bottom right). The black solid squares show the data with error bars, which correspond to those of the integrated intensities (errors are of the order of 10–30%).

This figure is made of several images, please see below:
