Fig. 10

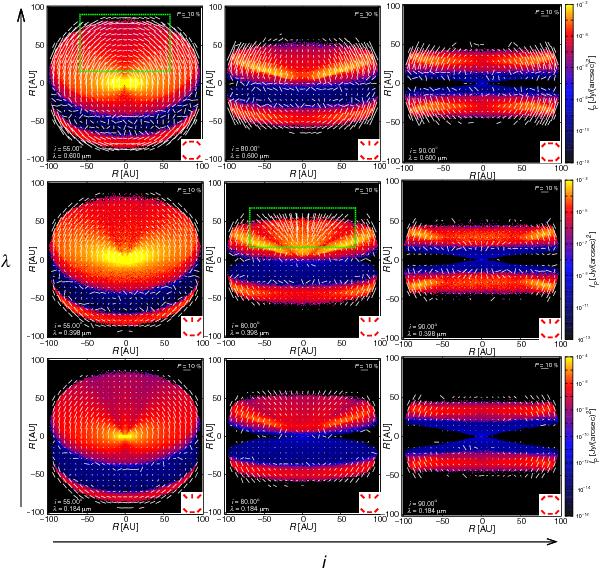

Maps of the linear polarization Ip for disks with Mdust = 10-4 M⊙. The wavelengths λ and disk inclinations i are chosen to illustrate the reversal of the polarization vector in selected disk regions with increasing inclination and/or wavelength. The particles are compact spheres made of astronomical silicate. In the bottom right of each panel a sketch of the polarization pattern is plotted to distinguish whether a polarization reversal exists or not. The green box in the two single panels exemplarily indicates these cases.
