Fig. 14

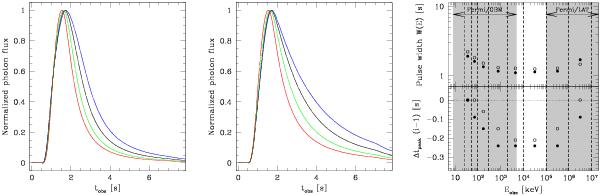

Impact of the shape of the injected kinetic power in the outflow. Left and middle panels: normalized light curves corresponding to the 4 BATSE energy channels for Case B computed by assuming a constant ejected mass flux rather than a constant injected kinetic power Ė (see text) and a constant (left) or varying (middle) accelerated electron fraction (see text). Conventions are the same as in Fig. 1. Right panel: pulse width and pulse maximum position as a function of energy for the same cases (filled circles: constant ζ; open circles: varying ζ). The shaded regions and lines have the same meaning as in Fig. 3.
