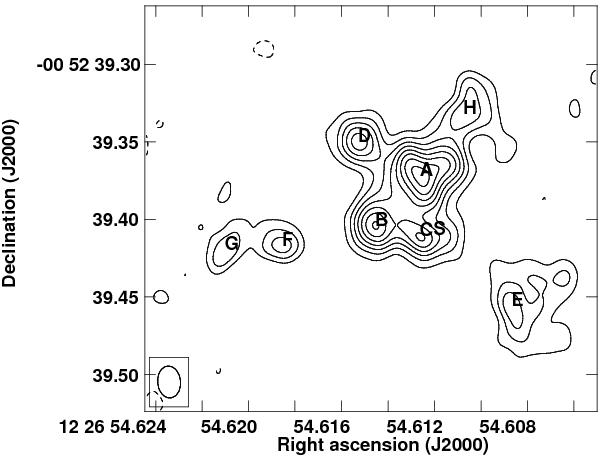

Fig. 2

EVN and MERLIN 5 GHz image of NGC 4418 with relative weight 1.0 between the EVN and MERLIN data. The contour levels are (−2,2,4,6,8,10,12,14,16) times the rms noise of σ = 90 μJy/beam. Eight compact features are visible above 5σ labelled from A to H. The label S (close to label C) corresponds to the 860 μm continuum peak position from Sakamoto et al. (2013). The CLEAN restoring PSF of FWHM 20.6 mas×14.8 mas is plotted in the lower left corner.
