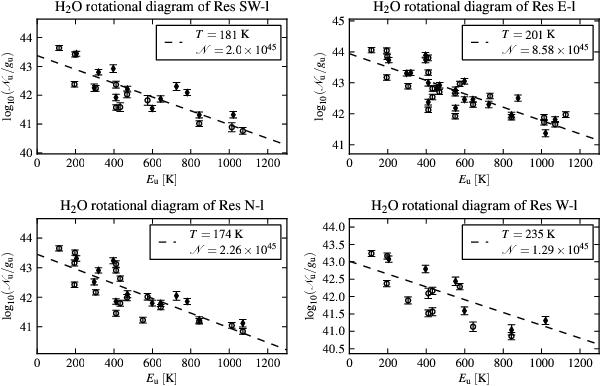

Fig. 17
H2O
rotational diagrams for the residual emission of the extended regions Res SW-l,
Res E-l, Res N-l, and Res W-l. Ortho lines are marked with open circles and para
lines with filled diamonds.
is the total number of H2O molecules in each source given the rotational
fit.
