Fig. 11

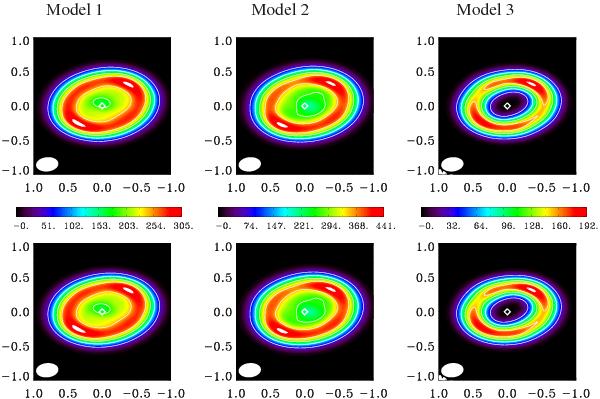

Results of H2CO abundance models: integrated intensity maps convolved with the ALMA beam for Model 1 at 10-8 abundance (left), Model 2 at 10-4 fractional abundance of CO (center) and Model 3 at 10-8 abundance (right). The color bar gives the flux scale in mJy beam-1. The white contours indicate the 20%, 40%, 60%, 80% and 100% of the peak. The top panel gives the result for the non-altered model image, the bottom panel gives the result with a correction for the continuum extinction.
