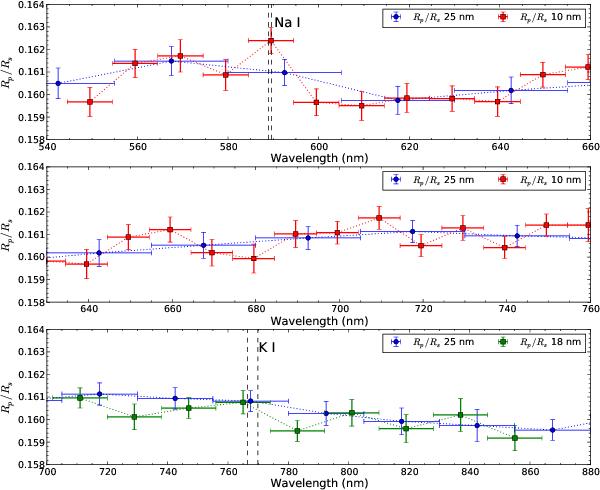

Fig. 10


Transmission spectrum of WASP-43b. The horizontal bars represent the width of the filters used to bin the spectrum and the vertical error bars represent the errors found by the MCMC procedure and the β factors to take into account the red noise. The gray line shows the extracted spectrum of WASP-43 in an arbitrary scale. Top panel: zoom to the Na i doublet region showing the results of the 25 nm (blue points) and 10 nm (red points) width filters; middle panel: same for the region between the Na and K lines; bottom panel: K i doublet region showing the 25 nm and 18 nm filter results.
