Fig. 5

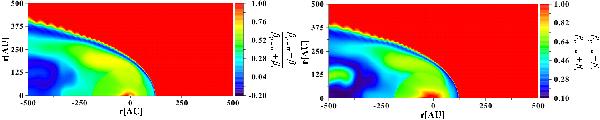

Ratios as defined in Eq. (36). The left panel shows the ratio for hydrogen while the right panel presents the ratio for singly ionized helium. Positive values indicate that the charge exchange process (H + H+ → H+ + H) dominates, while for negative values the electron impact is more relevant. Note the different scales in the color bars.

This figure is made of several images, please see below:
