Fig. 7

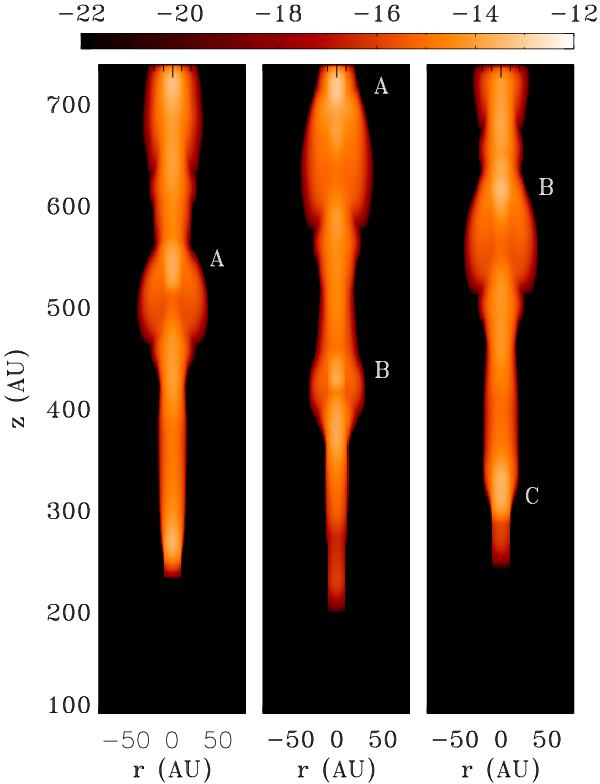

Logarithmic maps of the surface brightness of the forbidden doublet [S ii], convolved with the PSF, for the three moments shown in Fig. 4. The image is in units of erg cm-2 arcsec-2 s-1 and has been projected with a declination angle of 80° with respect to the line of sight. The knots are labeled with letters.
